AR68.30-P-4782QBS Remove/Install Paneling Belt In Rear



AR68.30-P-4782QBS Remove/Install Paneling Belt In Rear
- with CODE (P98) Black Series

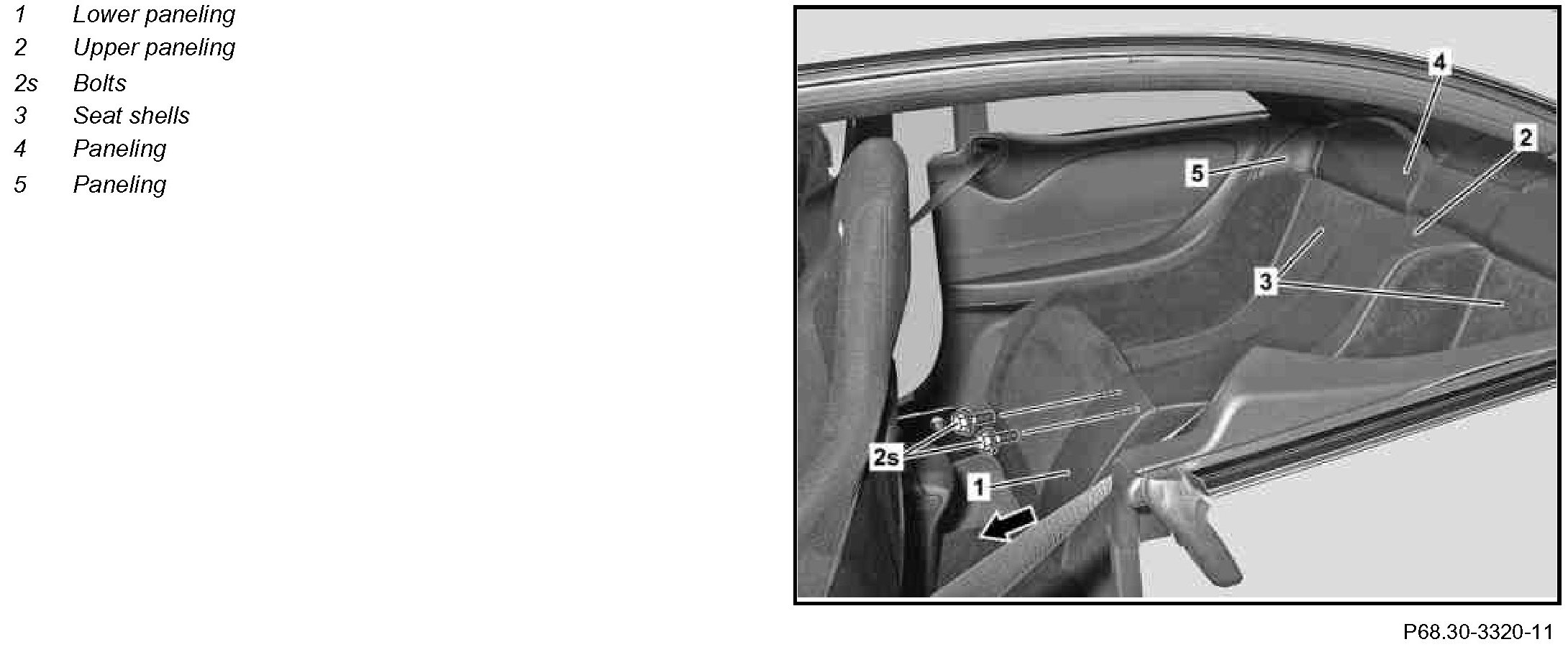

Component Identification:

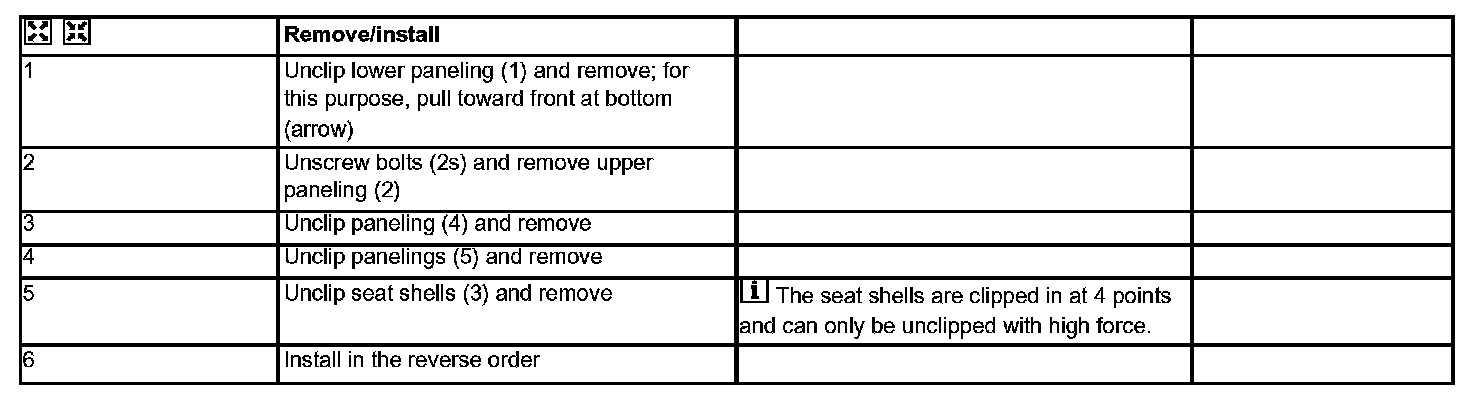

Steps 1 - 6:
