Interior - Glove Compartment Door Noisy

Date: September 20, 2006
Order No.: P-B-68.10/42a
Supersedes: P-B-68.10/42 dated November 9, 2005
Group: 68

Revision History

Revision Date Purpose

a 9/20/06 Applicable VIN Range Added
- 11/9/05 Initial issue

SUBJECT:
Model 209.356/365/375/376/456/465/475/476, Up to VIN F202989 and T073217

Glove Compartment Lid Noisy

If you receive customer reports in the above model vehicles that the glove compartment lid makes a creaking noise on rough road surfaces, the actuator for the glove compartment illumination micro switch may have rubbed off the flocked coating at the contact point on the glove compartment lid. Replacing the glove compartment lid will not be a long lasting repair. To resolve, perform the following.

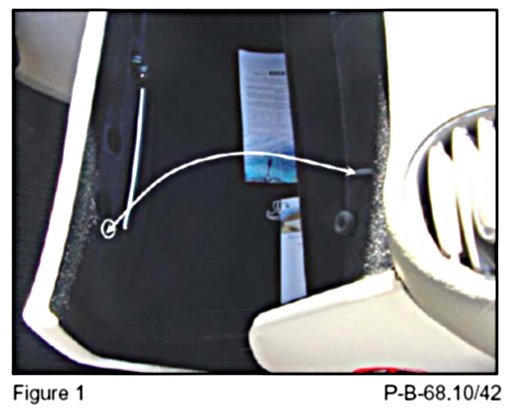

1. Drill a 4.5 mm diameter hole in the center of the area (Figure 1, circle) where the flocked coating has rubbed off.

2. Insert a plug into the drilled hole.

Parts Information





Note:
The allowable labor operations shown should be used when submitting a warranty claim for this repair.

In Case of Warranty





Operation: Noise - glove box lid, rectify (02-5061)
