AZ82.20-P-0001Q Retrofit Illuminated Door Sill Molding

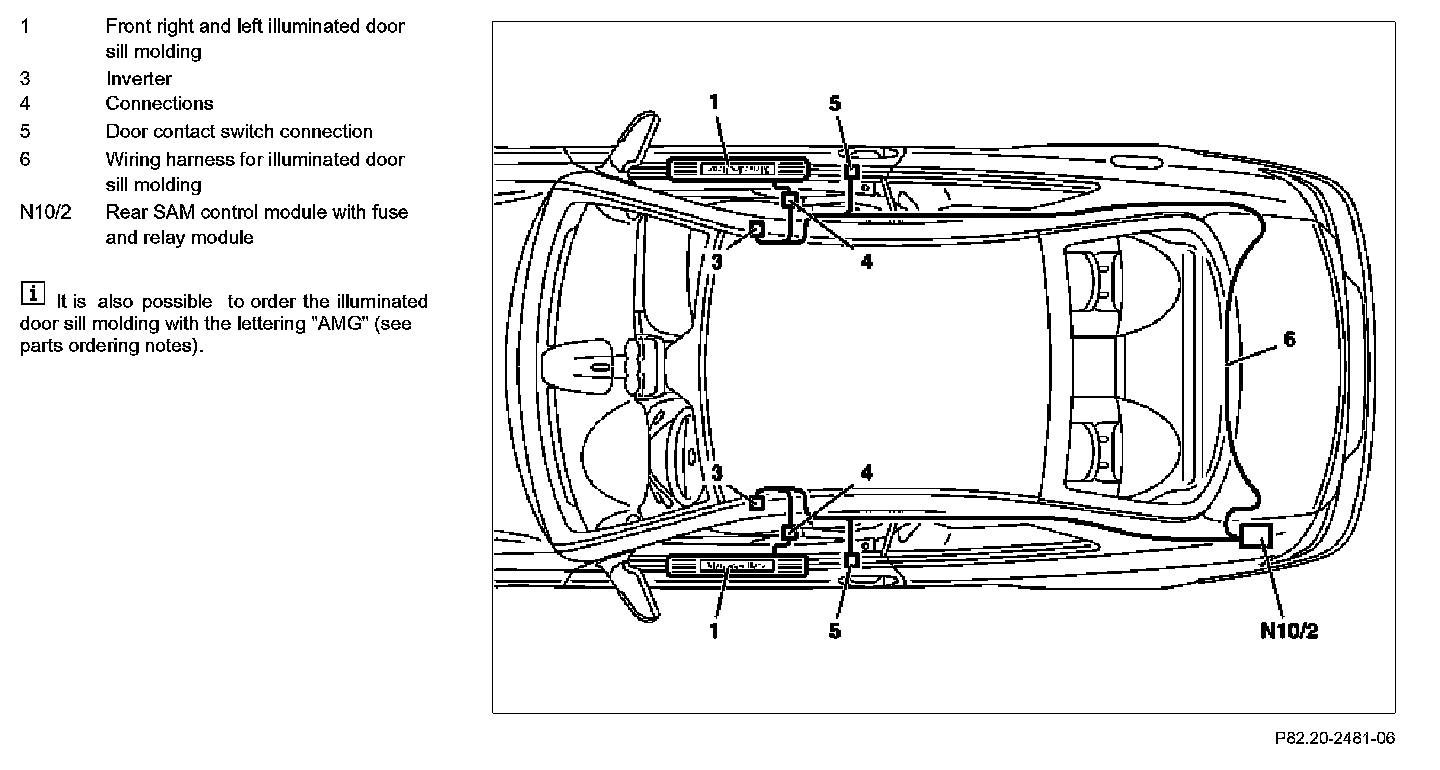

Component Identification:

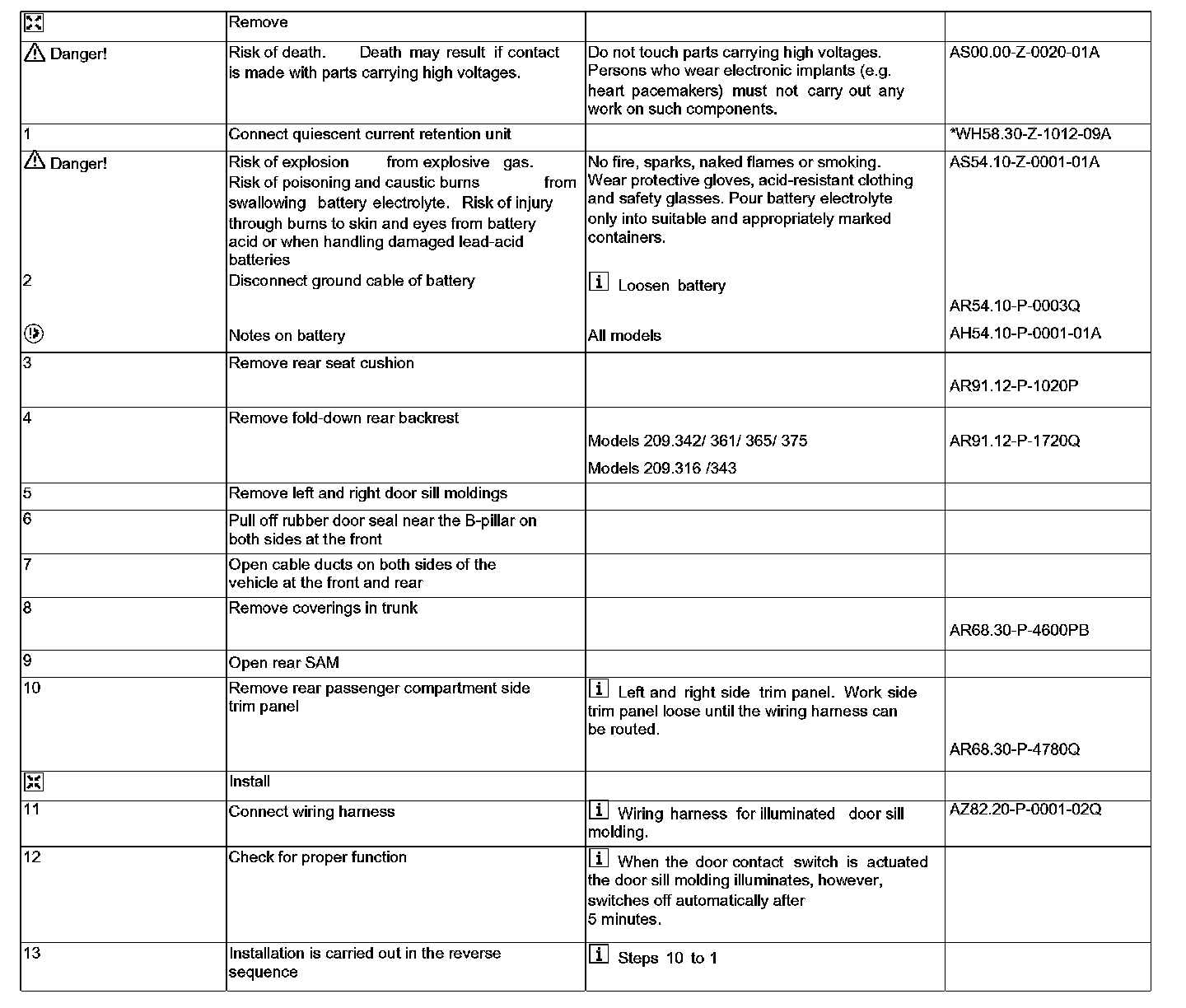

Steps 1 - 13:

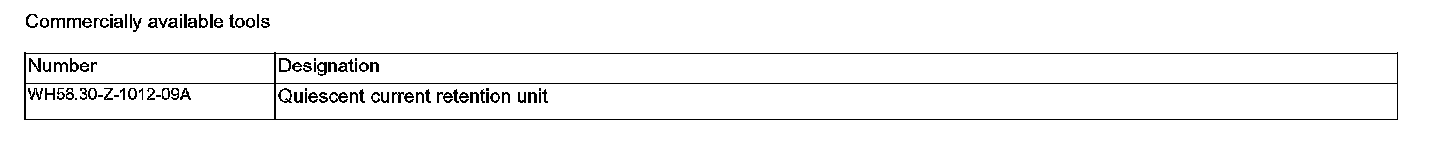

Commercially Available Tools:

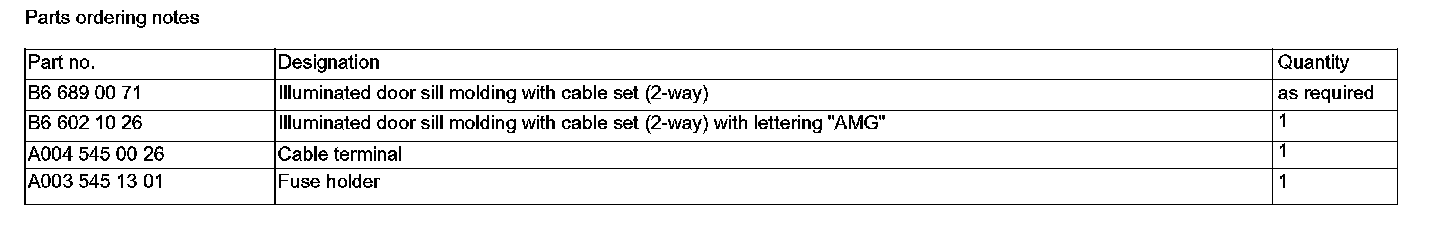

Parts Ordering Notes:
