AR54.18-P-0020Q Install Headliner Wiring Harness
AR54.18-P-0020Q Install Headliner Wiring Harness
AR54.18-P-0020Q Install
Headliner
Wiring Harness

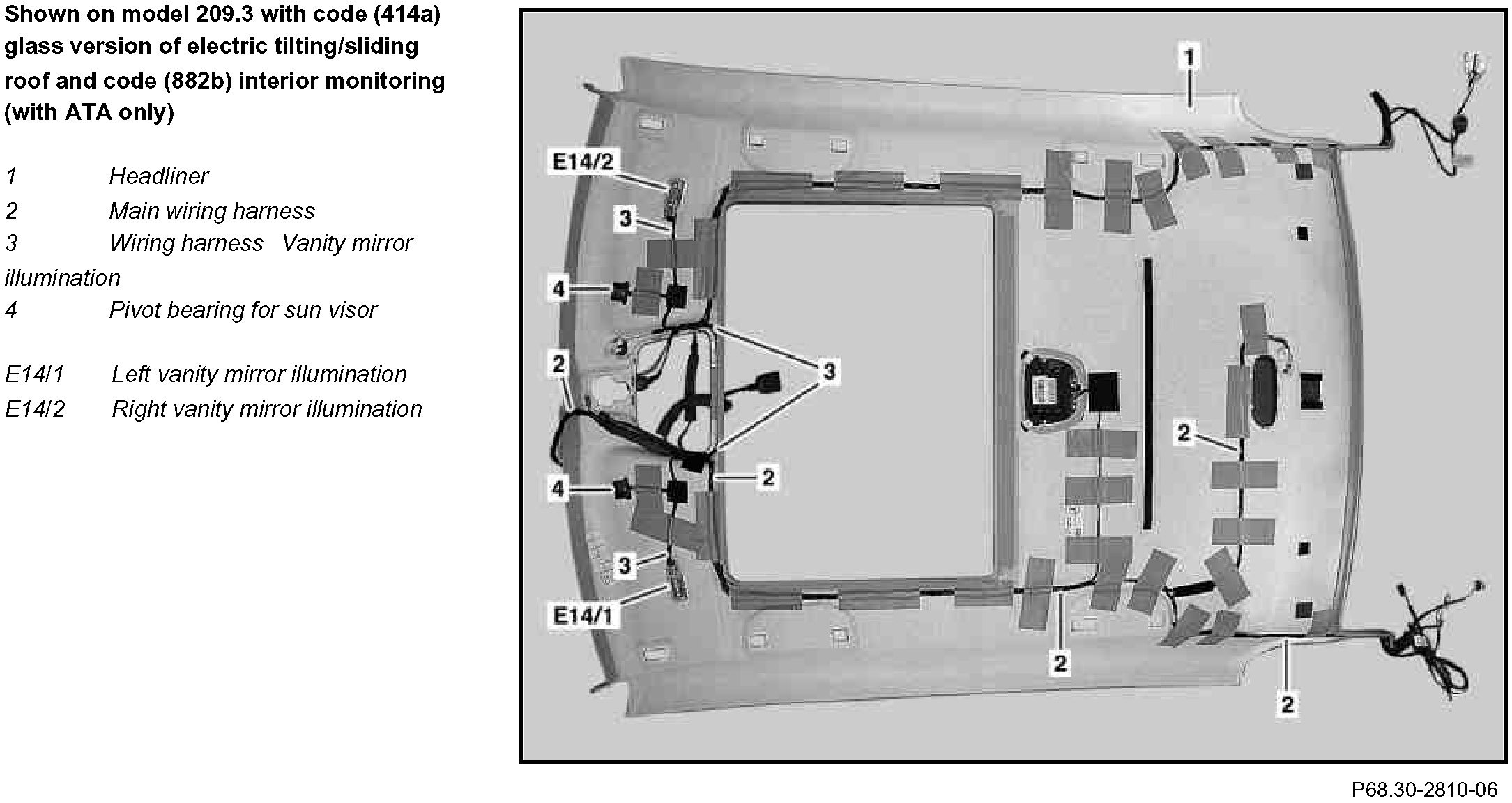

Component Identification:

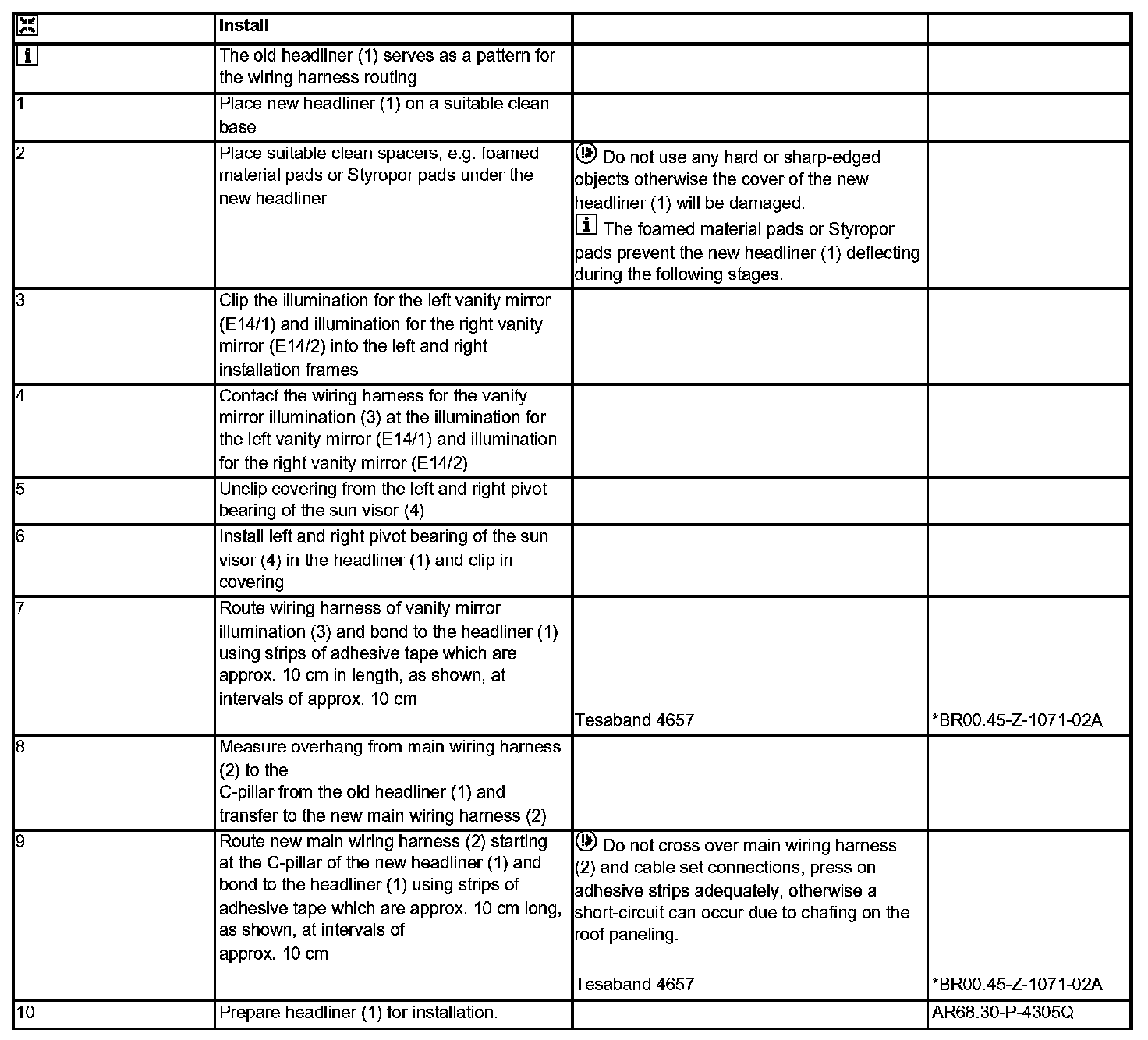

Steps 1 - 10:

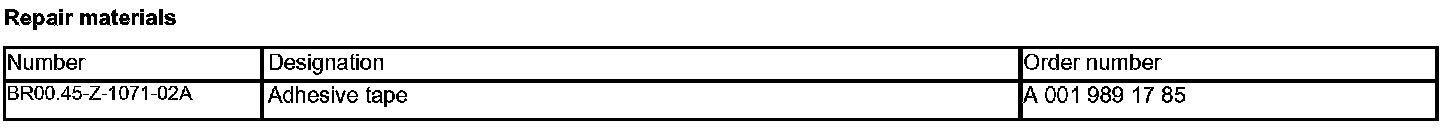

Repair Materials:
