Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair >> AR68.10-P-1507Q Remove/Install Bottom Section of Instrument Panel on Front Passenger's Side

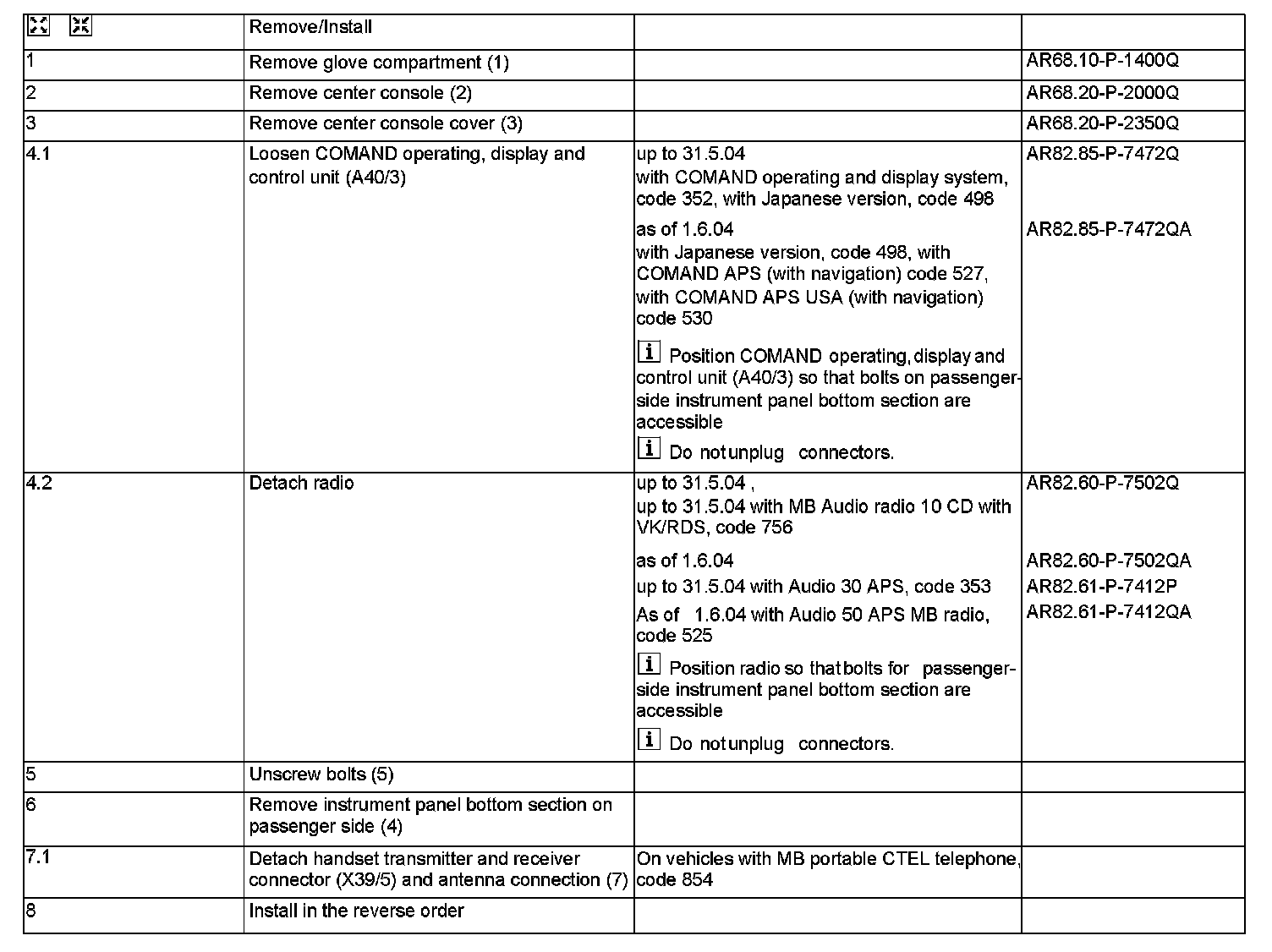

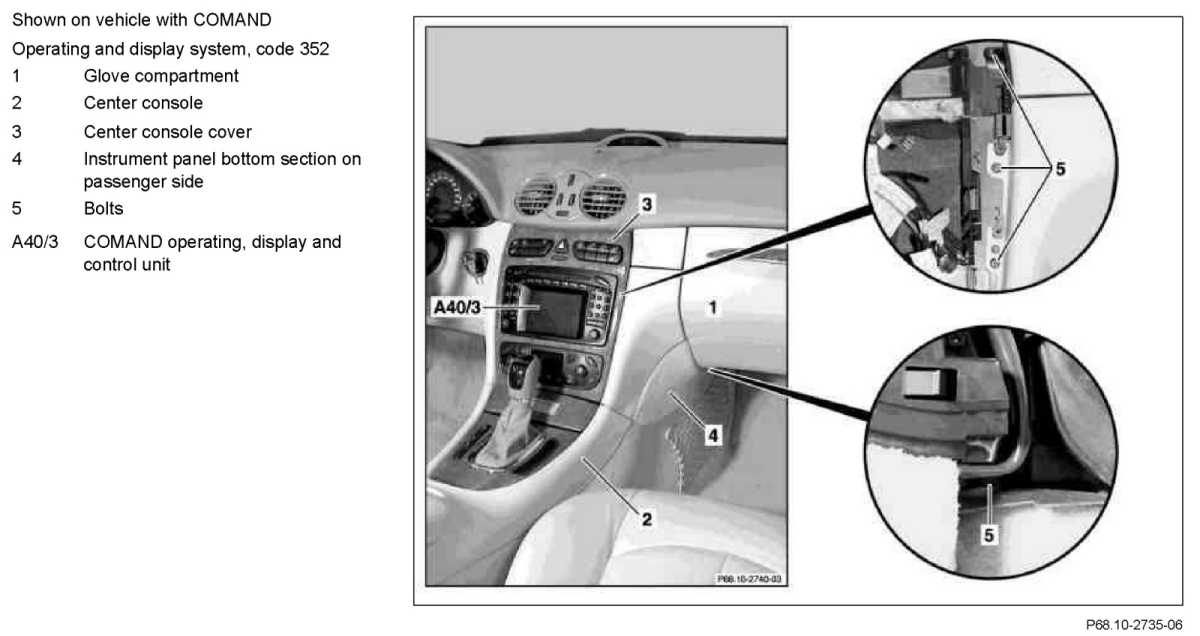

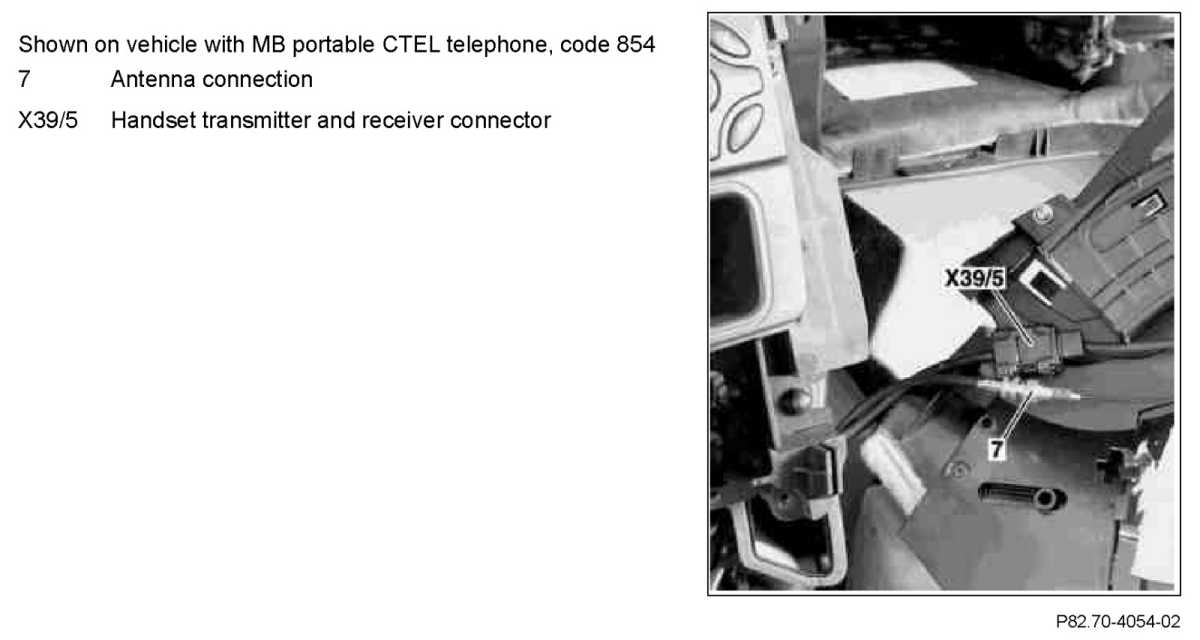

AR68.10-P-1507Q Remove/Install Bottom Section of Instrument Panel on Front Passenger's Side



AR68.10-P-1507Q Remove/Install Bottom Section of Instrument Panel on Front Passenger's Side

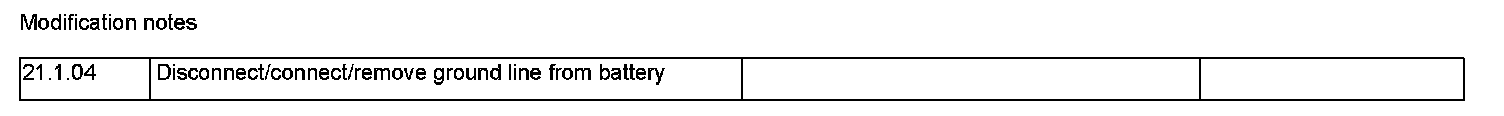

Modification Notes:
