Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Removal and Replacement >> AR68.20-P-2310QA Remove/Install Cover on Gearshift Lever

AR68.20-P-2310QA Remove/Install Cover on Gearshift Lever



AR68.20-P-2310QA Remove/Install Cover On Gearshift Lever
- except CODE (P98) Black Series

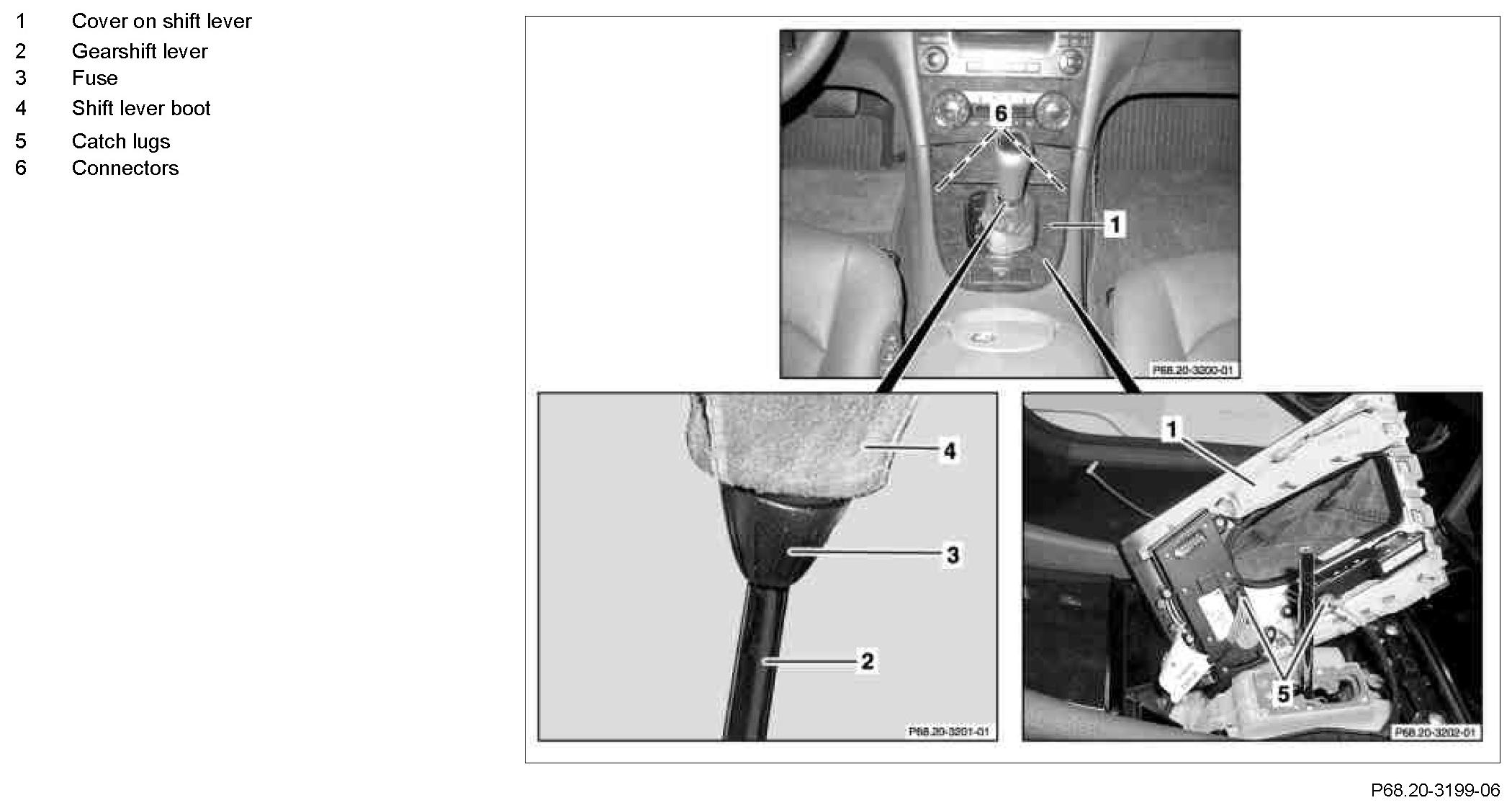

Component Identification:




Modification Notes:

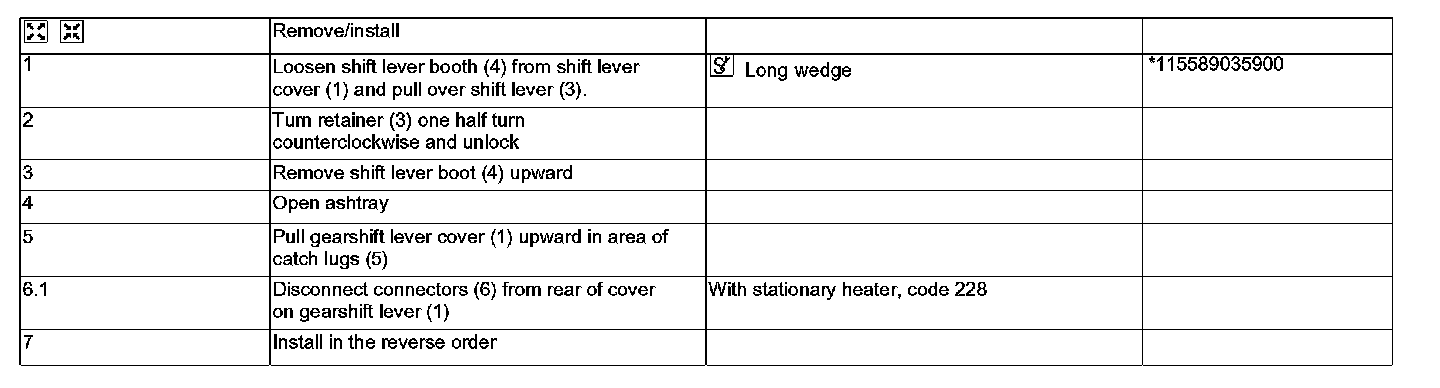

Steps 1 - 7:

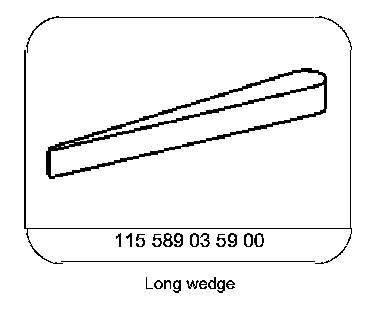

Special Tools:
