AR68.20-P-4800PB Remove/Install Floor Covering In Rear

AR68.20-P-4800PB Remove/Install Floor Covering In Rear

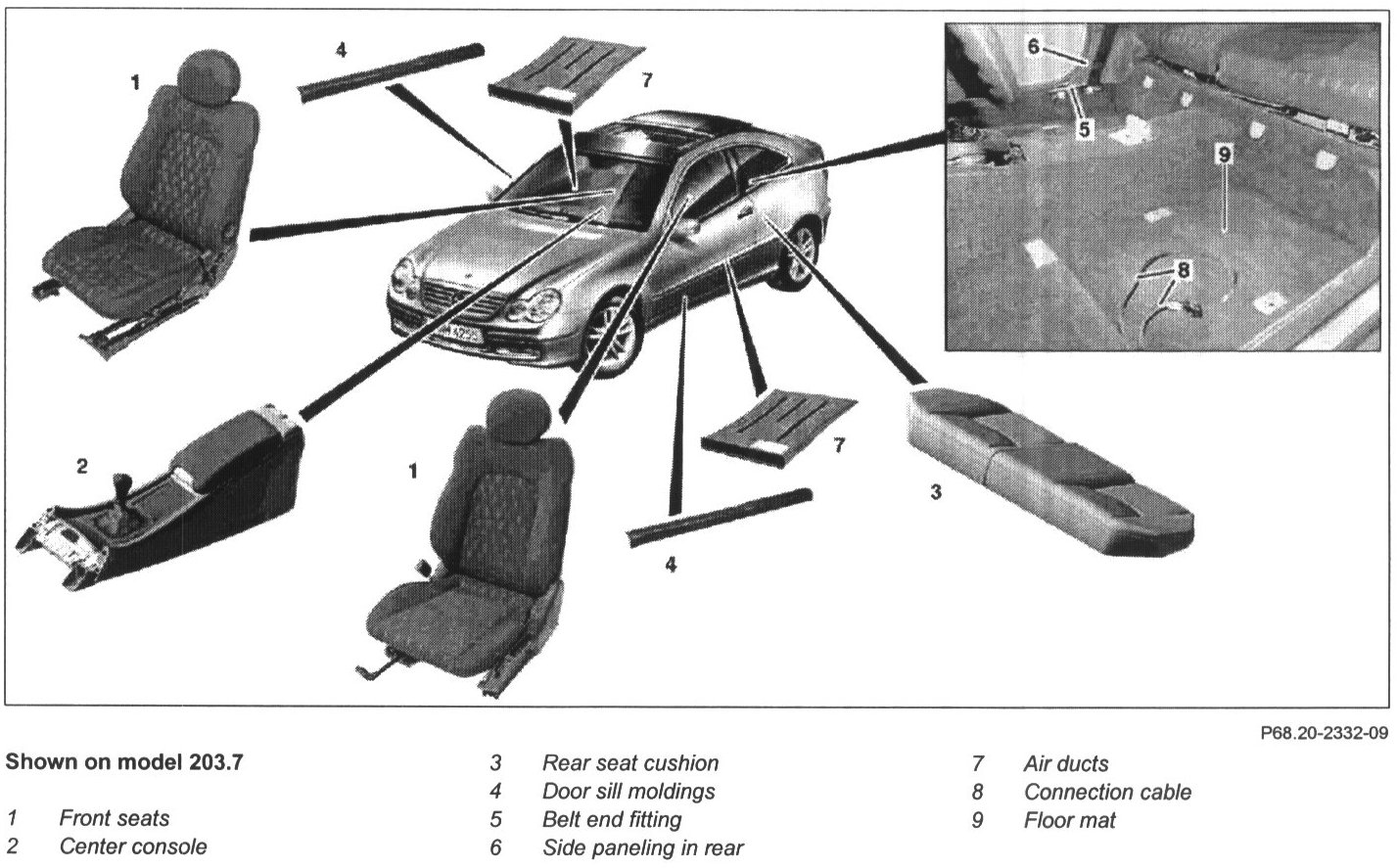

Shown On Model 203.7:

1 Remove front seats (1)
2 Remove center console (2)
3 Remove rear seat cushion (3)
4.1 Remove stowage compartment between rear seat cushions (3)
4.2 Remove bass module speaker
5 Unclip door sill molding (4) and remove
6 Remove belt end fitting (5) from bottom B-pillar
7 Remove edge protection in bottom area of side paneling
8 Unclip side paneling in bottom rear (6)

NOTE: Installation: Replace clips

9 Remove air ducts (7)
10 Route connection cable (8) through floor covering
11 Remove floor mat (9)
12 Install in reverse order
