Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Accessory Compartment >> Service and Repair >> AR68.10-P-1610Q Remove/Install Stowage Compartment In Passenger-Side Instrument Panel Bottom Section

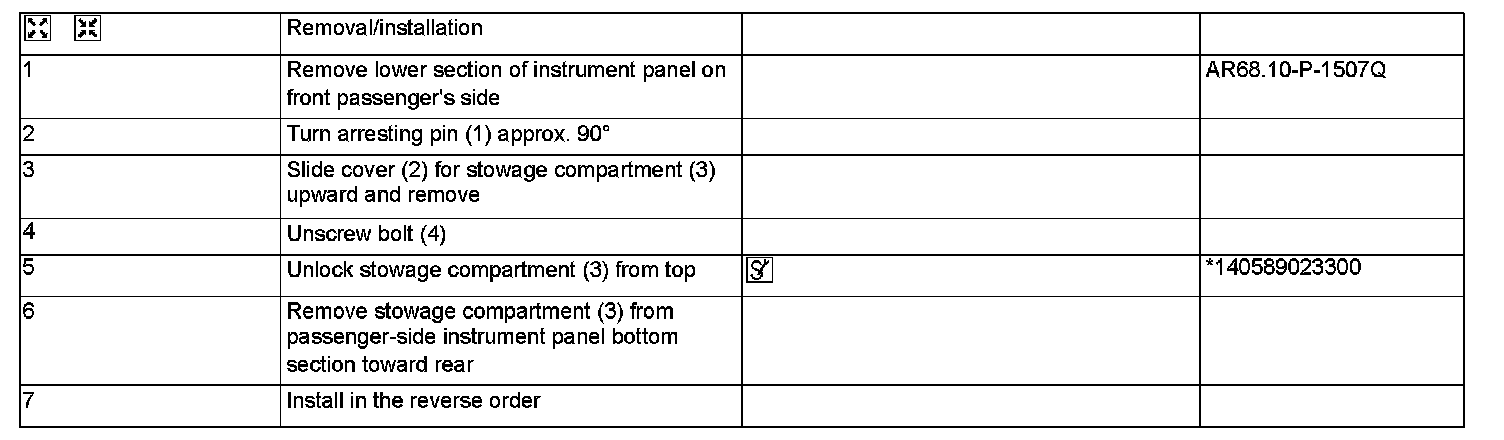

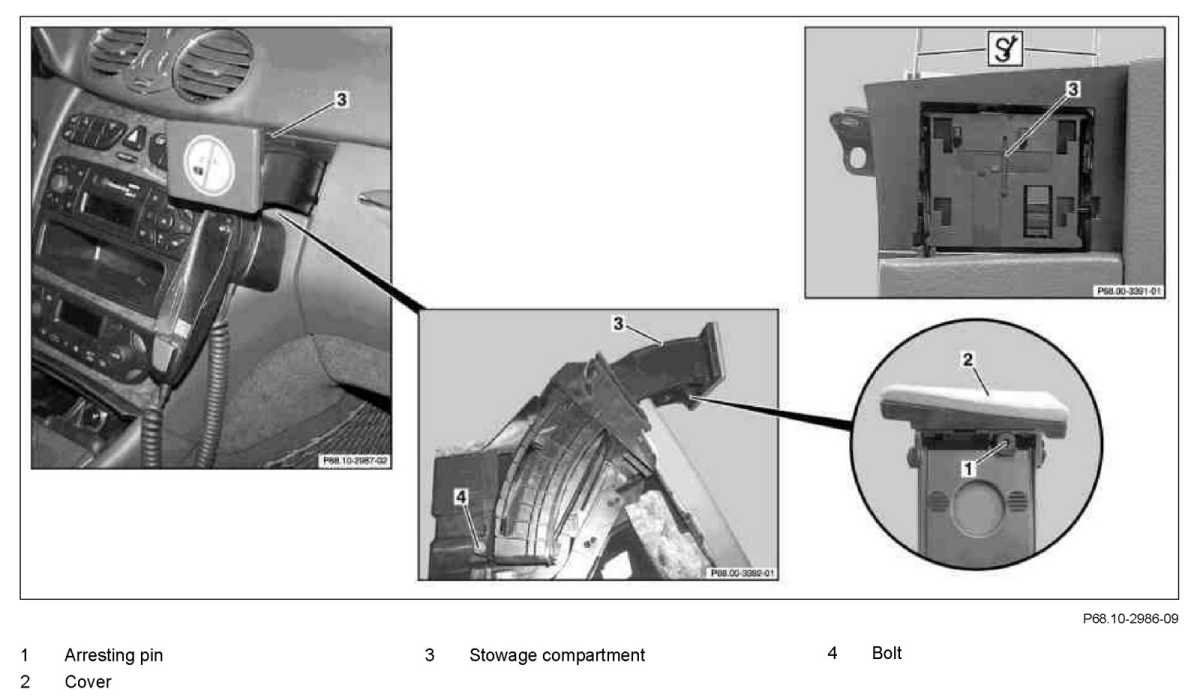

AR68.10-P-1610Q Remove/Install Stowage Compartment In Passenger-Side Instrument Panel Bottom Section



AR68.10-P-1610Q Remove/Install Stowage Compartment In Passenger-Side Instrument Panel Bottom Section

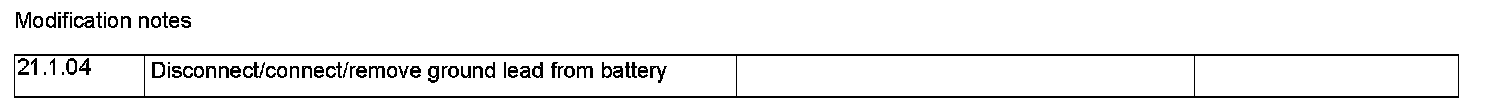

Modification Notes:
