AR62.30-P-2500QBS Remove/Install Strut Tower Brace



AR62.30-P-2500QBS Remove/Install Strut Tower Brace
- with CODE (P98) Black Series

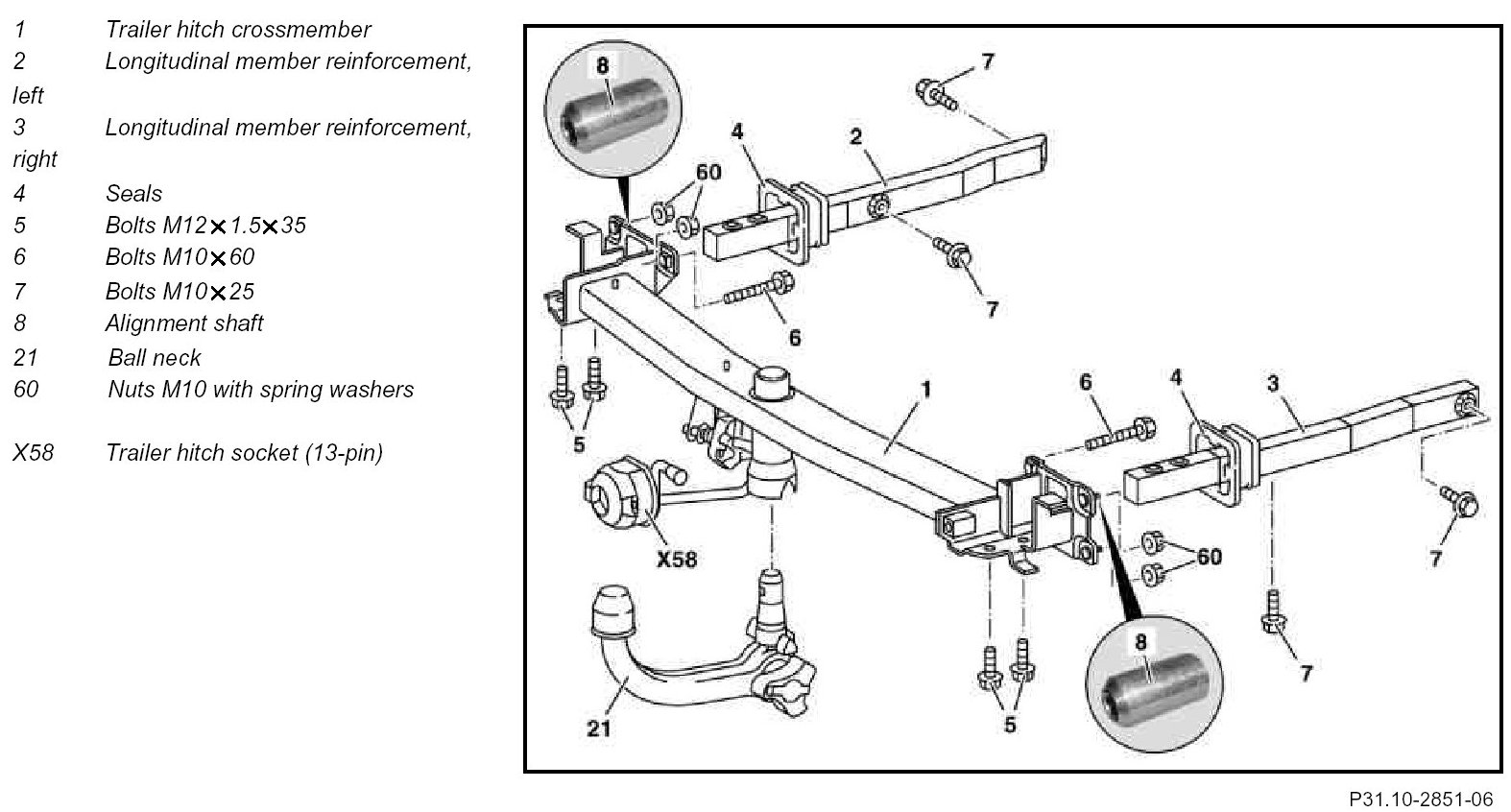

Component Identification:

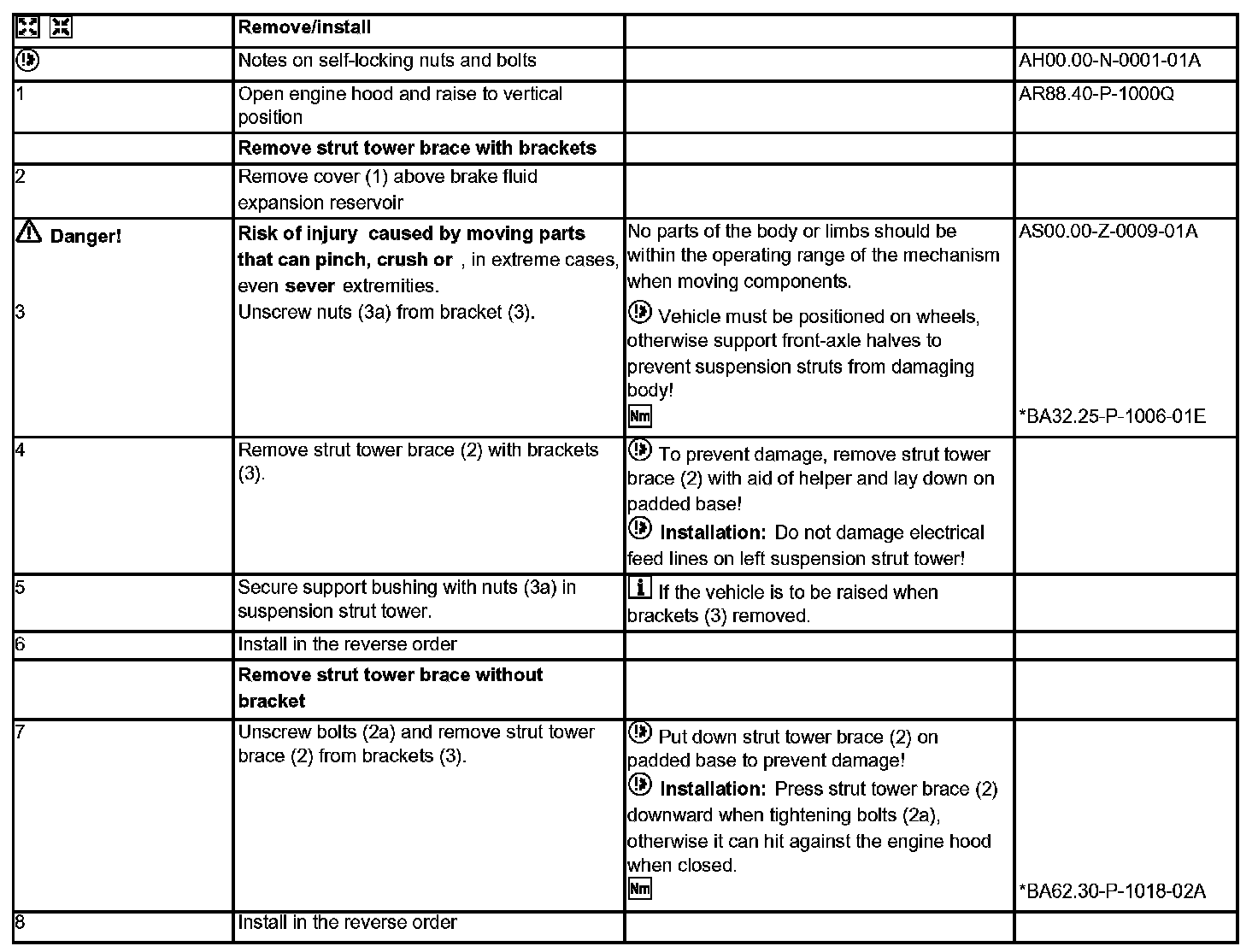

Steps 1 - 8:

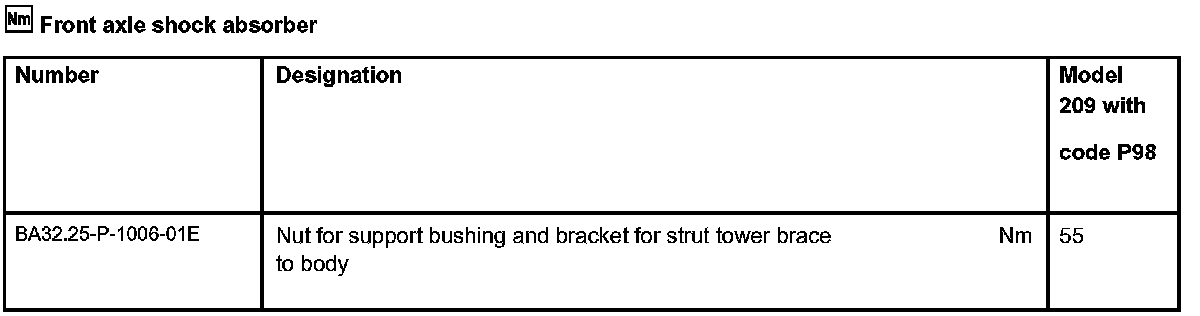

Front Axle Shock Absorber:

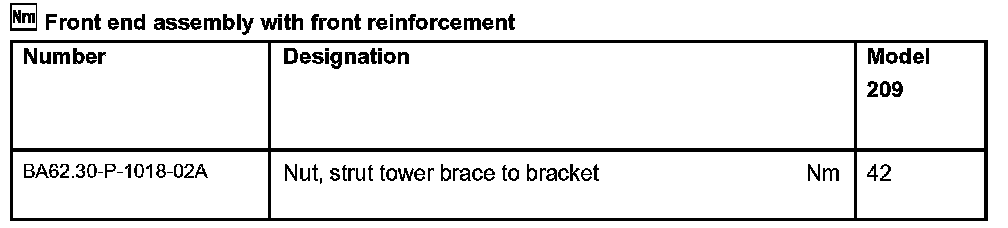

Front End Assembly With Front Reinforcement:
