AR63.10-P-0696-02Q Prepare Cross Member Reinforcement Below Rear Seat

AR63.10-P-0696-02Q Prepare Cross Member Reinforcement Below Rear Seat
(Model 209.3, In the renewing of the B column completely)

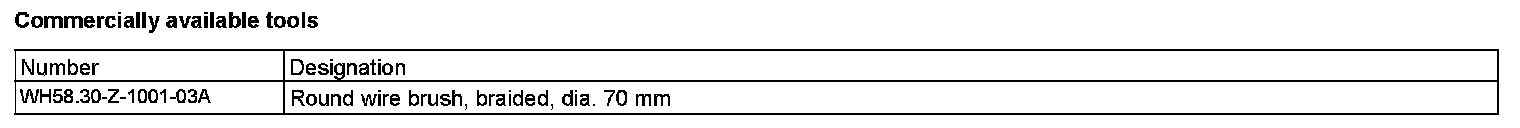

Commercially Available Tools:

Workshop Equipment:

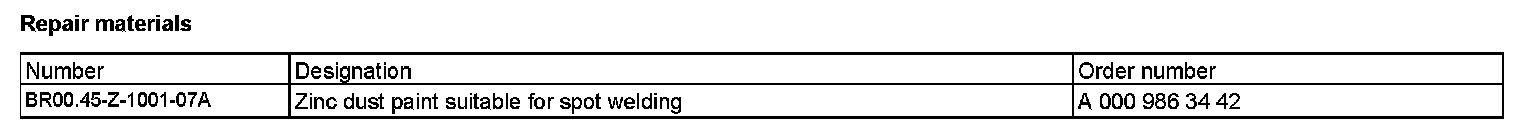

Repair Materials:

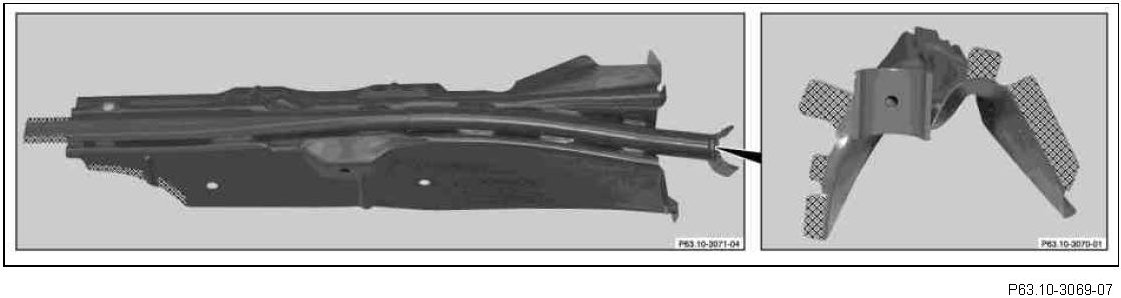

1. Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides.
2. Coat insides of spot welding flanges with zinc dust paint.
