AR63.10-P-0696-01Q Remove Cross Member Reinforcement Below Rear Seat

AR63.10-P-0696-01Q Remove Cross Member Reinforcement Below Rear Seat
(Model 209.3, In the renewing of the B column completely)

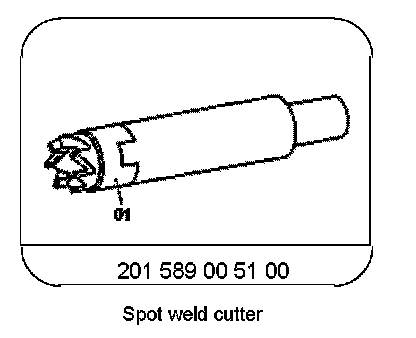

Special Tools:

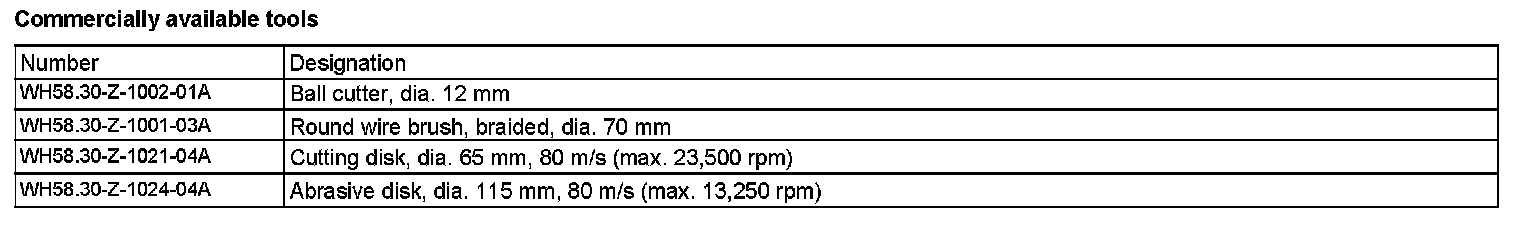

Commercially Available Tools:

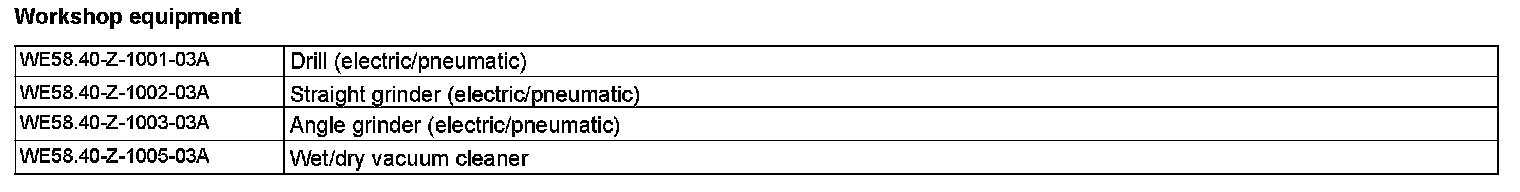

Workshop Equipment:

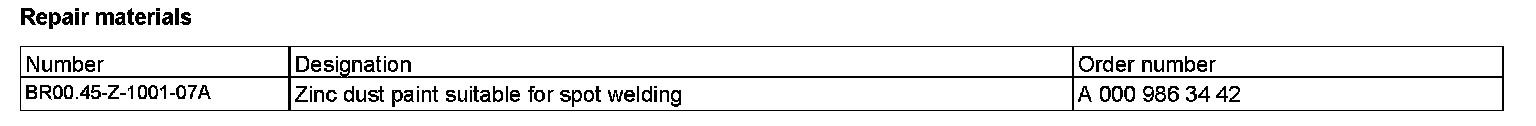

Repair Materials:

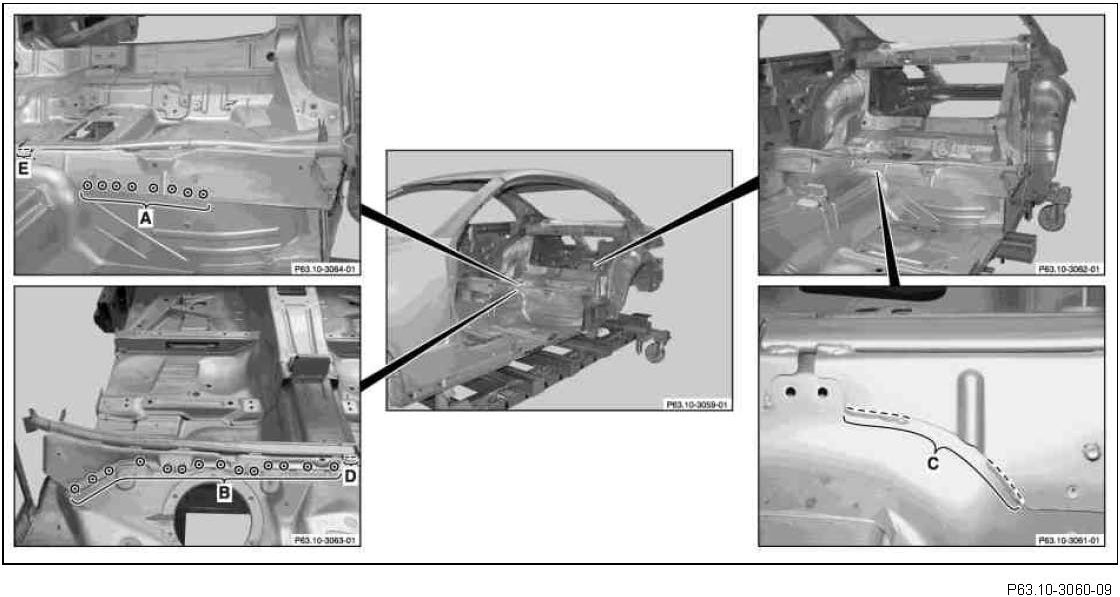

1. Grind out welds (areas E and F).
2. Expose spot welds and cut out with spot weld cutter (areas A and B).
3. Remove cross member.

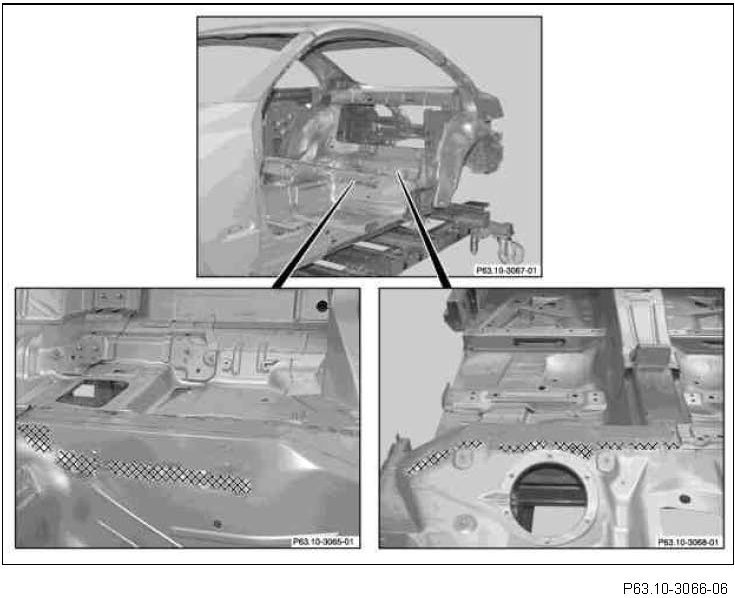

4. Grind connection surfaces down to bare metal in shaded areas.
5. Remove grinding and drilling chips with wet/dry vacuum cleaner.
6. Coat shaded areas with zinc dust paint.
