Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Cabin Ventilation Grille >> Service and Repair >> AR88.40-P-3001Q Remove/Install Air Intake Grille on Engine Hood

AR88.40-P-3001Q Remove/Install Air Intake Grille on Engine Hood

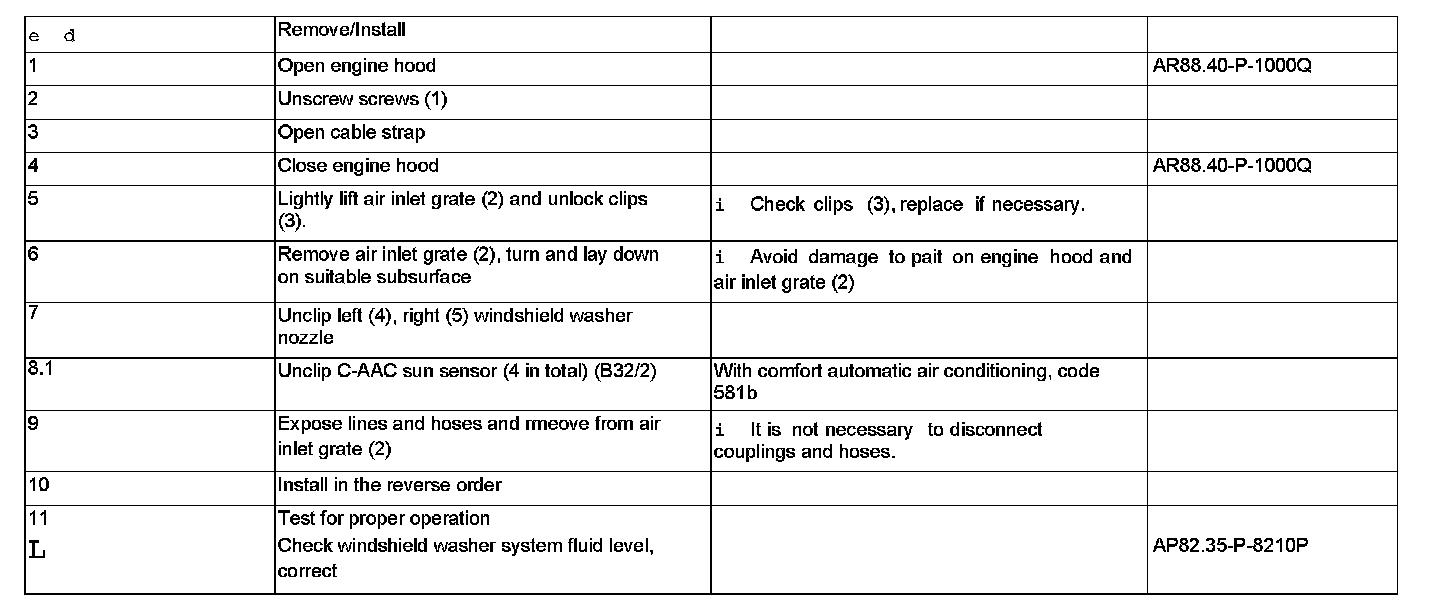

AR88.40-P-3001Q Removing and Installing Air Intake Grille on Engine Hood

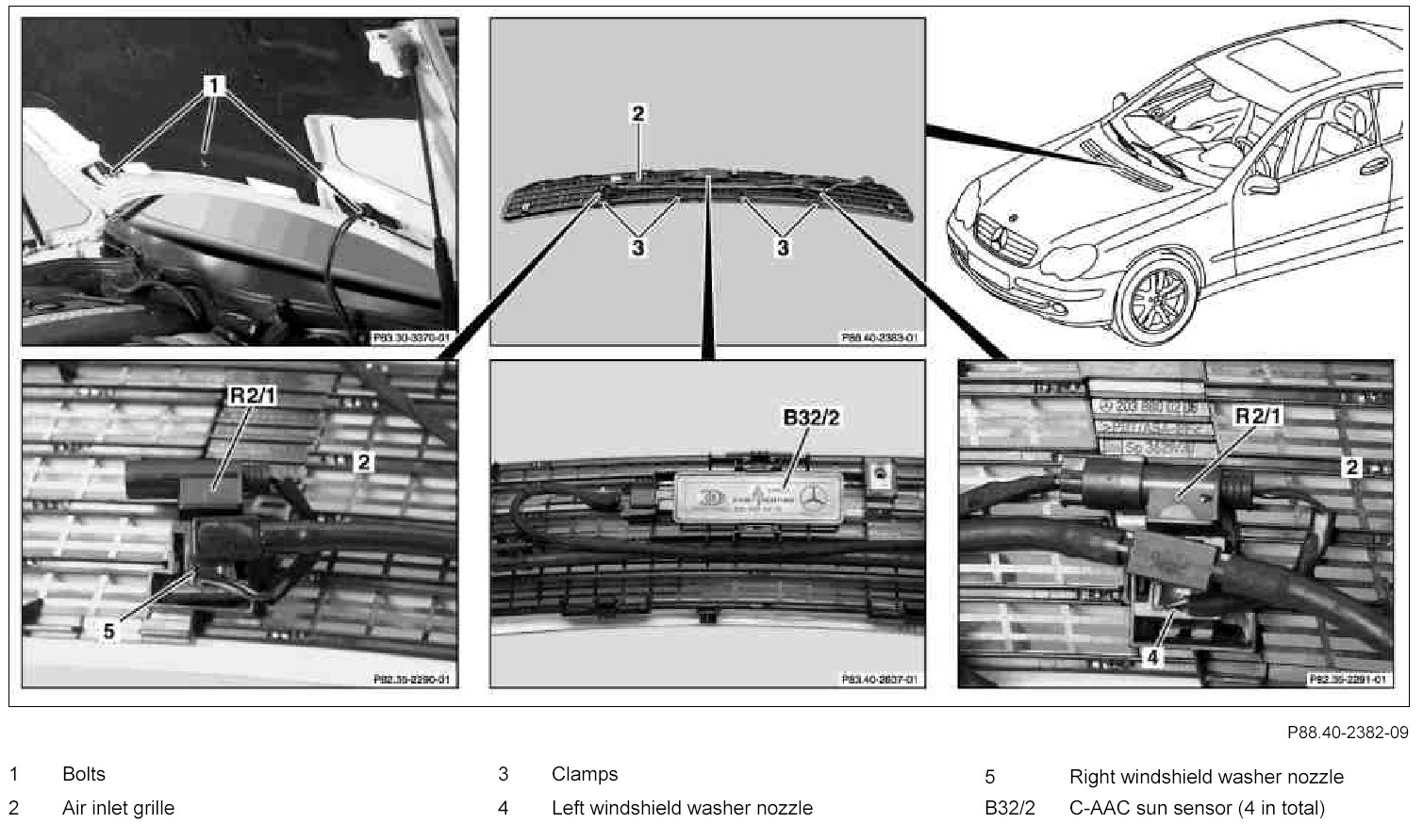

Component Identification:




Engine 1 - 11:
