AR88.20-P-2000QBS Remove/Install Front Bumper



AR88.20-P-2000QBS Remove/Install Front Bumper
- with CODE (P98) Black Series

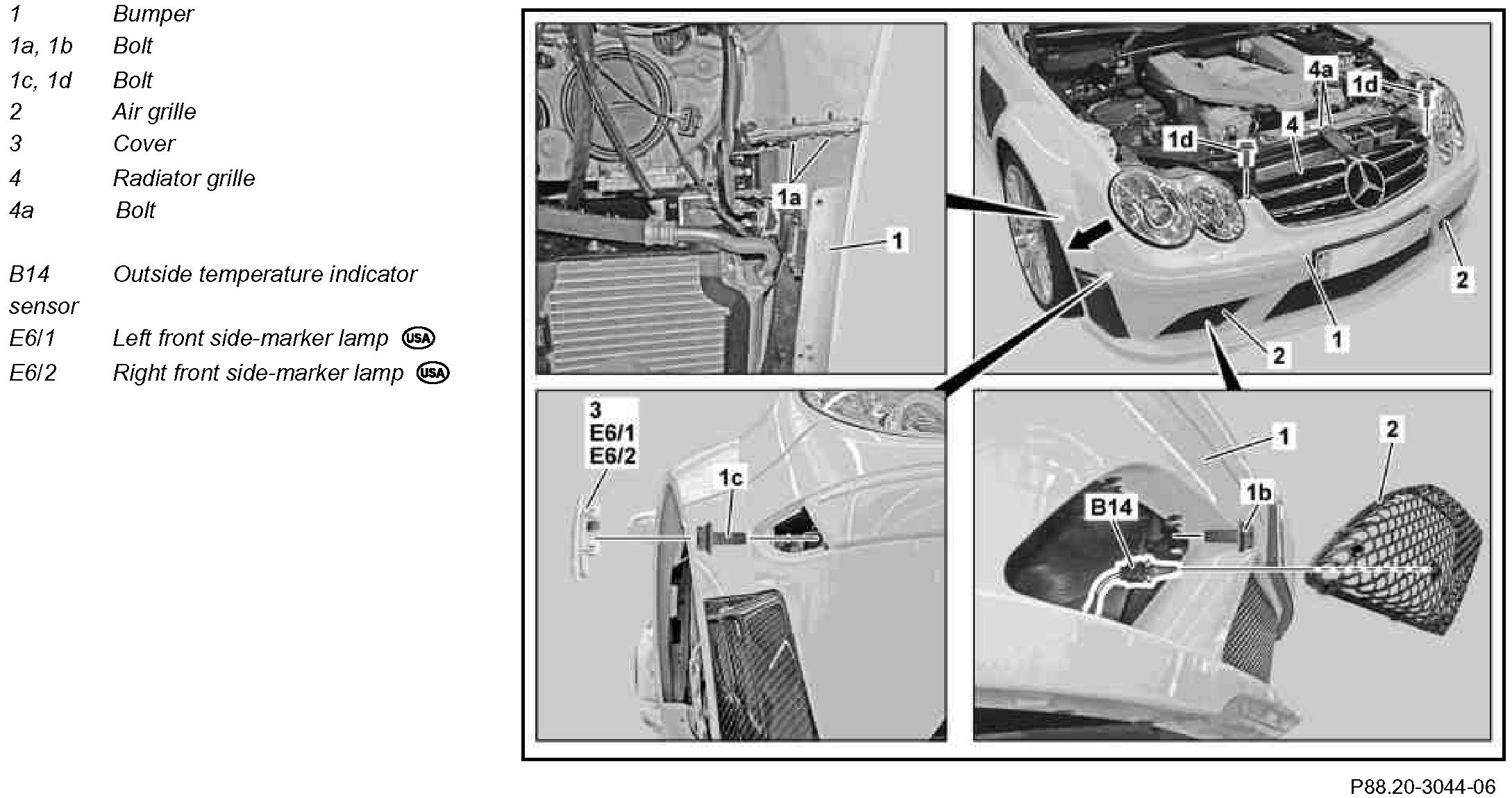

Component Identification:

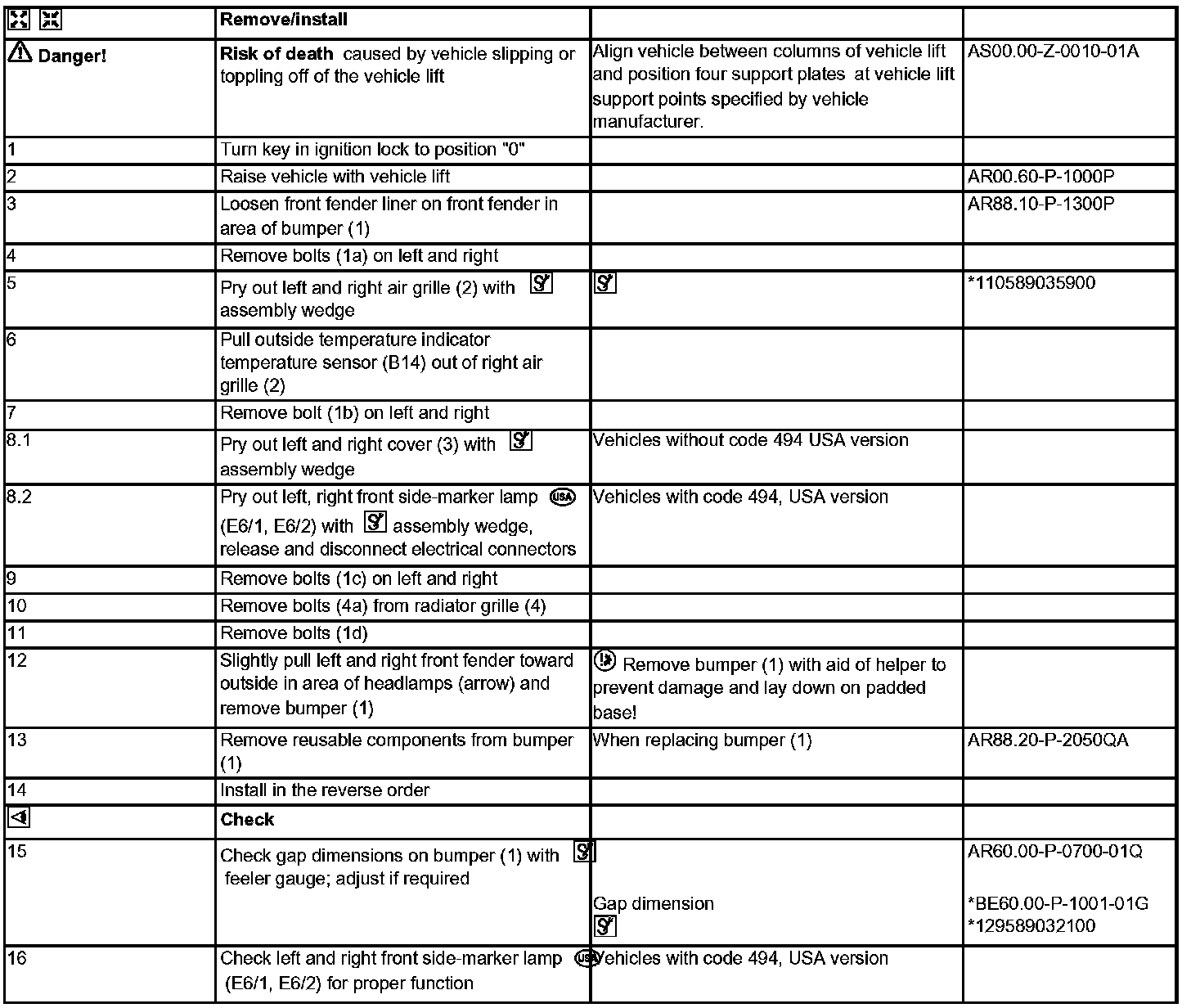

Steps 1 - 16:

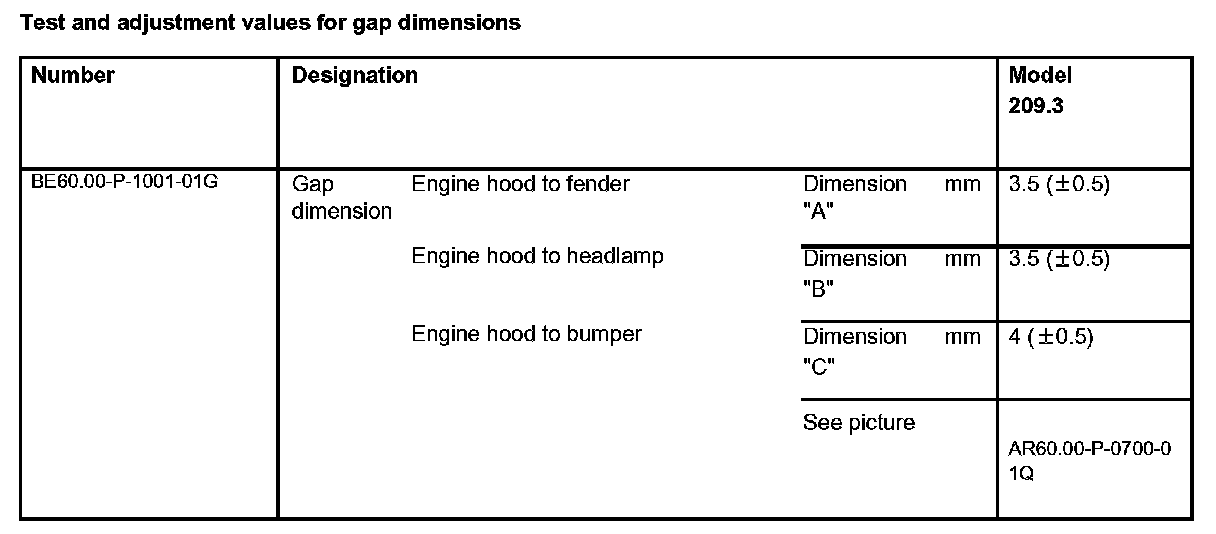

Test And Adjustment Values For Gap Dimensions:

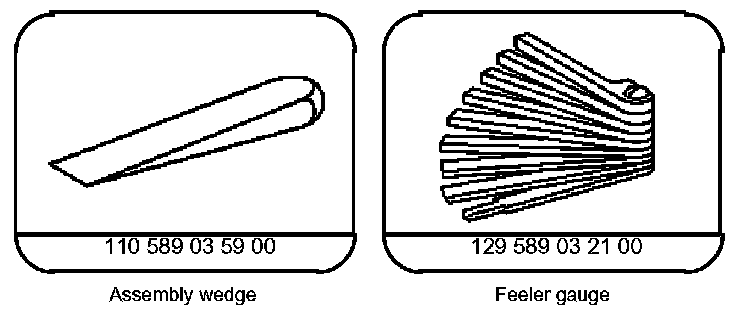

Special Tools:
