AR82.62-P-7845Q Remove/Install Loudspeaker In Front Door

AR82.62-P-7845Q Remove/Install Loudspeaker In Front Door







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury with caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear acid-resistant gloves, clothing and goggles. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery
2 Remove door lining from front door
3 Disconnect connector

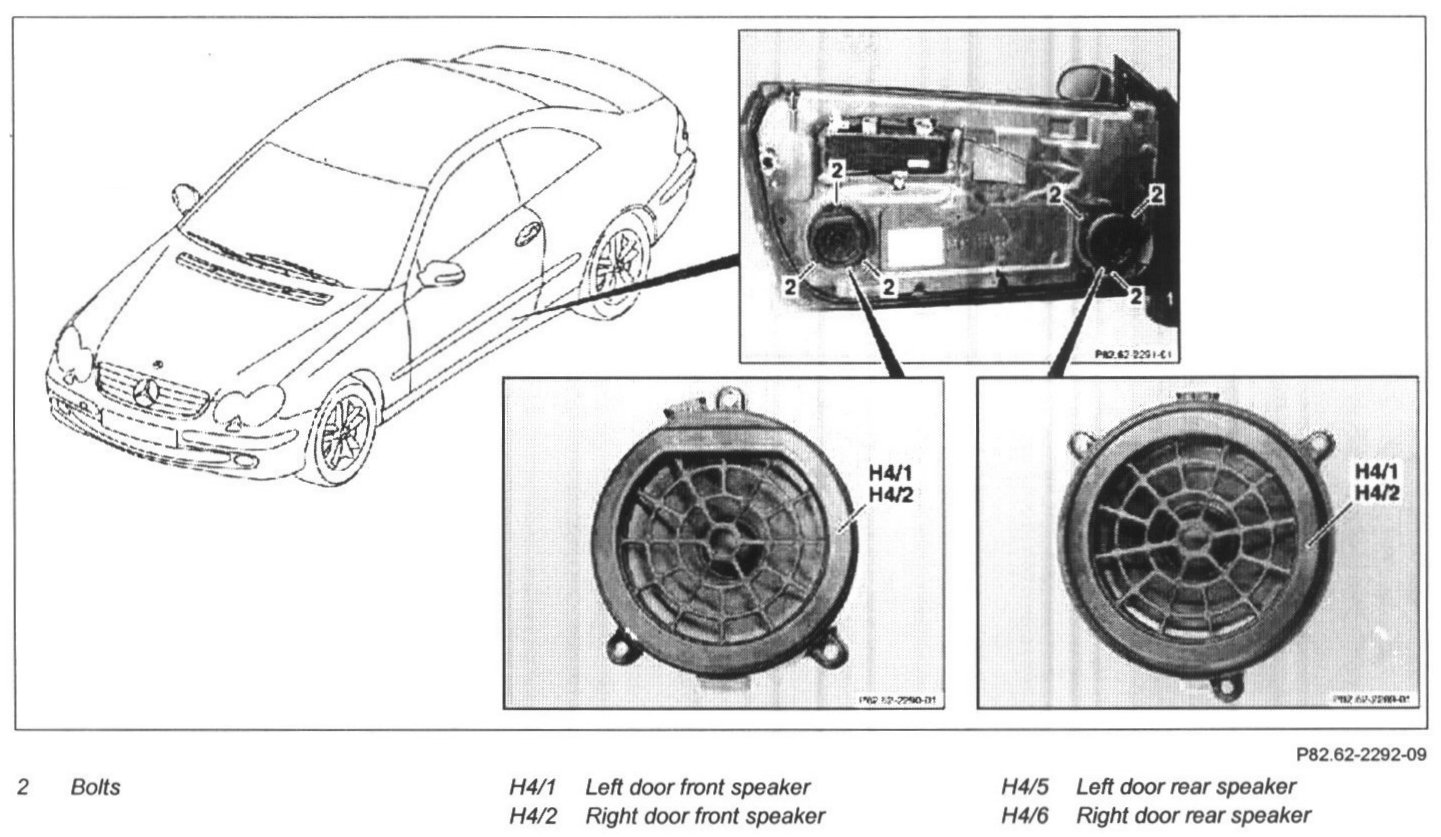

4 Unscrew screw (2)
5 Remove left (H4/1), right (H4/2) door front speaker
6 Remove left (H4/5), right (H4/6) door rear speaker
7 Install in the reverse order
8 Perform basic programming
9 Read diagnostic trouble code memory and erase
10 Perform function check
