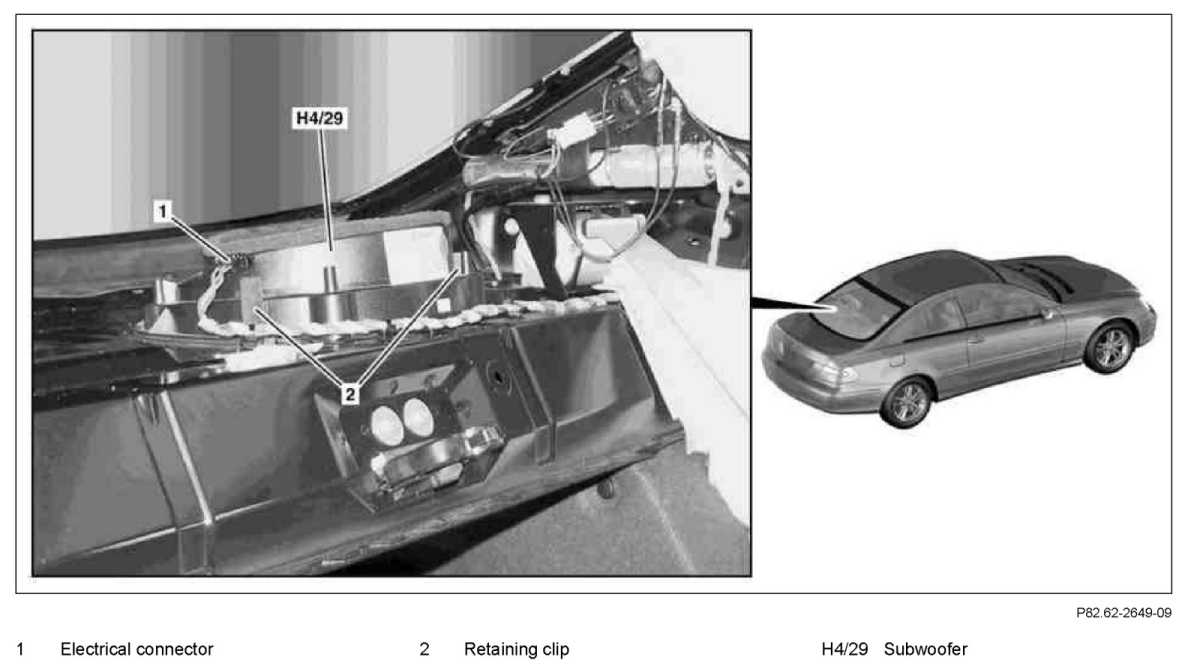

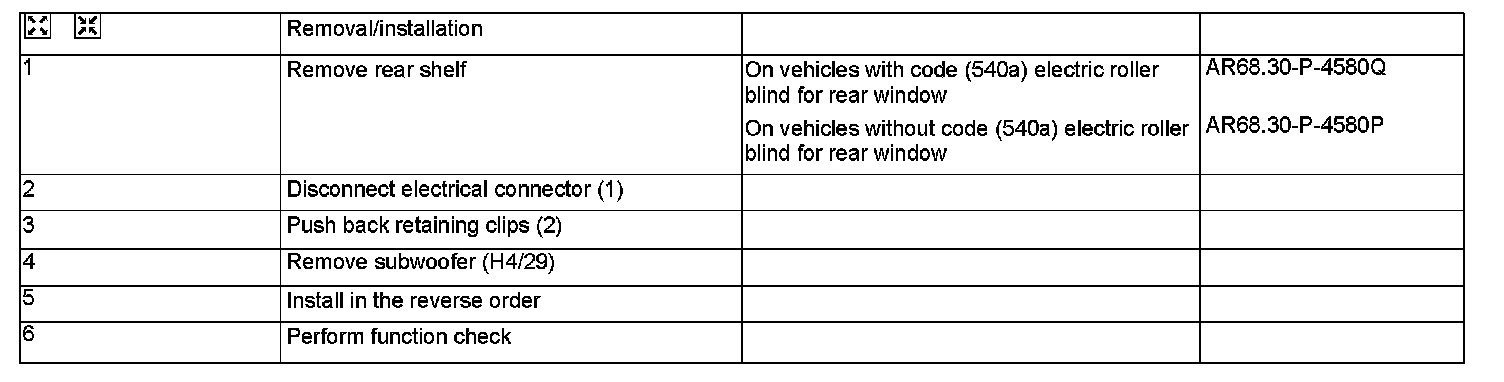

AR82.62-P-7839Q Remove/Install Bass Module Speaker
AR82.62-P-7839Q Remove/Install Bass Module Speaker
AR82.62-P-7839Q Remove/Install Bass Module Speaker
- with CODE (810) sound system

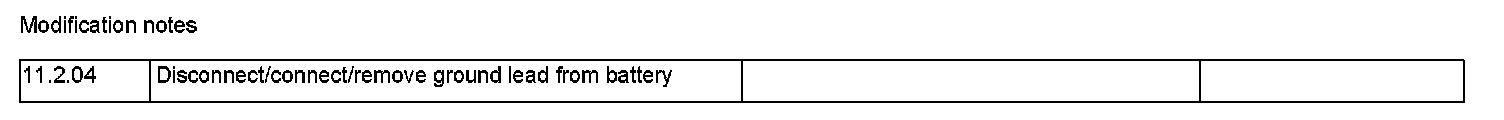

Modification Notes:
