AR72.10-P-1032Q Remove/Install Speaker Cover
AR72.10-P-1032Q Remove/Install Speaker Cover
AR72.10-P-1032Q Remove/Install Speaker Cover

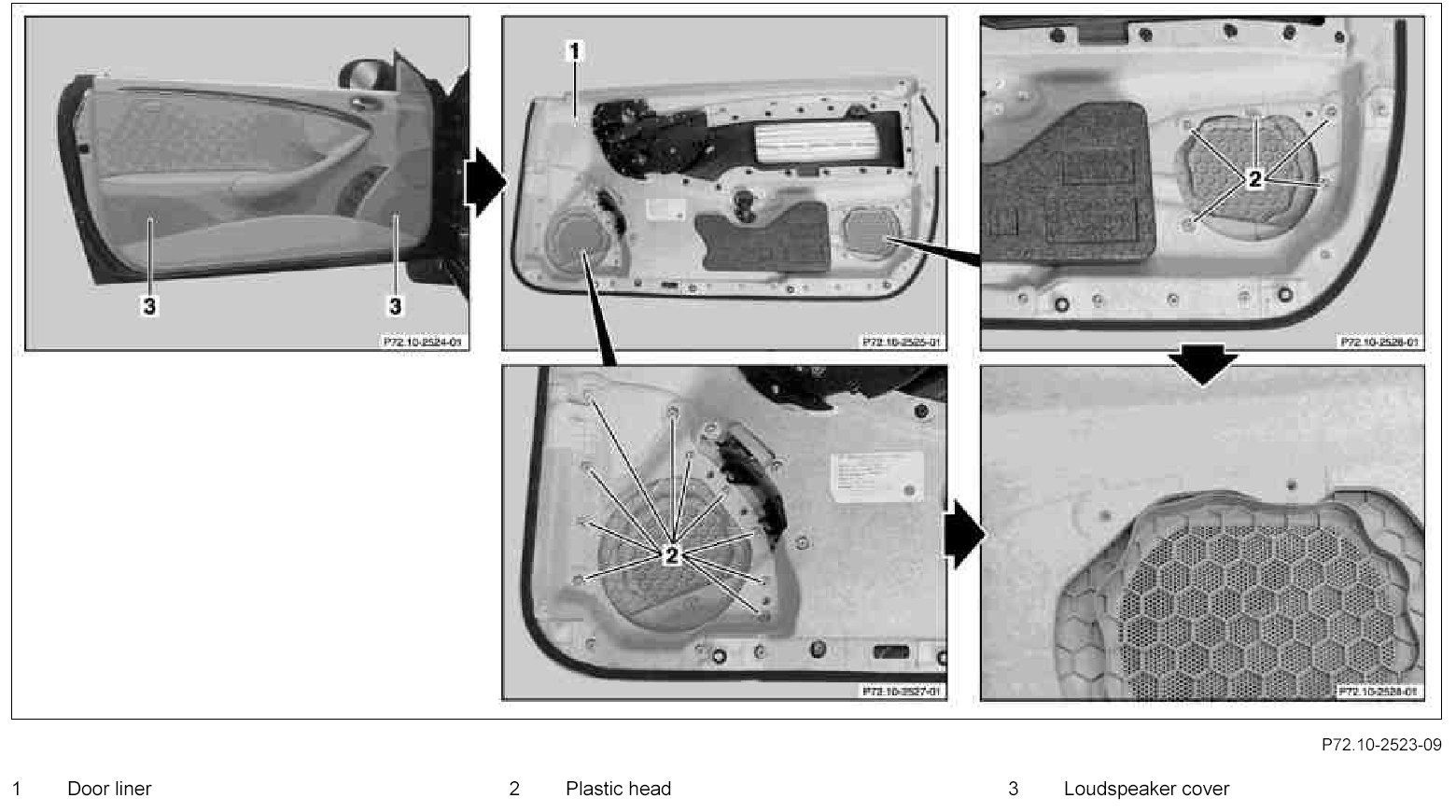

Component Identification:

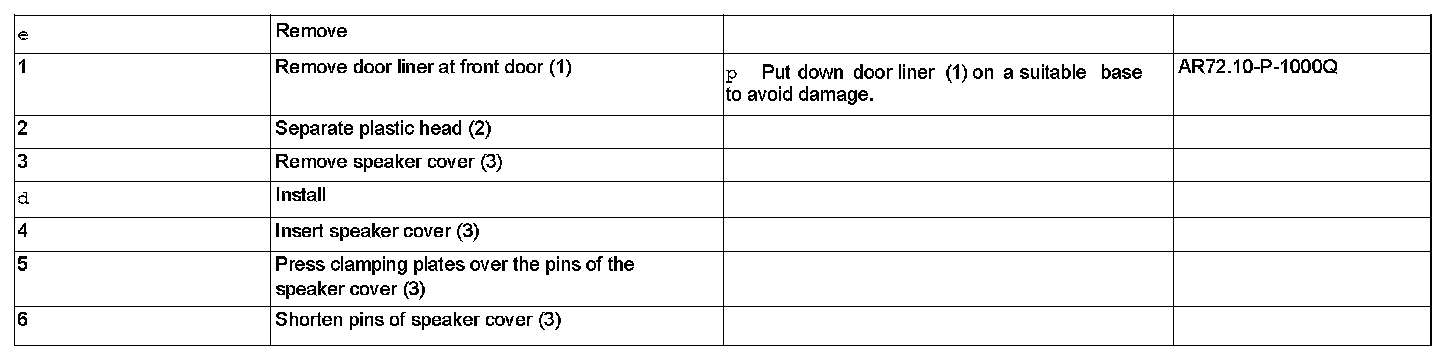

Steps 1 - 6:
