Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Procedures >> SM82.61-P-0002A Installing Additional Fan With Audio 30 APS

SM82.61-P-0002A Installing Additional Fan With Audio 30 APS



SM82.61-P-0002A Installing Additional Fan With Audio 30 APS
- with CODE (353) Audio 30 APS


With Audio 30 APS

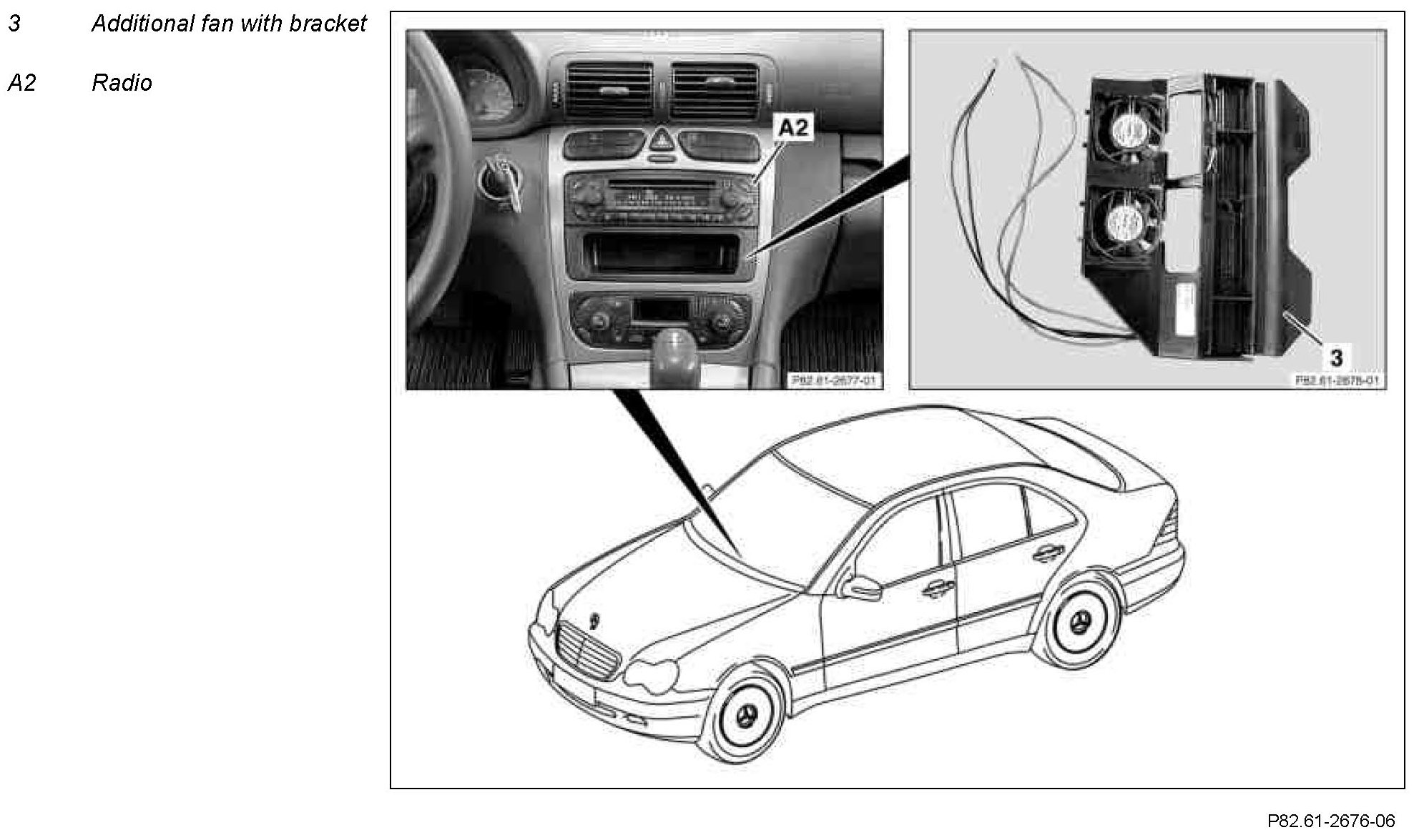

Component Identification:

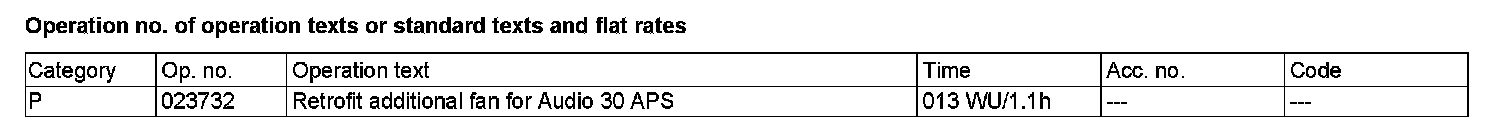

Operation No. Of Operation Texts Or Standard Texts And Flat Rates:

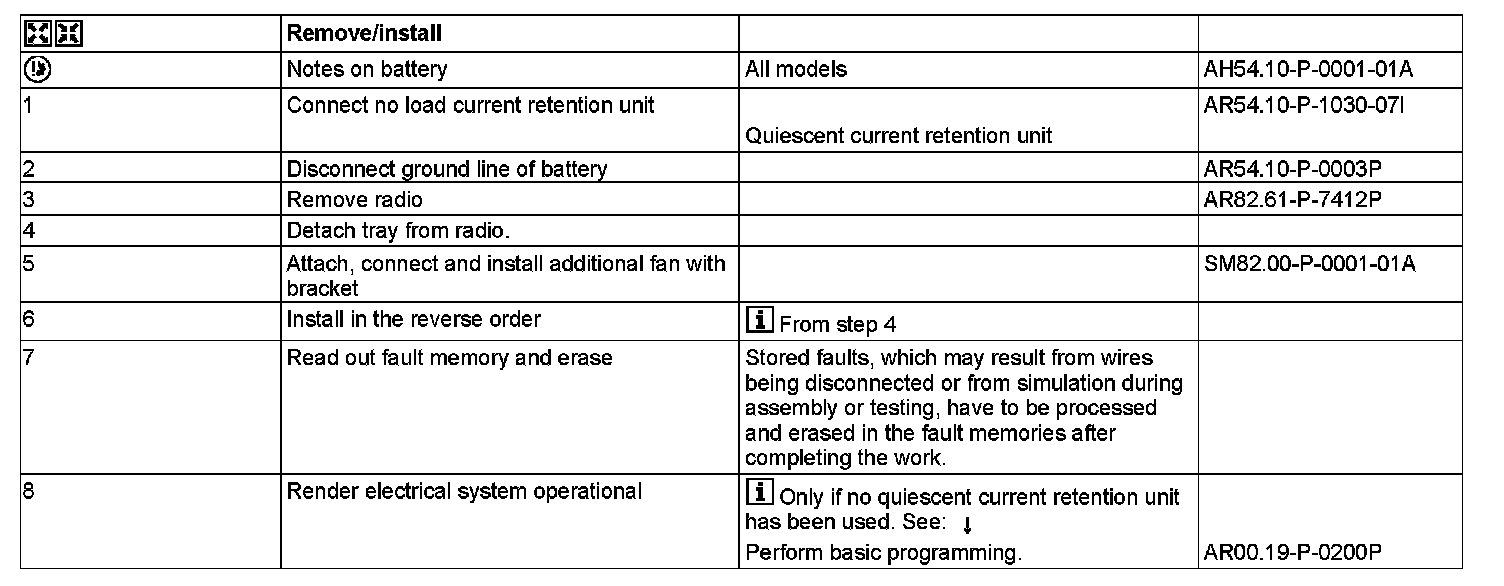

Steps 1 - 8:

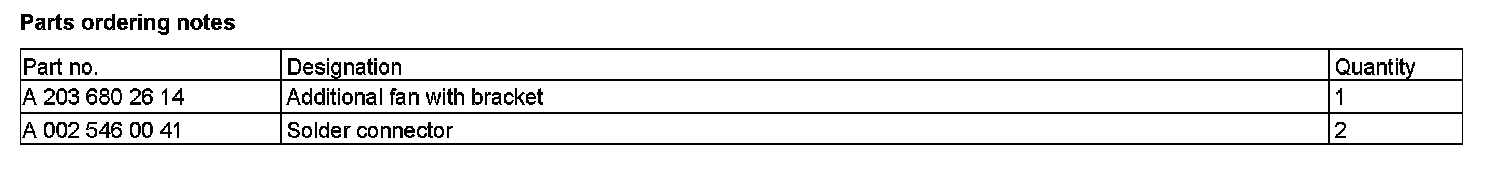

Parts Ordering Notes:
