SM82.60-P-0001A Installing Additional Fan



SM82.60-P-0001A Installing Additional Fan
- with CODE (756) MB Audio 10 RDS radio with CD insertion slot


With Audio 10 RDS with CD insert slot

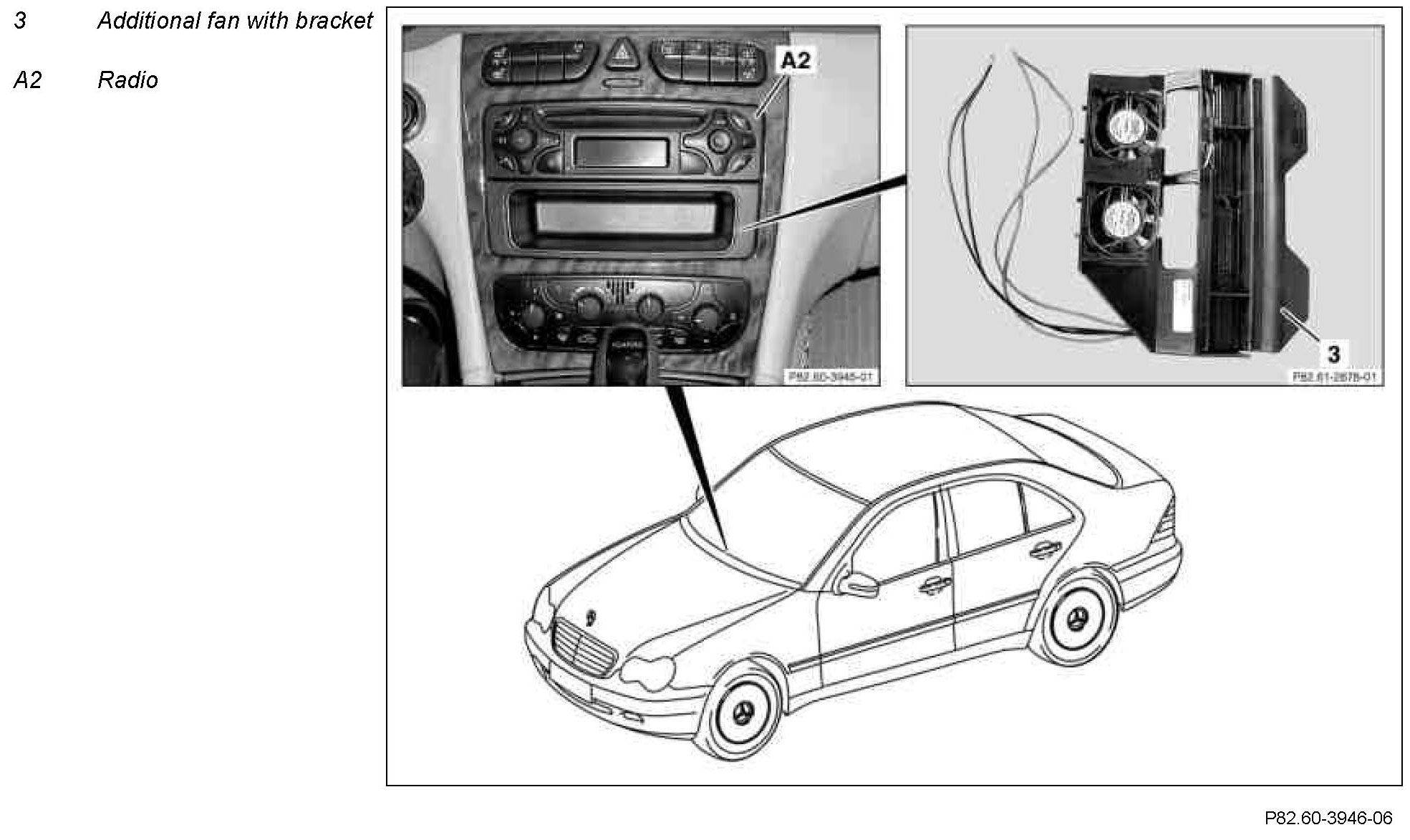

Component Identification:

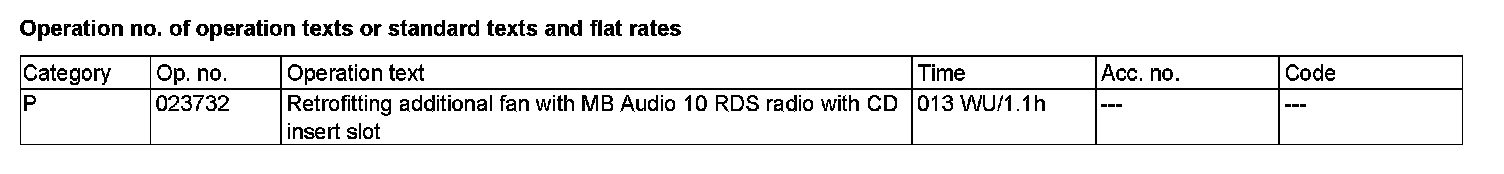

Operation No. Of Operation Texts Or Standard Texts And Flat Rates:

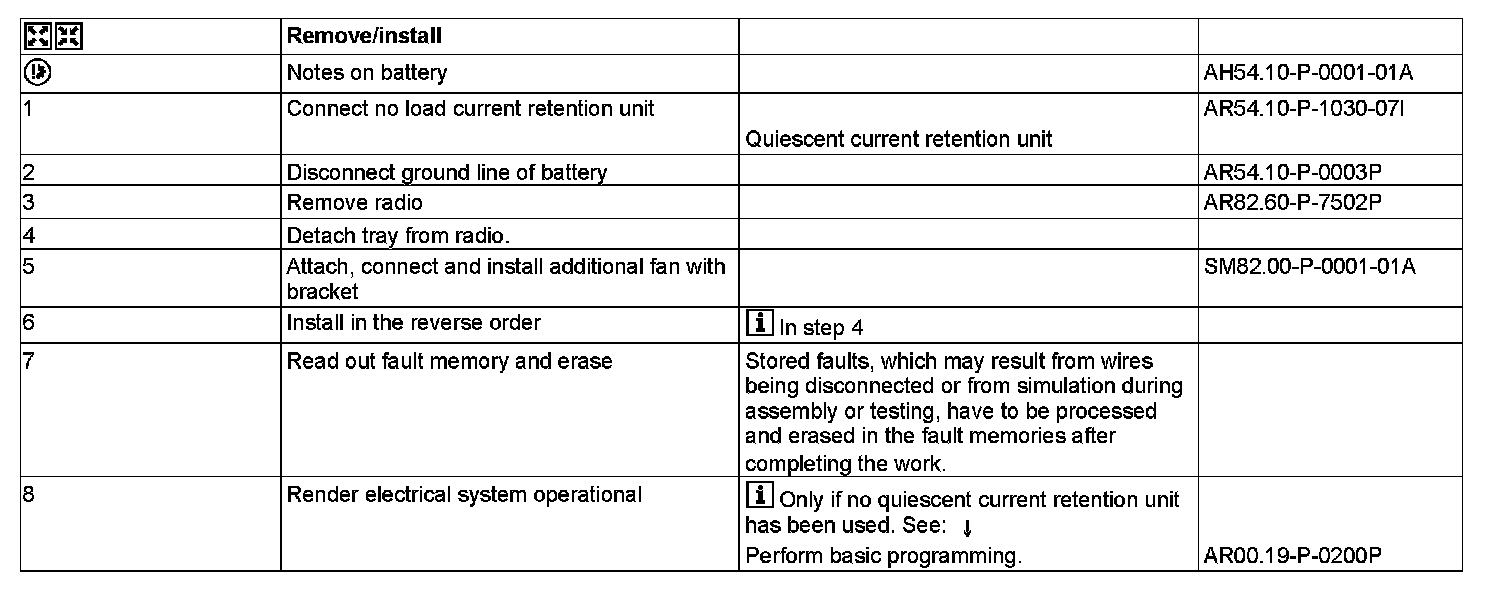

Steps 1 - 8:

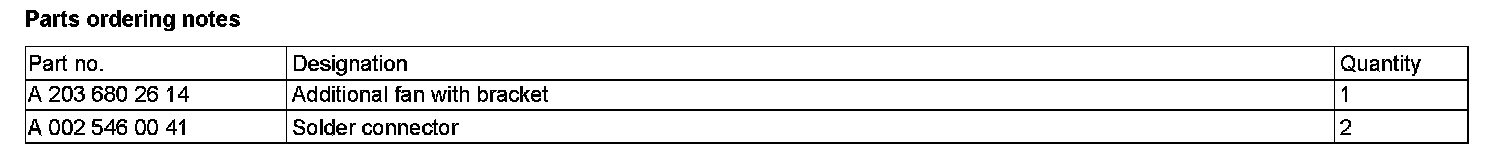

Parts Ordering Notes:
