AN82.64-P-0001-02QA Retrofit CD Changer In Stowage Compartment

AN82.64-P-0001-02QA Retrofit CD Changer In Stowage Compartment

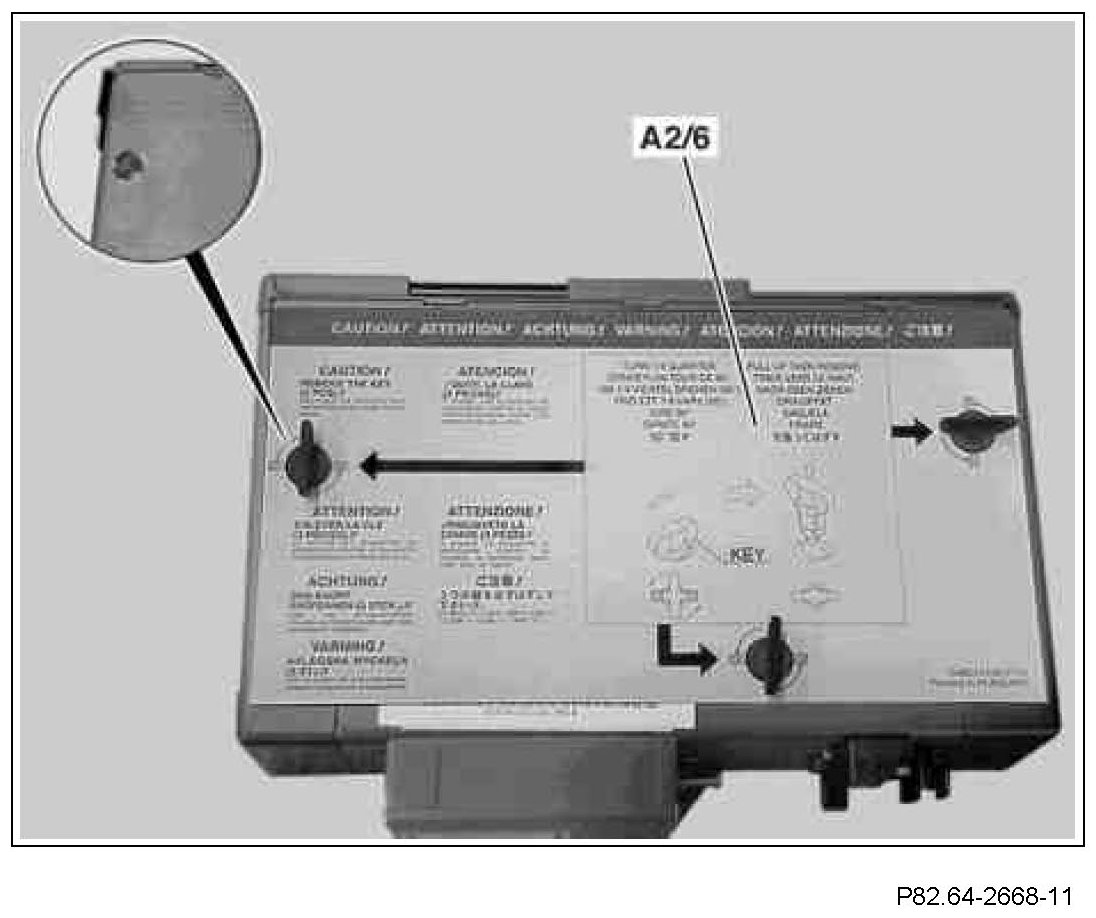

1 Remove the three transport securing devices on the underside of the CD player with changer (in the glove compartment) (A2/6) as per the instructions.
2 Seal the openings in the transport securing devices with the stickers enclosed (see enlarged section).

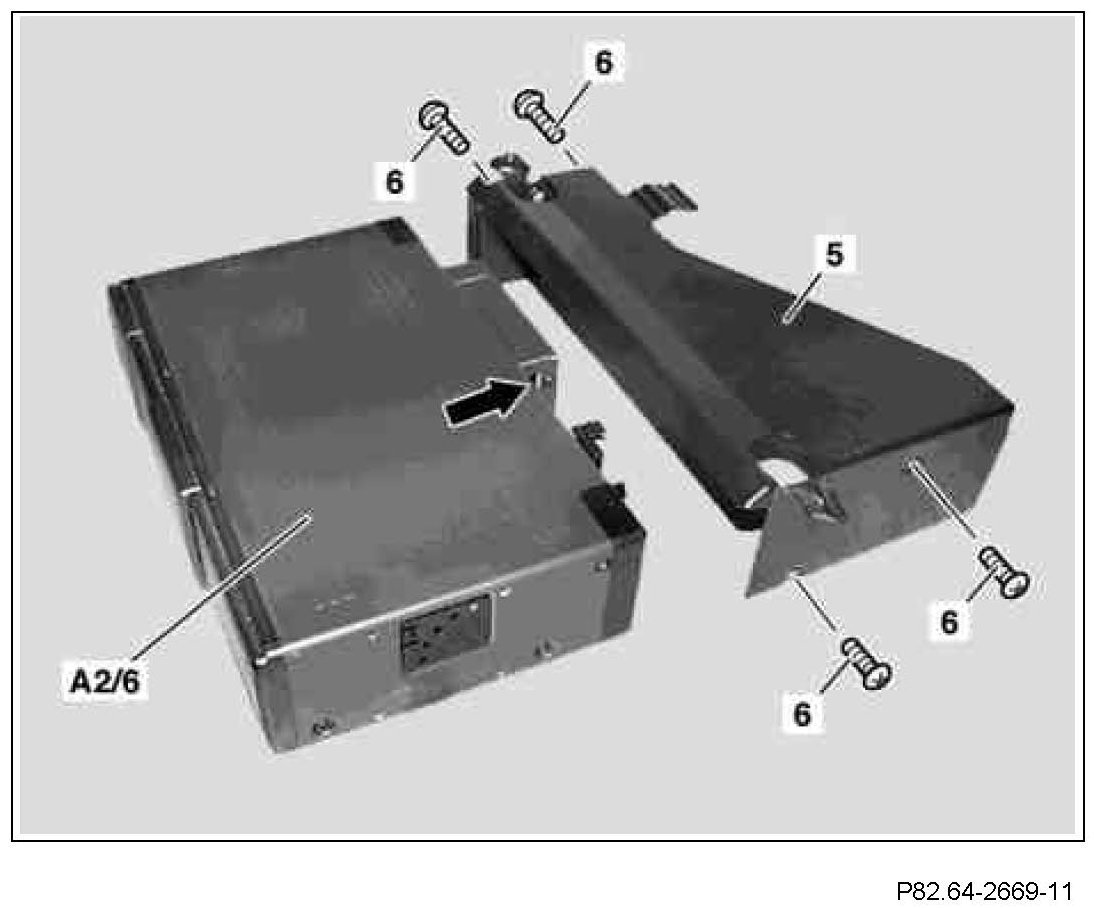

3 Slide the CD player with changer (in the glove compartment) (A2/6) into the bracket (5) (see arrow) and tighten securely with four M4X6 screws (6).







4 Connect the wiring harness for the MOST fiber optic cable (1) and the wiring harness for the voltage supply (2) to the CD player with changer (in glove compartment) (A2/6).

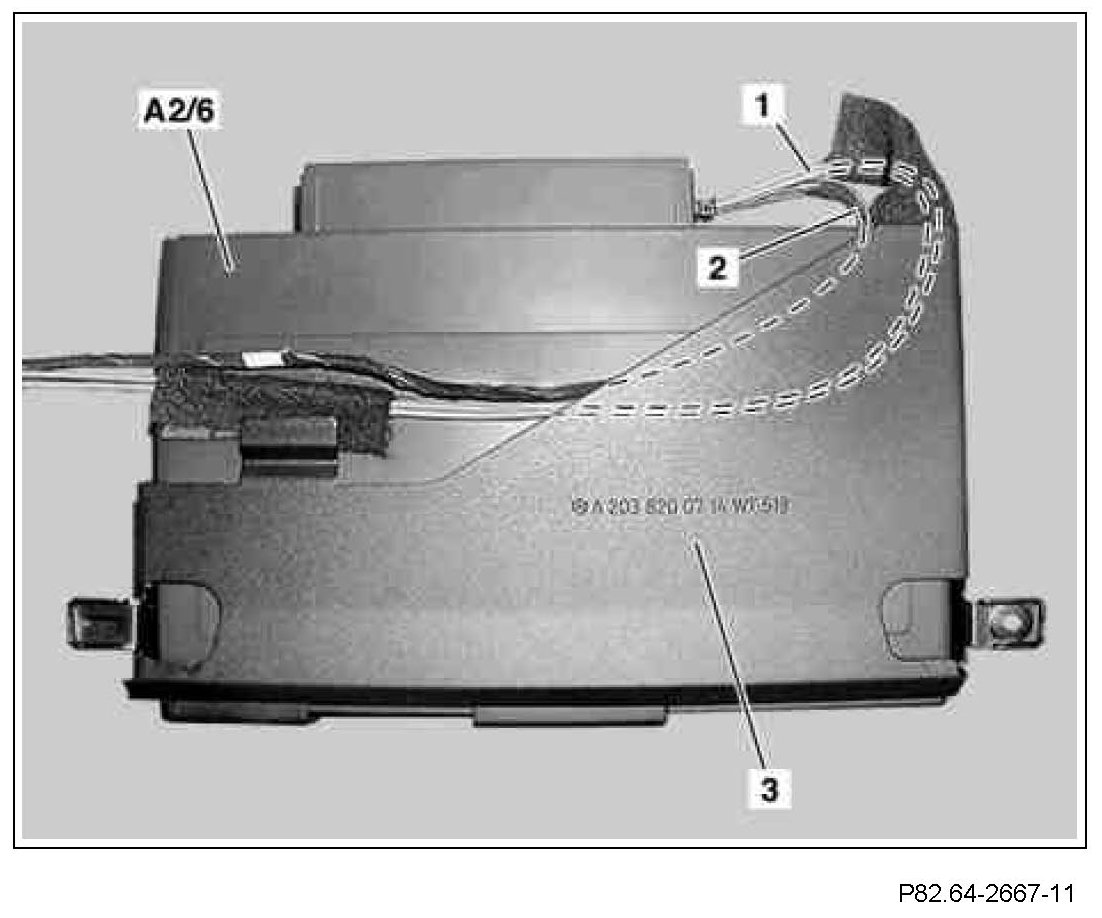

5 Route the wiring harness for the MOST fiber optic cable (1) and the wiring harness for the voltage supply (2) between the CD player with changer (in glove compartment) (A2/6) and bracket (3).

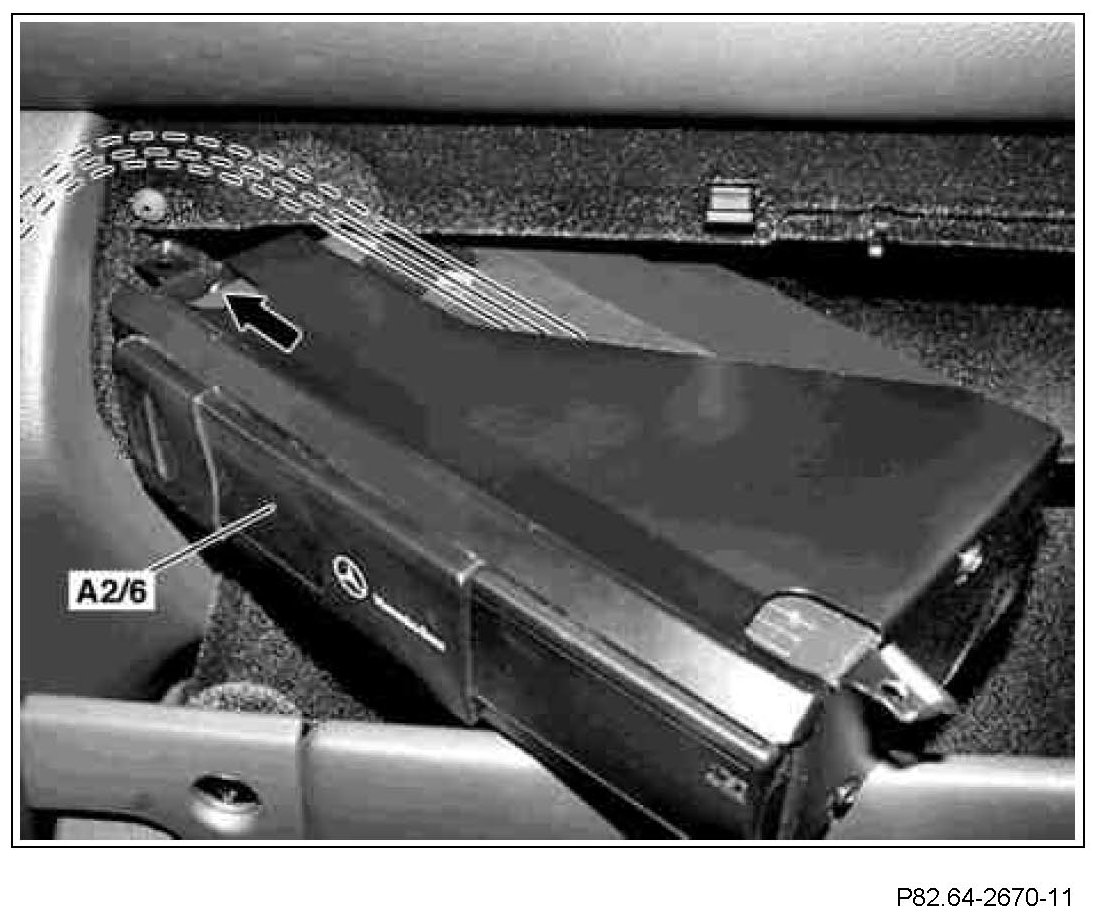

6 Slide the CD player with changer (in glove compartment) (A2/6) with the fastening shackle on the left side (see arrow) into the existing fixing hole in the glove compartment.







7 Screw on the CD player with changer (in the glove compartment) (A2/6) using a 5X16 sheet metal screw (see arrow).
