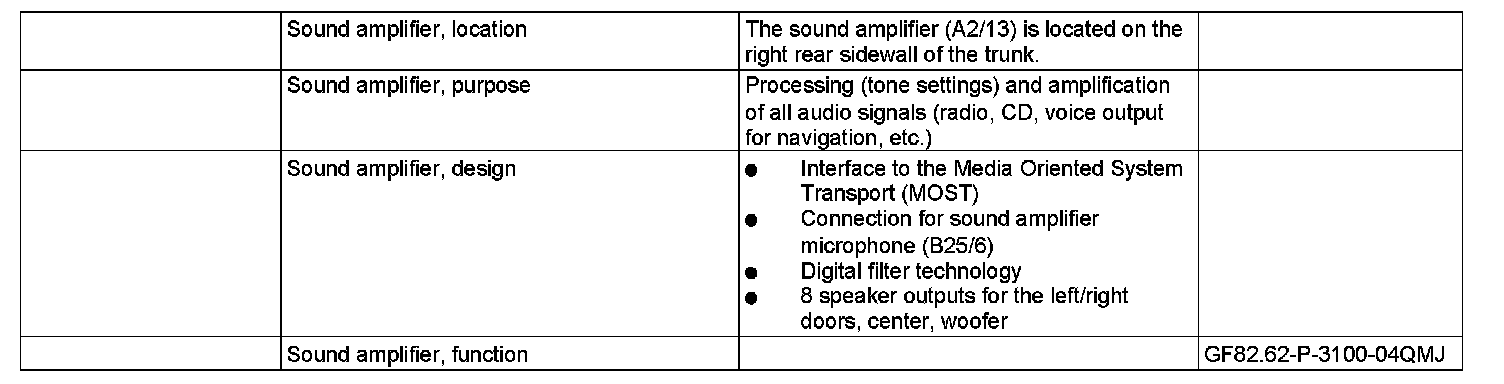

GF82.62-P-3100QMJ Sound Amplifier, Location/Purpose/Design/Function



GF82.62-P-3100QMJ Sound Amplifier, Location/Purpose/Design/Function
- Model 209.34/36/44/46
- with CODE (498) Japan version
- with CODE (810) Sound system

- Model 209.35/37/45/47
- with CODE (498) Japan version

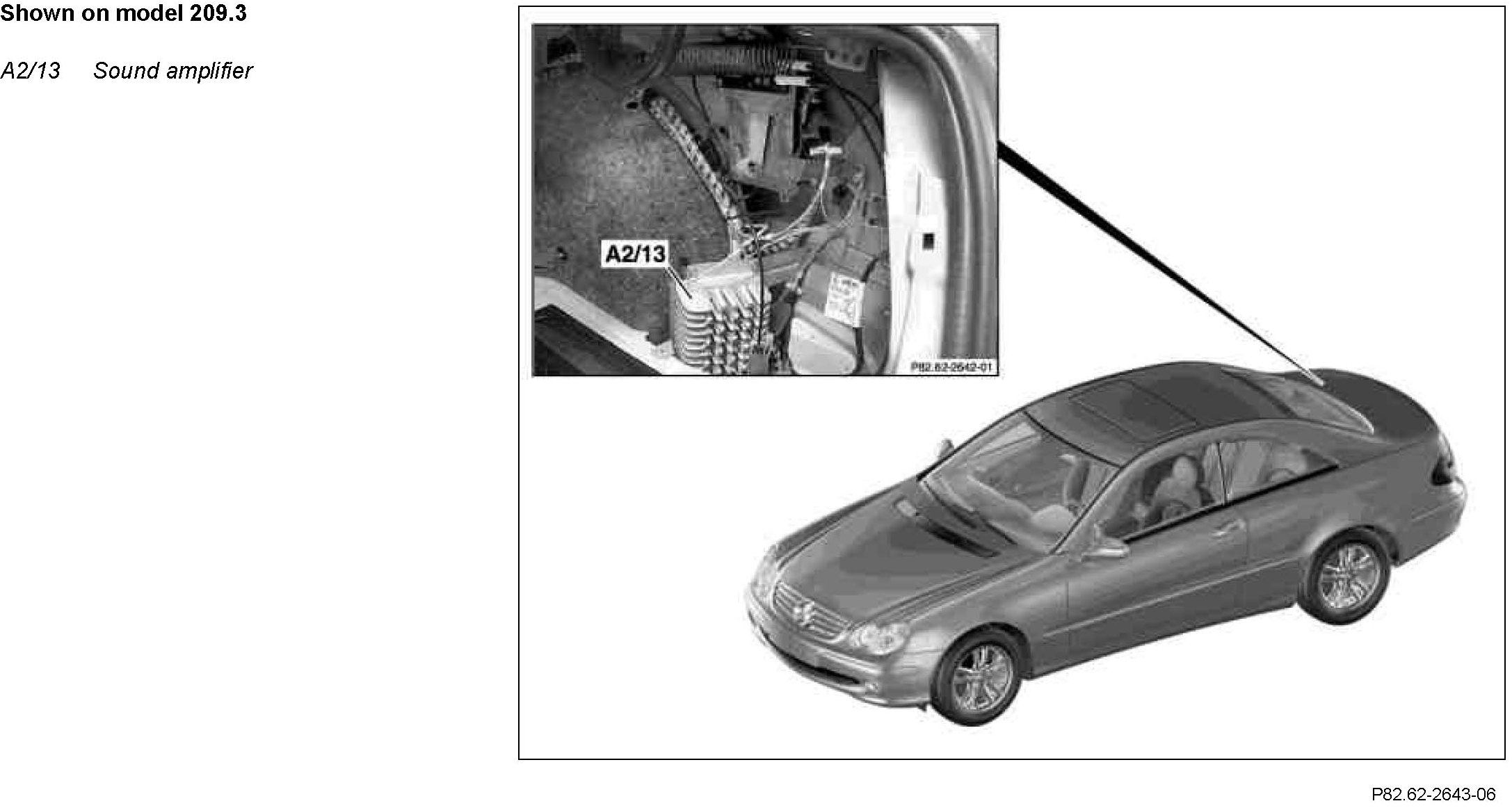

Component Identification:
