GF82.61-P-3012QMJ Navigation, Function



GF82.61-P-3012QMJ Navigation, Function
- with CODE (498) Japanese version






Navigation includes creating and outputting driving recommendations to guide the driver to the desired destination. The navigation processor of the COMAND operating, display and control unit (A40/3) continuously compares the route calculation data with the continuous position finding data and derives from this the measures for continued navigation.

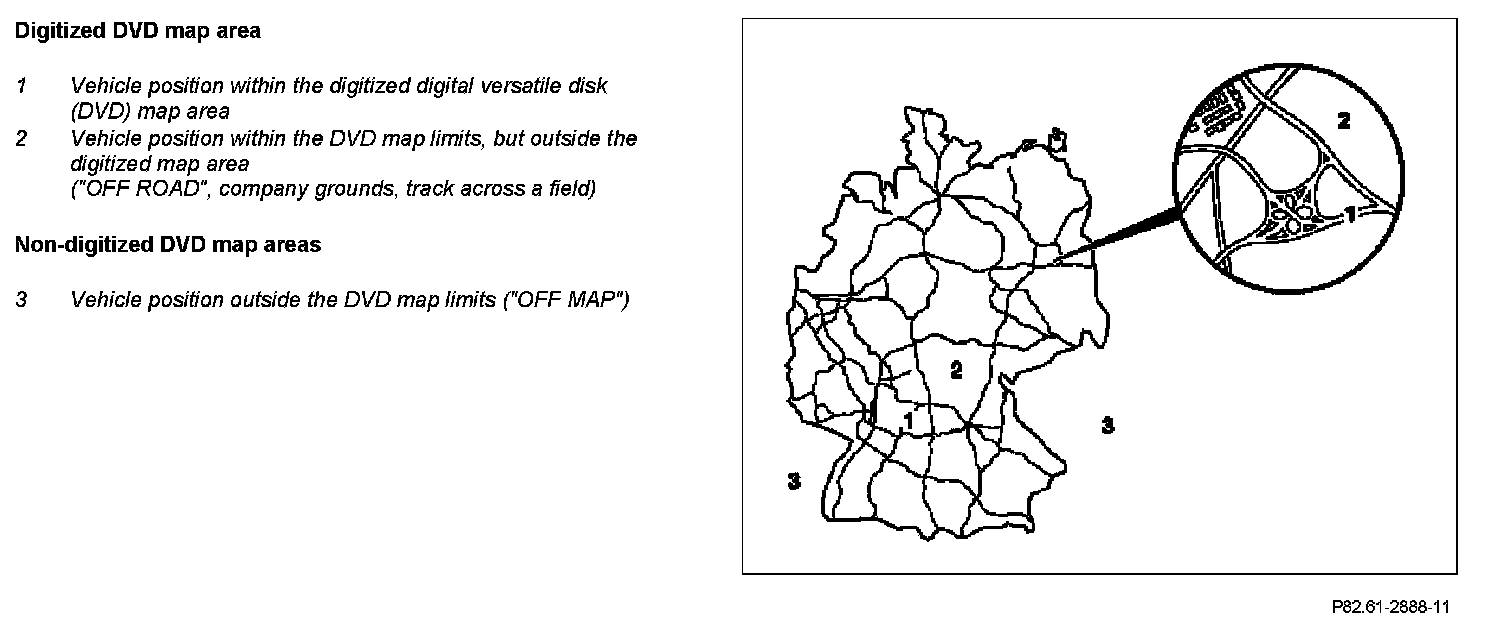

Depending on the position of the vehicle, a distinction can be made between the following two navigation system modes:
^ Navigation within the digitized DVD map area
^ Restricted navigation outside the digitized DVD map area
