AZ82.60-P-0014Q Retrofit Ipod

AZ82.60-P-0014Q Retrofit IPod
- with CODE (523) MB Audio 20 radio
- with CODE (525) MB Audio 50 APS radio
- with CODE (527) COMAND APS (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)
- with CODE (535) Audio 20 CD radio
- installation in the glove compartment
- except retrofitted hands-free system FSE11
- except retrofitted hands-free system FSE12

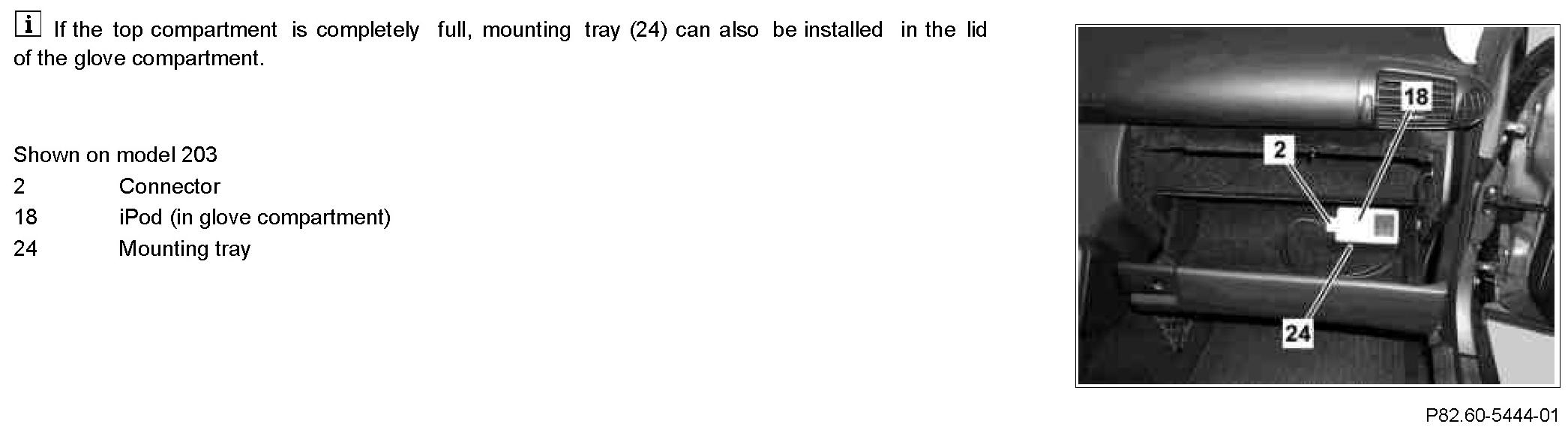

Component Identification:

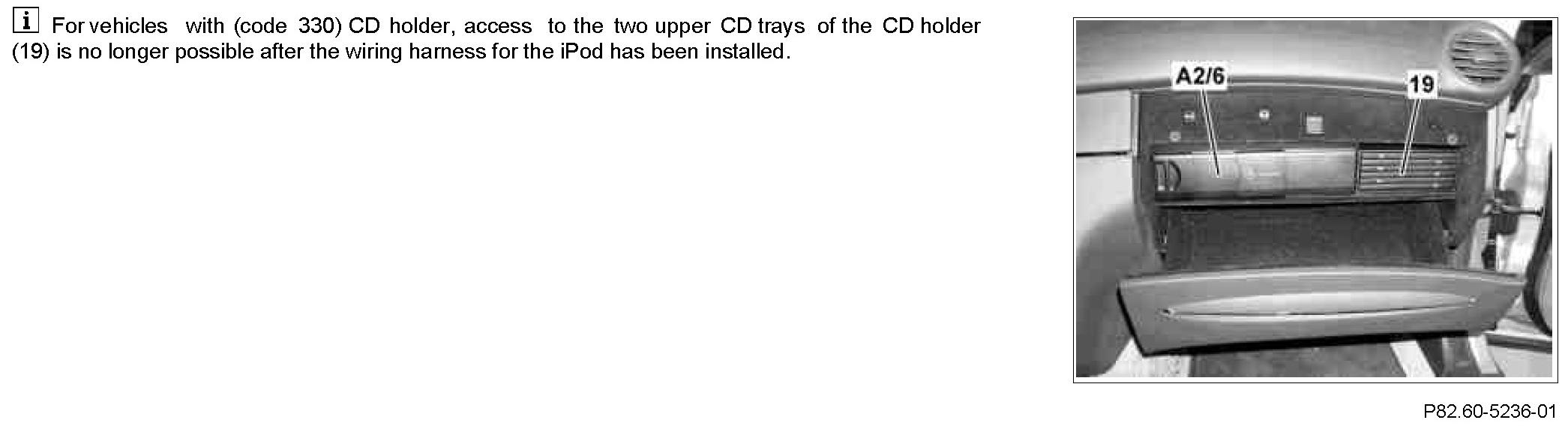

Component Identification:

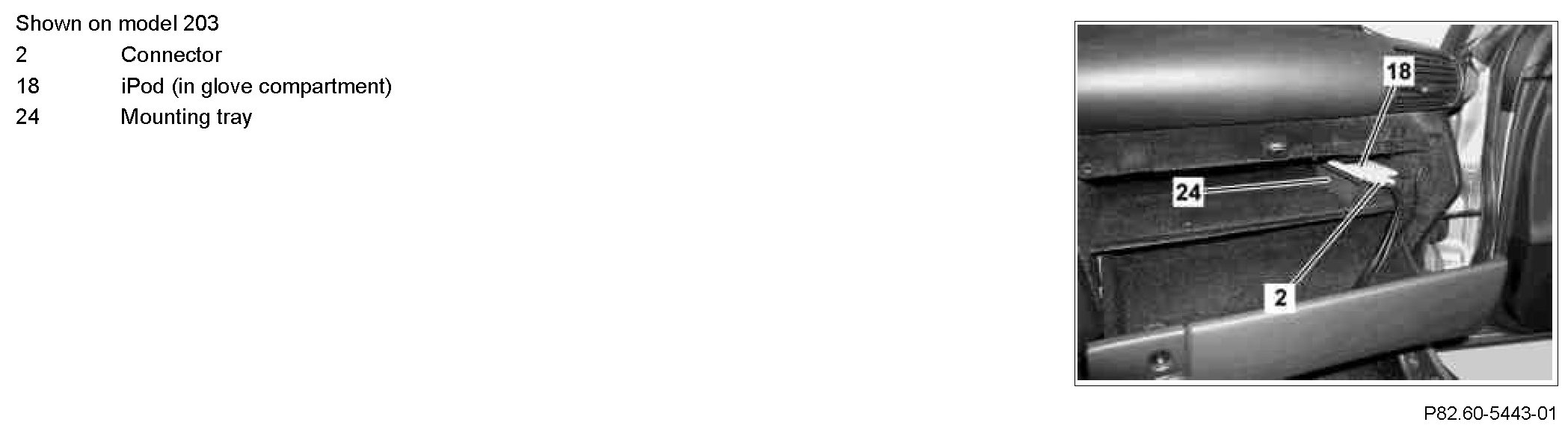

Component Identification:

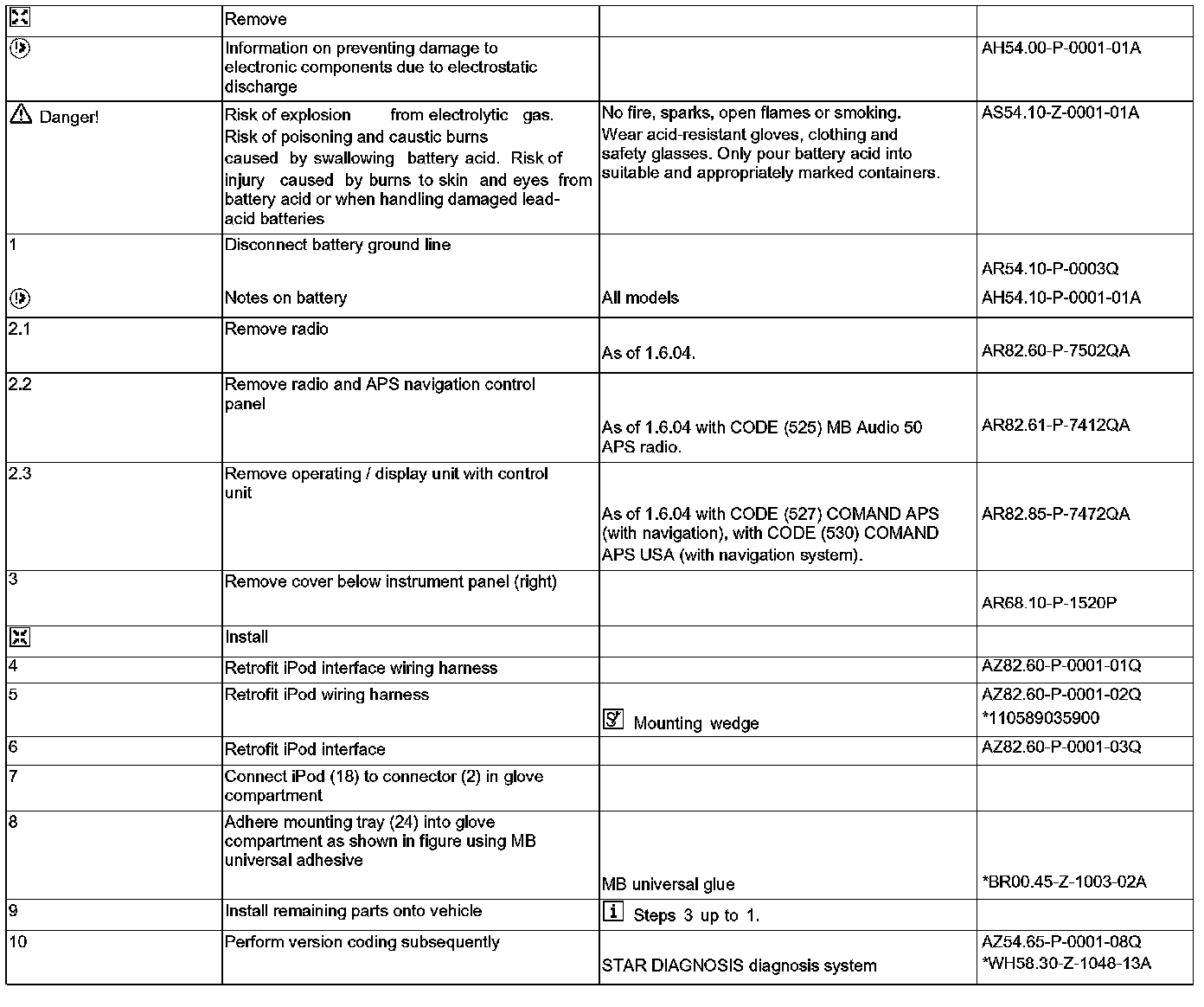

Steps 1 - 10:

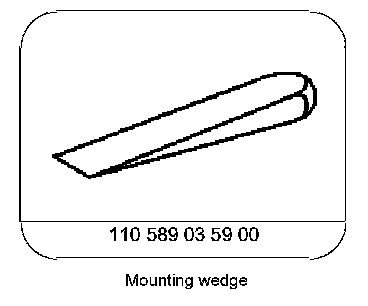

Special Tools:

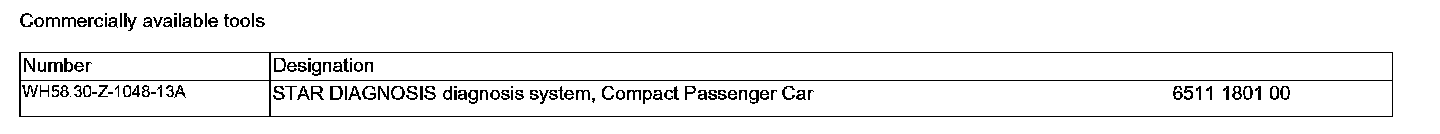

Commercially Available Tools:

Repair Materials:

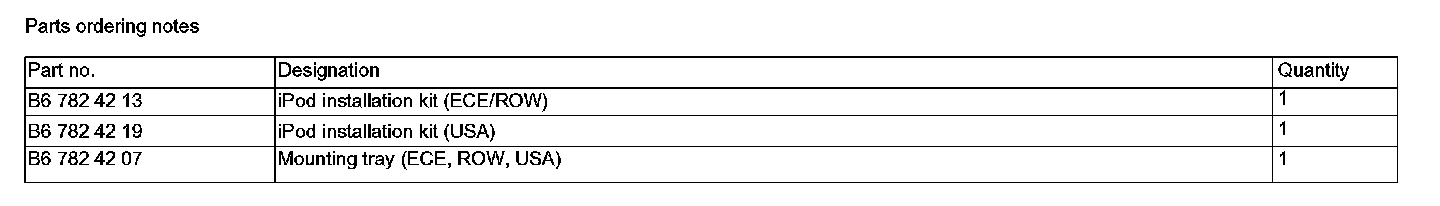

Parts Ordering Notes:
