AN82.60-P-0008QA Retrofit AUX Socket

AN82.60-P-0008QA Retrofit AUX Socket
- Model 209.3
- as of 212411

- Model 209.4
- as of 077926

- with CODE (523) MB Audio 20 radio
- with CODE (525) MB Audio 50 APS radio
- except CODE (990) AMG vehicles
- except CODE (494) USA version
- except CODE (498) Japan version

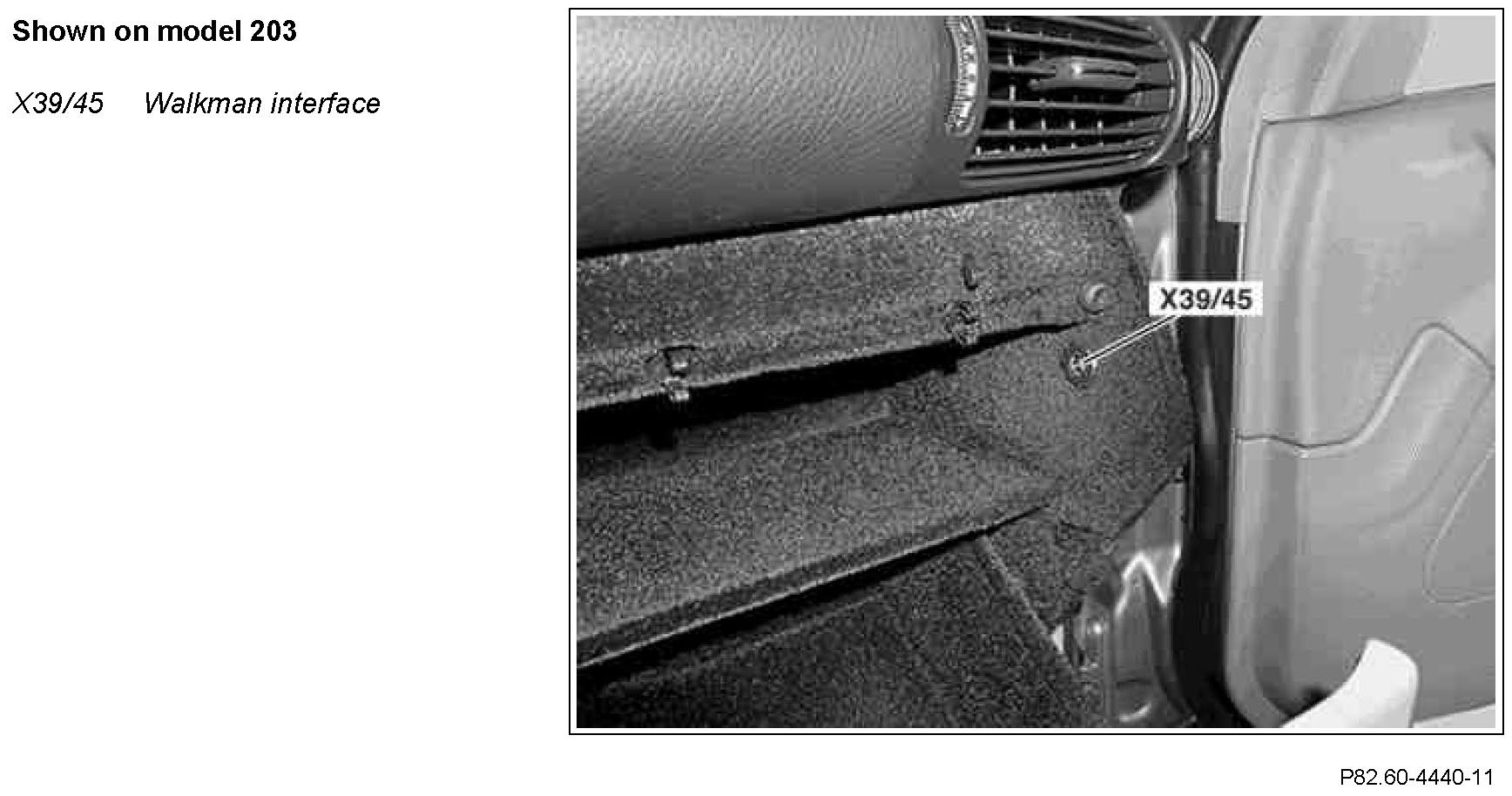

Component Identification:

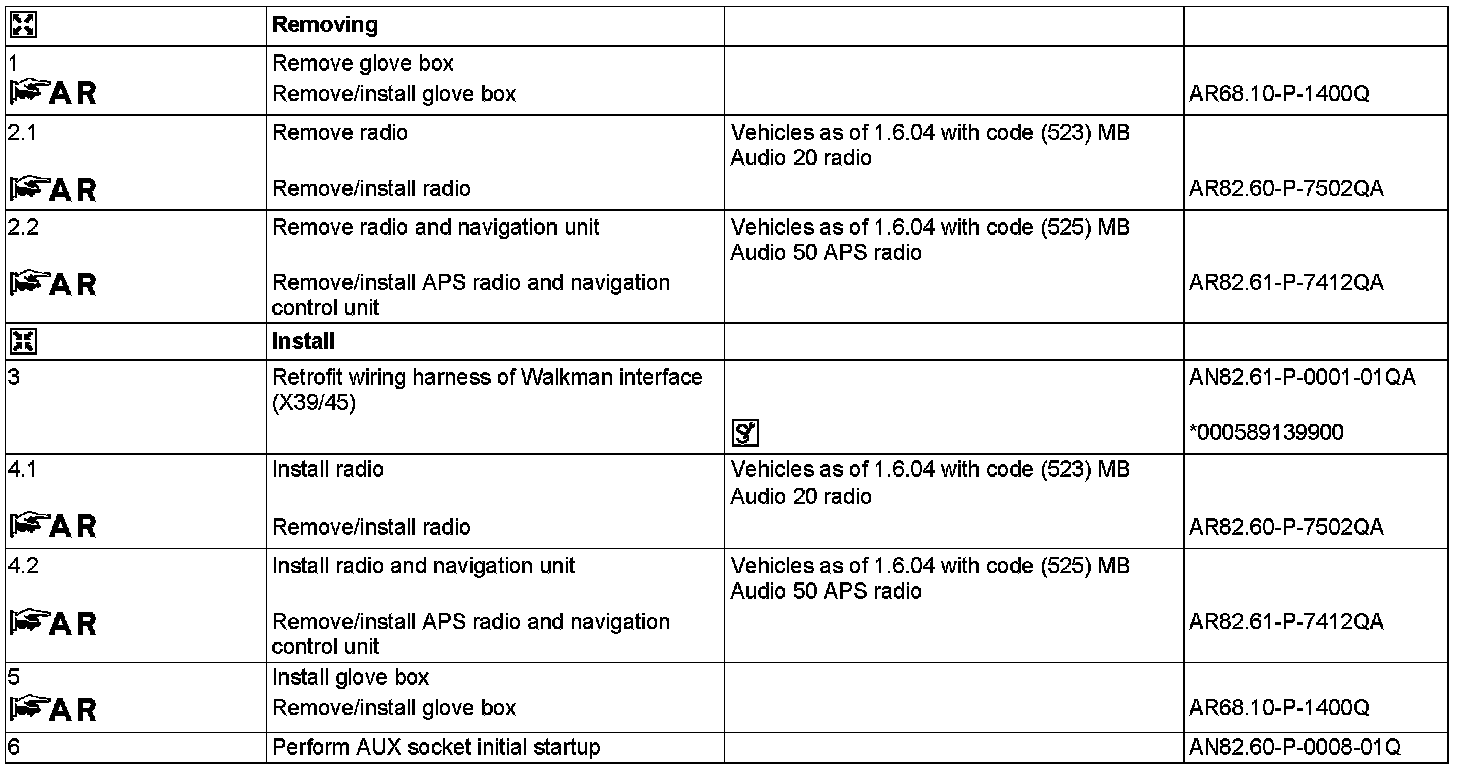

Steps 1 - 6:

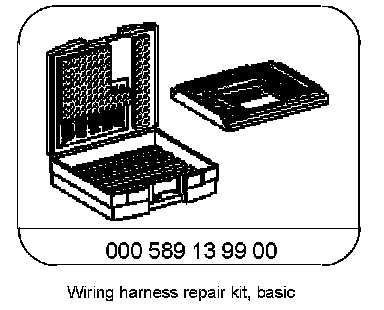

Special Tools:

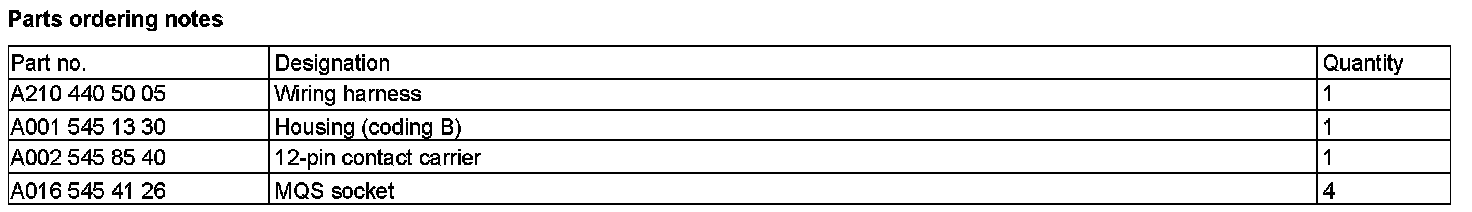

Parts Ordering Notes:
