AN82.60-P-0008Q Retrofit AUX Socket

AN82.60-P-0008Q Retrofit AUX Socket
- 209.3## 1F as of 1.6.04 up to 212410
- 209.4## 1T as of 1.6.04 up to 077925
- with CODE (523) MB Audio 20 radio
- with CODE (525) MB Audio 50 APS radio
- except CODE (990) AMG vehicles
- AUX socket in glove box

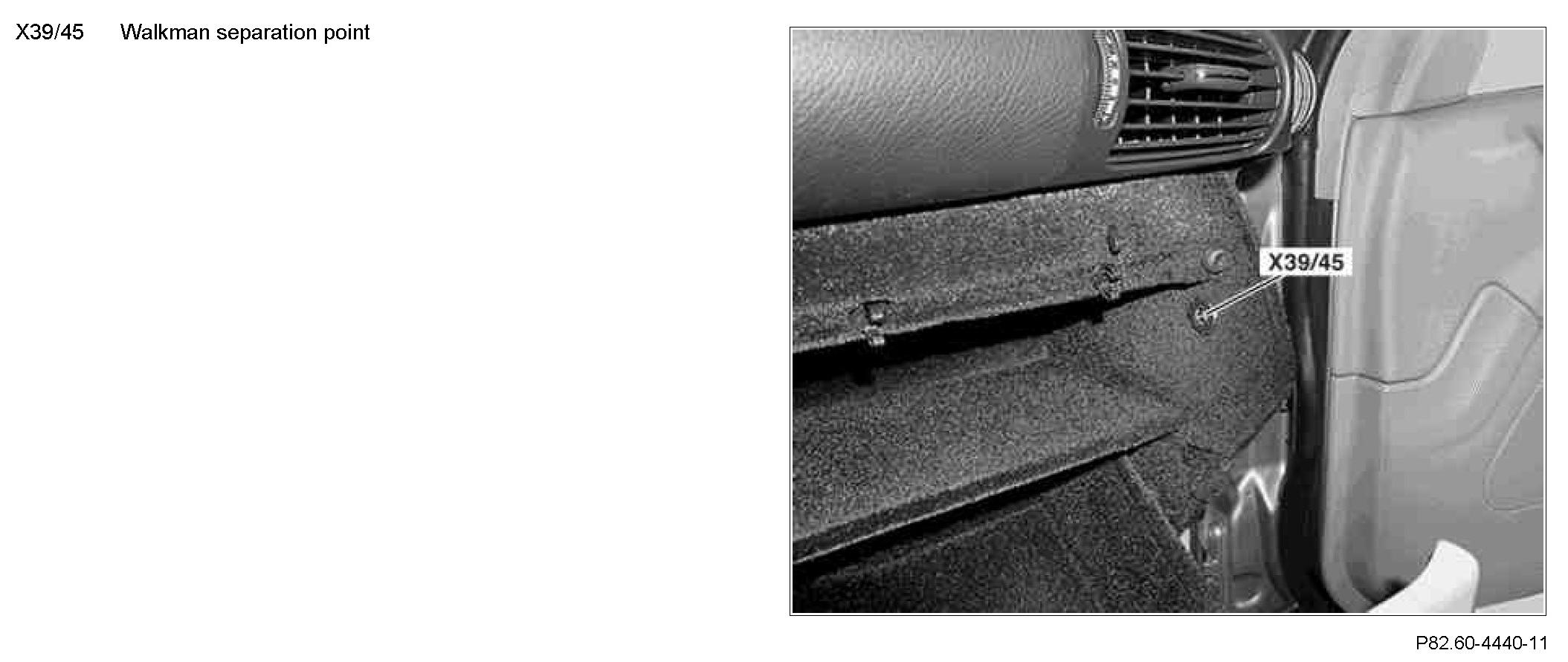

Component Identification:

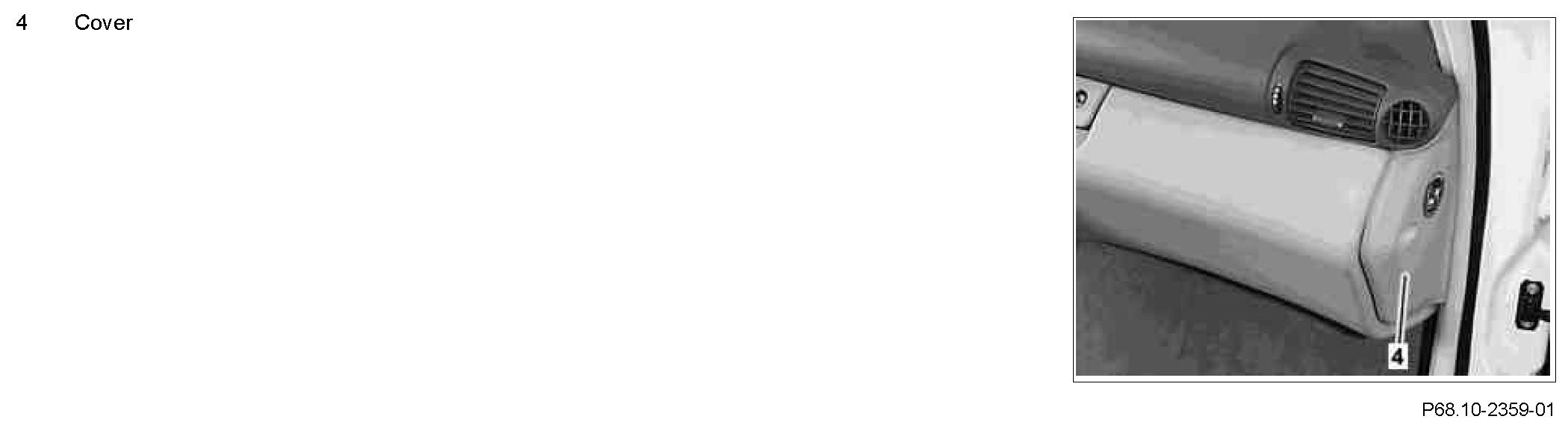

Component Identification:

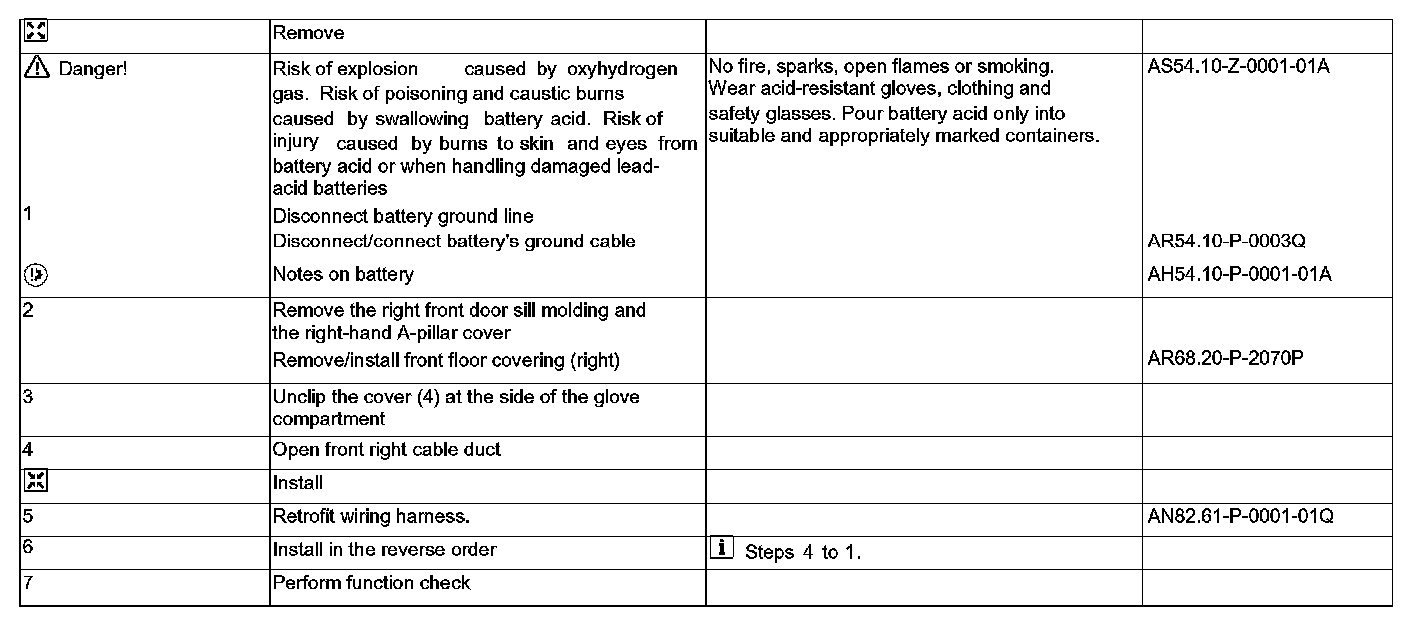

Steps 1 - 7:

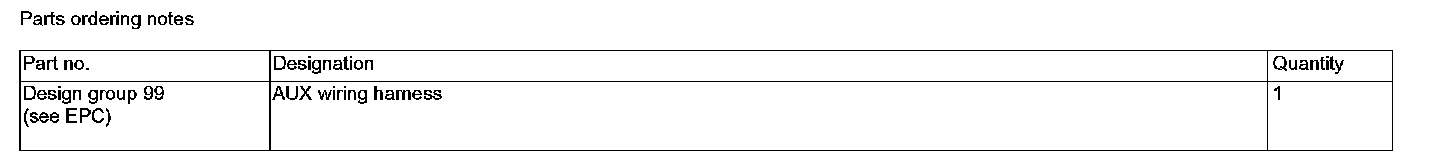

Parts Ordering Notes:
