Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Emergency Contact Button >> Description and Operation >> GF82.95-P-4201QJ E-Call Pushbutton Switch, Location/Task/Design/Function

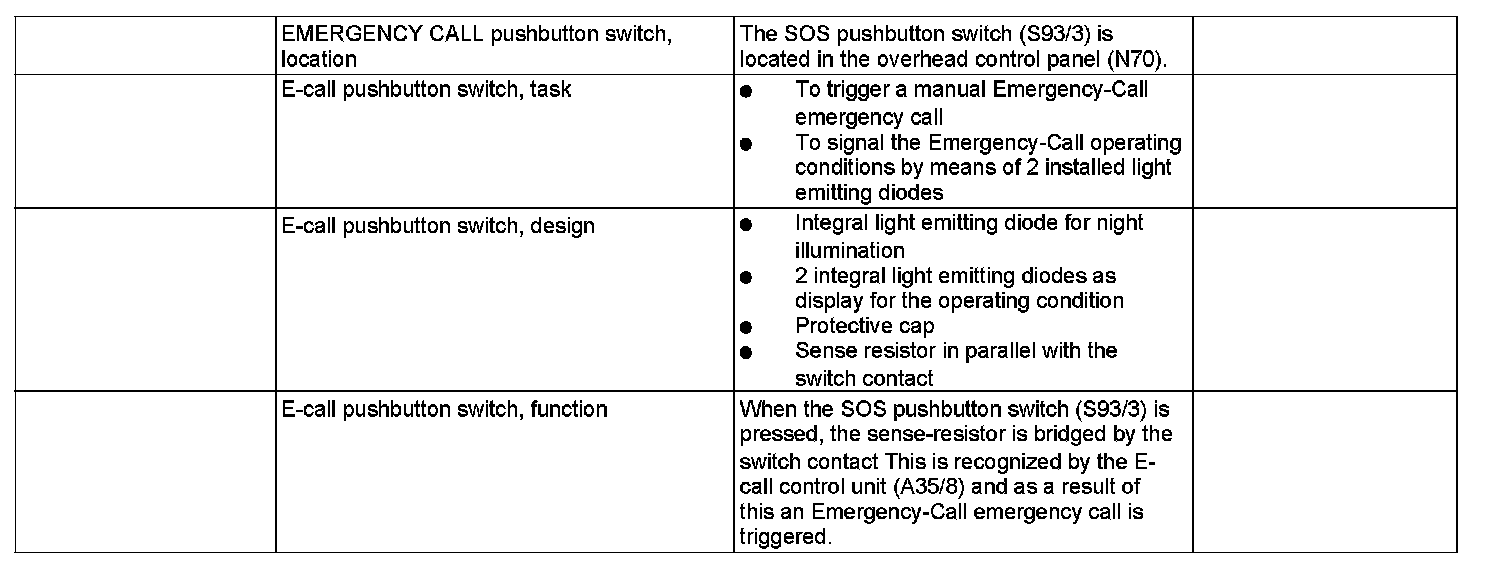

GF82.95-P-4201QJ E-Call Pushbutton Switch, Location/Task/Design/Function



GF82.95-P-4201QJ E-call Pushbutton Switch, Location/task/design/function
- with CODE (349) E-Call emergency call system
- with CODE (498) Japanese version
- with CODE (491) U.S. version

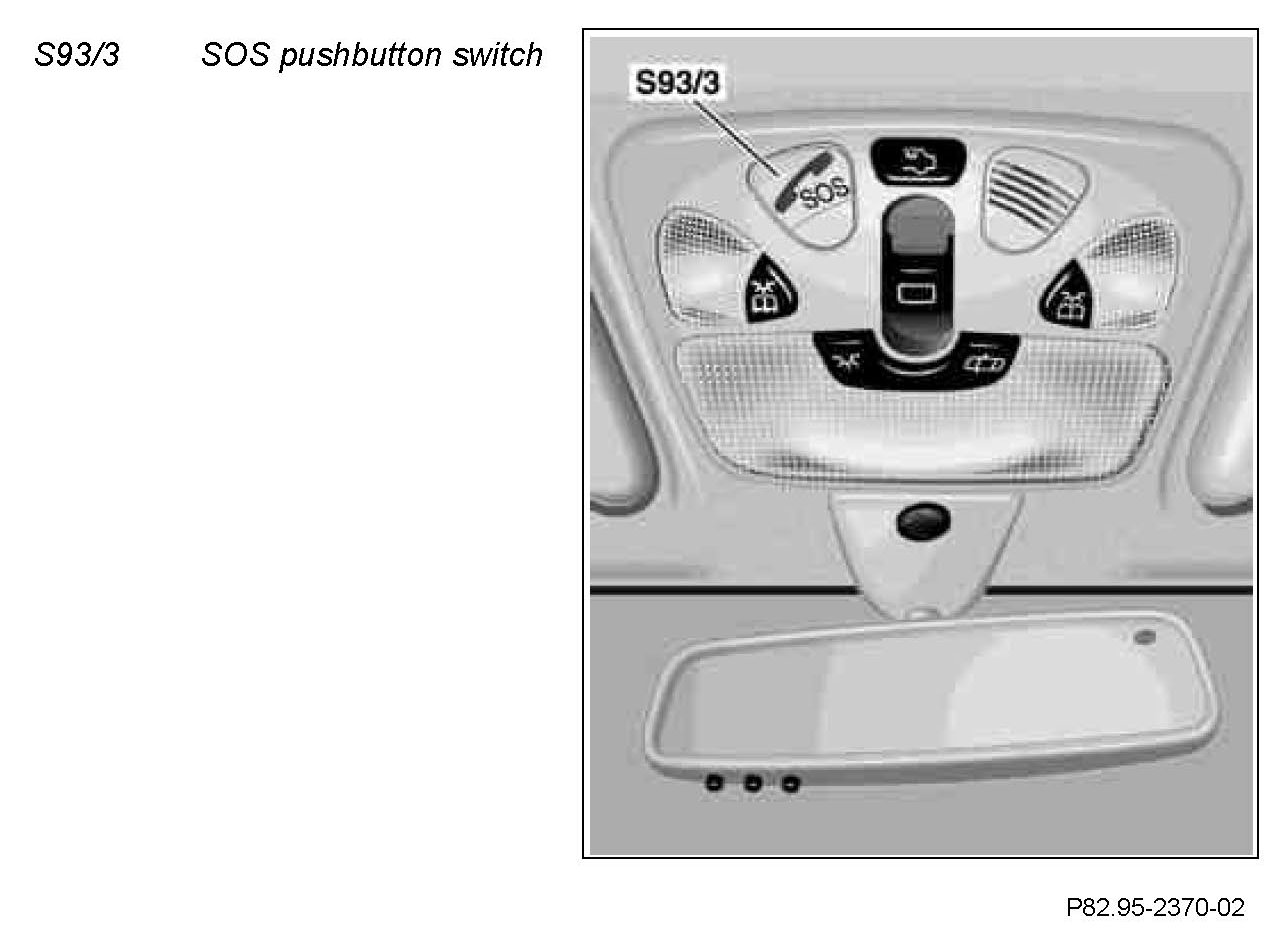

Component Identification:
