AR54.65-P-0004P Remove/Install Parktronic System (PTS) Warning Display In Rear Dome Lamp

AR54.65-P-0004P Remove/Install Parktronic System (PTS) Warning Display In Rear Dome Lamp
- with CODE (220) Parktronic system (PTS)

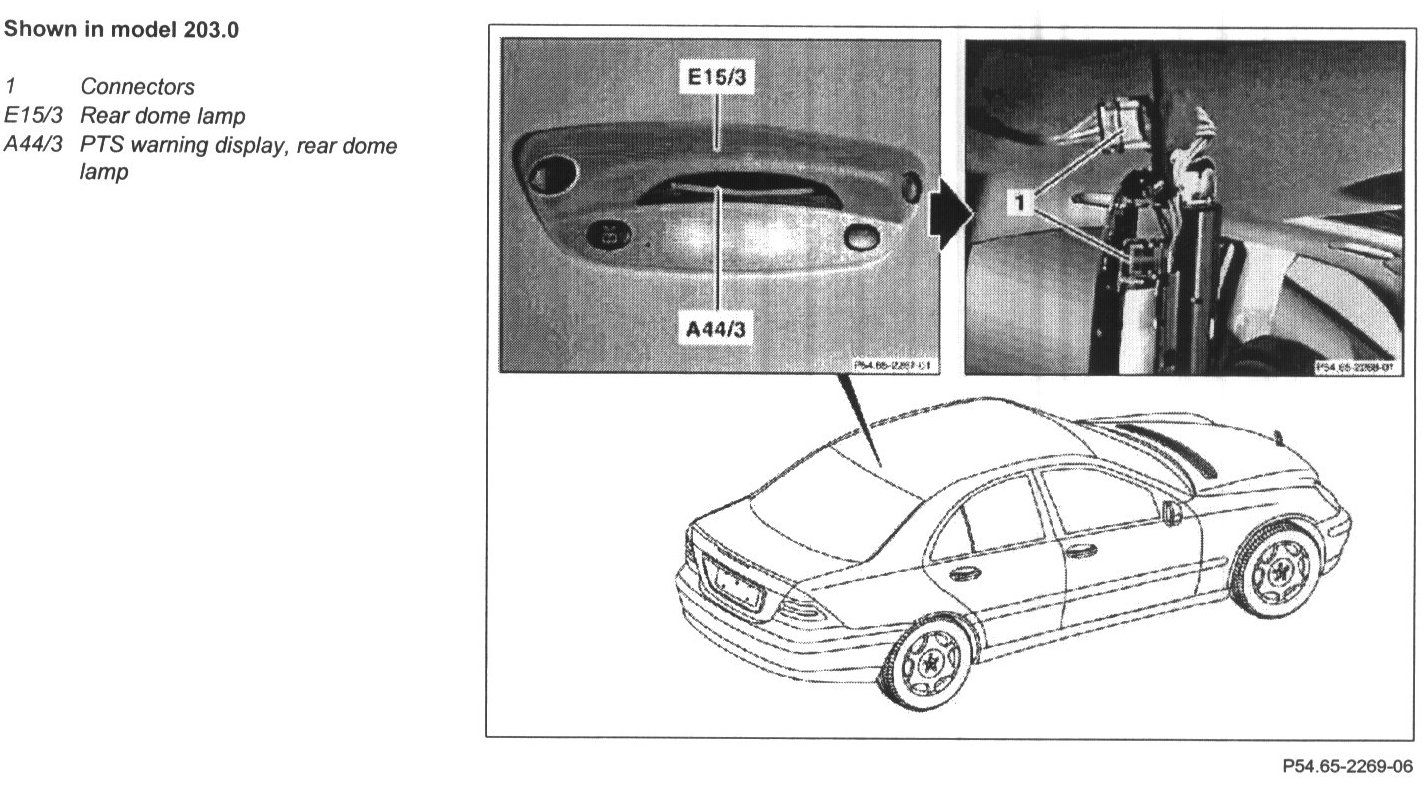

Shown In Model 203:

DANGER:
- Risk of explosion from explosive gas Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses Pour battery electrolyte only into suitable and appropriately marked containers

1 Disconnect ground cable of battery
2 Unclip rear dome lamp (E15/3)

NOTE: PTS warning display, rear dome lamp (A44/3) is integrated in the rear dome lamp (E15/3)

3 Disconnect connectors (1)
4 Install in the reverse order
5 Perform basic programming

NOTE: Only if no quiescent current retention device has been used

6 Read diagnostic trouble code memory and erase
7 Check for proper function
