Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Service and Repair >> Removal and Replacement >> AR82.70-P-8919Q Remove/Install Contact Plate For Portable CTEL Holder (UPCI) In the Armrest

AR82.70-P-8919Q Remove/Install Contact Plate For Portable CTEL Holder (UPCI) In the Armrest



AR82.70-P-8919Q Remove/Install Contact Plate For Portable CTEL Holder (UPCI) In the Armrest
- with CODE (386) Preinstallation for telephone "Handy", UPCI system

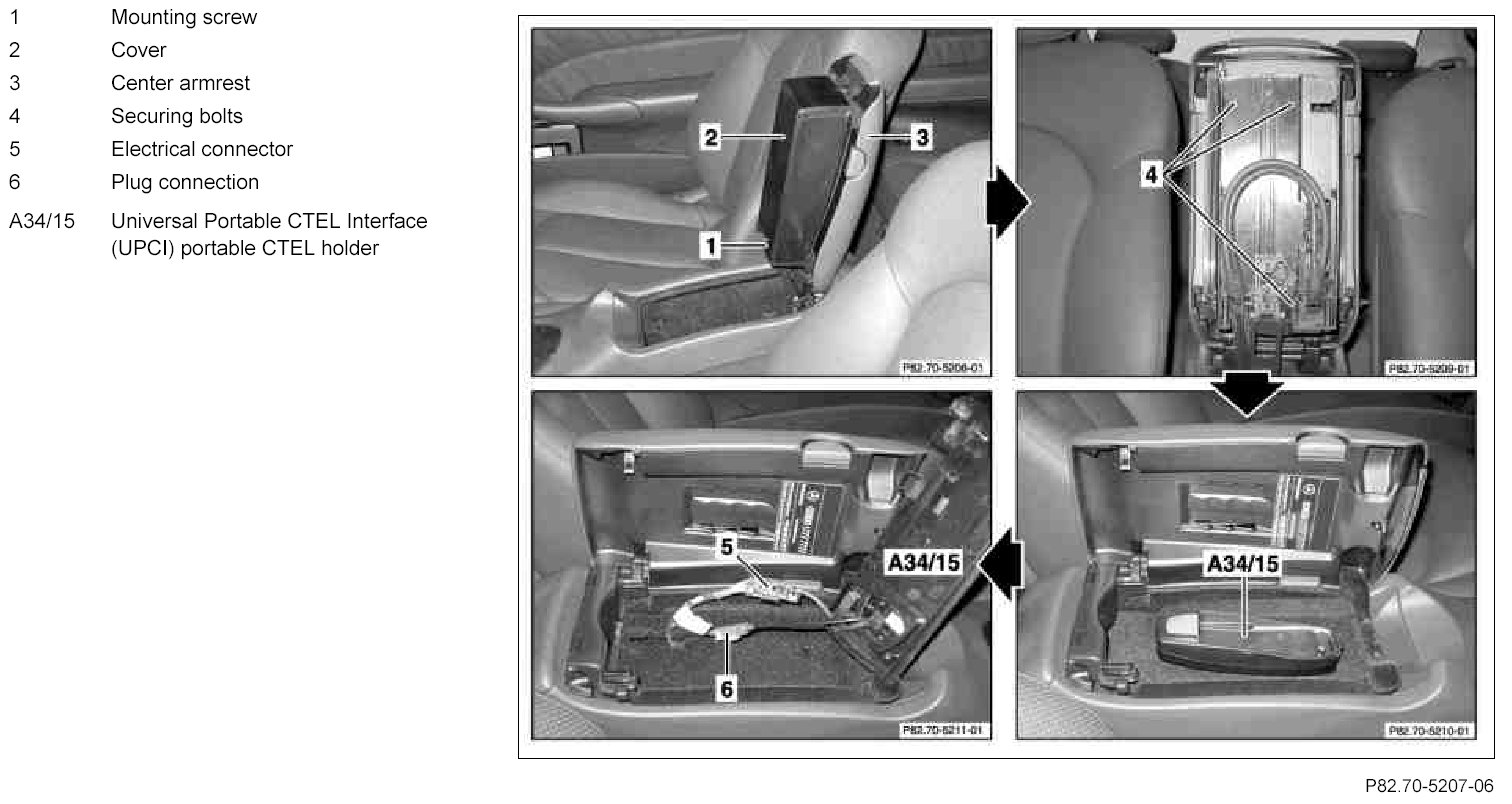

Component Identification:

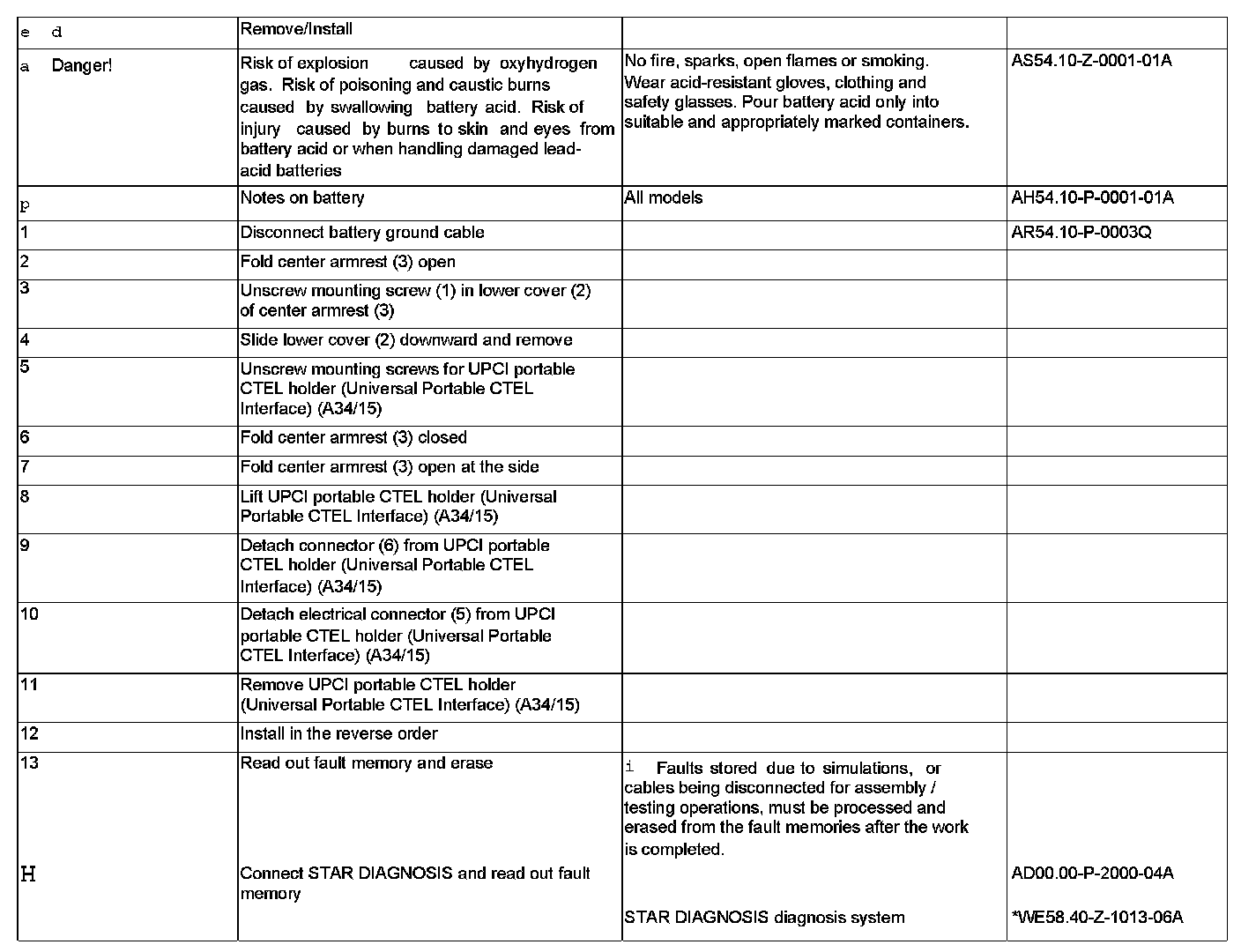

Steps 1 - 13:
