AZ82.70-P-0001-07P Retrofit Interface

AZ82.70-P-0001-07P Retrofit Interface

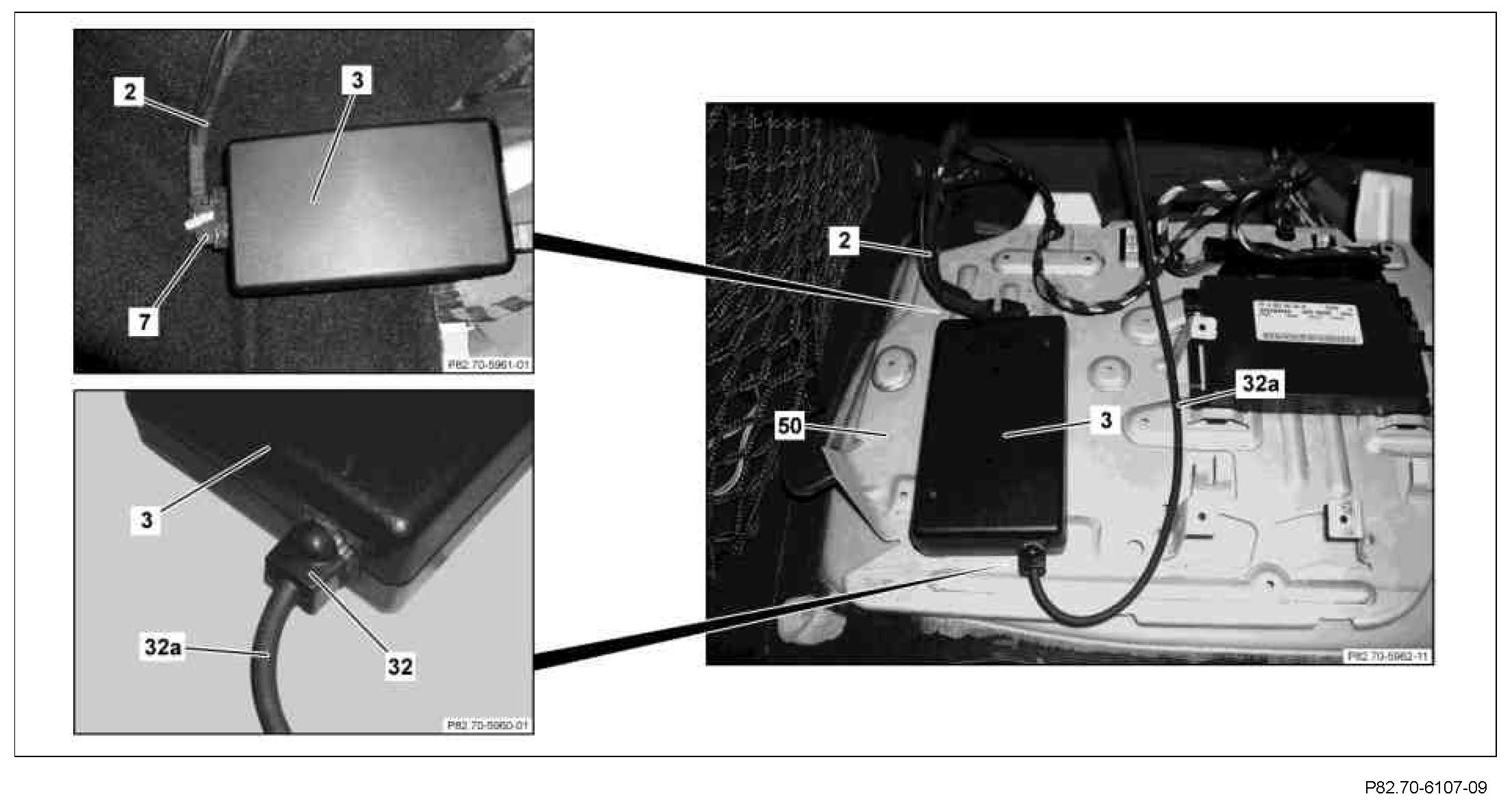

1 Contact telephone console (32) of wiring harnesses (32a) and connector interface (7) of the wiring harness FSE 12 (2) at the hands-free system interface (3).

The connections are coded mechanically and can therefore not be mixed up.

2 Fasten the hands-free system interface (3) to the foot support (50) with the two sheet metal screws attached.

Shown on model 203
