AZ82.70-P-0001-04P Retrofit Wiring Harness
AZ82.70-P-0001-04P Retrofit Wiring Harness.
- with CODE (810) Sound system

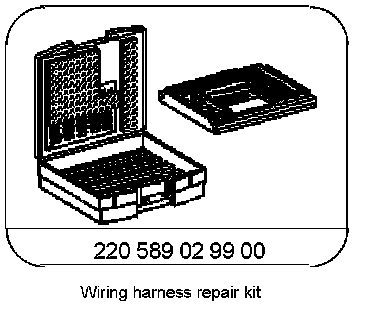

Special Tools:

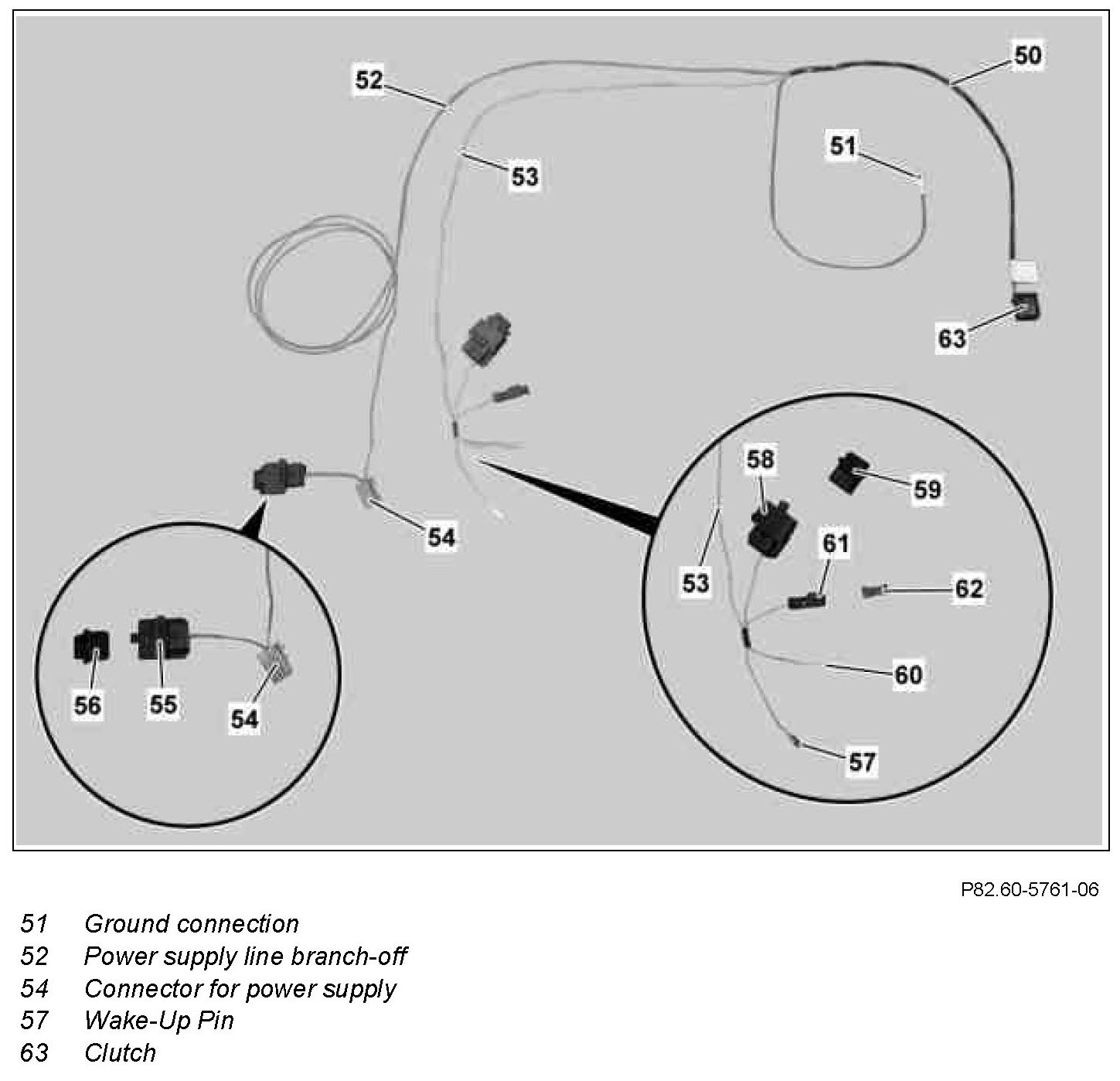

1 Disconnect coupling housing (56) from plug (55) of SDAR wiring harness (50).
The coupling housing (56) is still required.
2 Disconnect coupling housing (59) from plug (58) of SDAR wiring harness (50).
The coupling housing (59) is still required.
3 Disconnect coupling housing (62) from plug (61) and pin wake-up pin (60) of wake-up line branch-off (53) of SDAR wiring harness (50) into contact cavity 1 of coupling housing (62).
Component Identification:
4 Connect coupling housing (62) to plug (61) of wake-up line branch-off (53) of SDAR wiring harness (50).

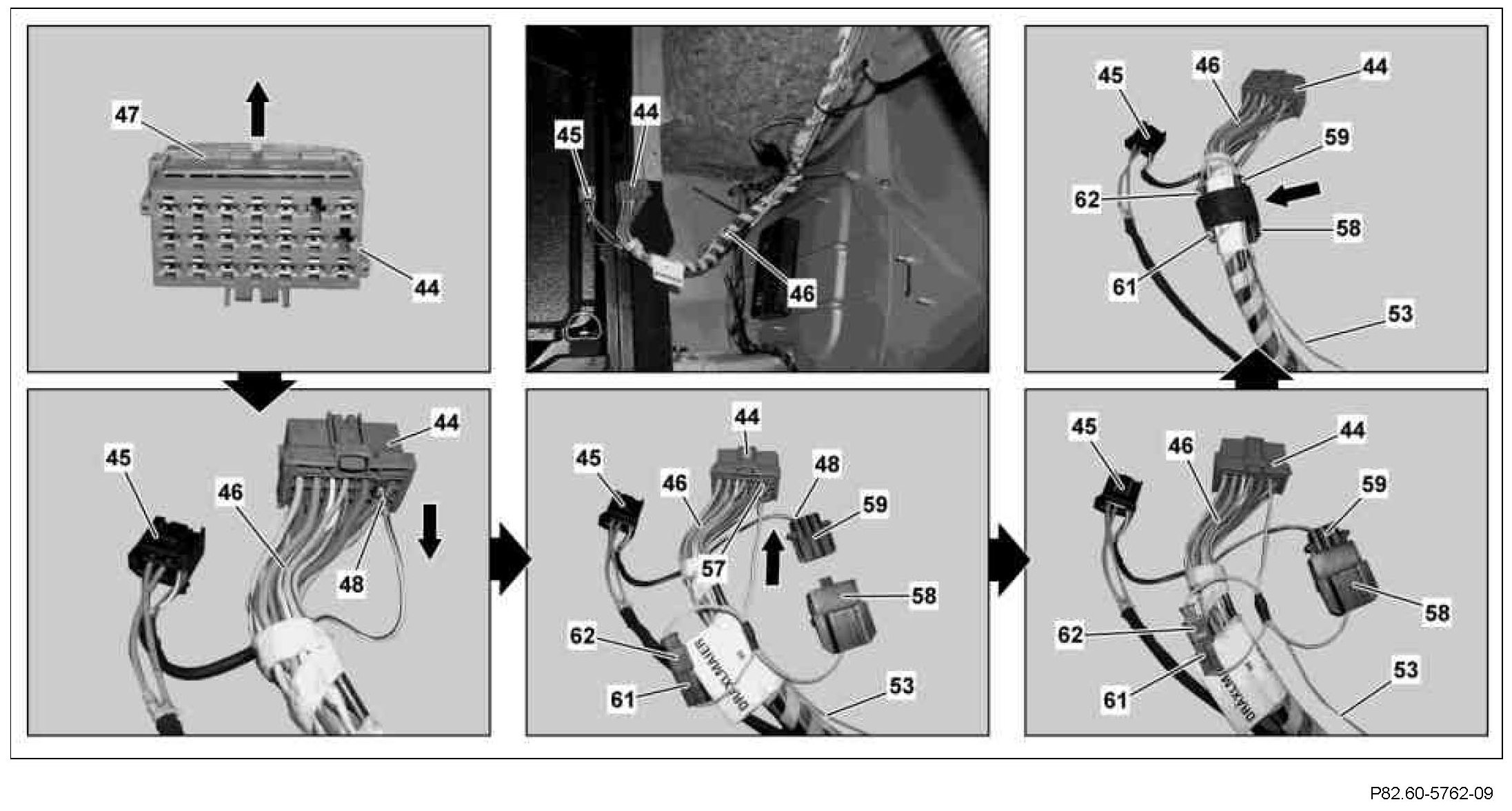

5 Open lock (47) of sound amplifier connector (44) of on-board wiring harness (46).
6 Unpin blue/black line (48) of on-board wiring harness (46) from contact cavity 16 of 21-pin sound amplifier connector (44) and pin into contact cavity 1 of coupling housing (59).
7 Pin wake-up pin (57) of wake-up line branch-off (53) of SDAR wiring harness into contact cavity 16 of 21-pin sound amplifier connector (44).
8 Close lock (47) of sound amplifier connector (44) of on-board wiring harness (46).
9 Connect coupling housing (59) to plug (58) of wake-up line branch-off (53) of SDAR wiring harness (50).
10 Secure connector comprising coupling housing (59) and plug (58), and connector comprising coupling housing (62) and plug (61) of wake-up line branch-off (53) of SDAR wiring harness together to on-board wiring harness (46) using self-adhesive felt as per picture.
Component Identification:

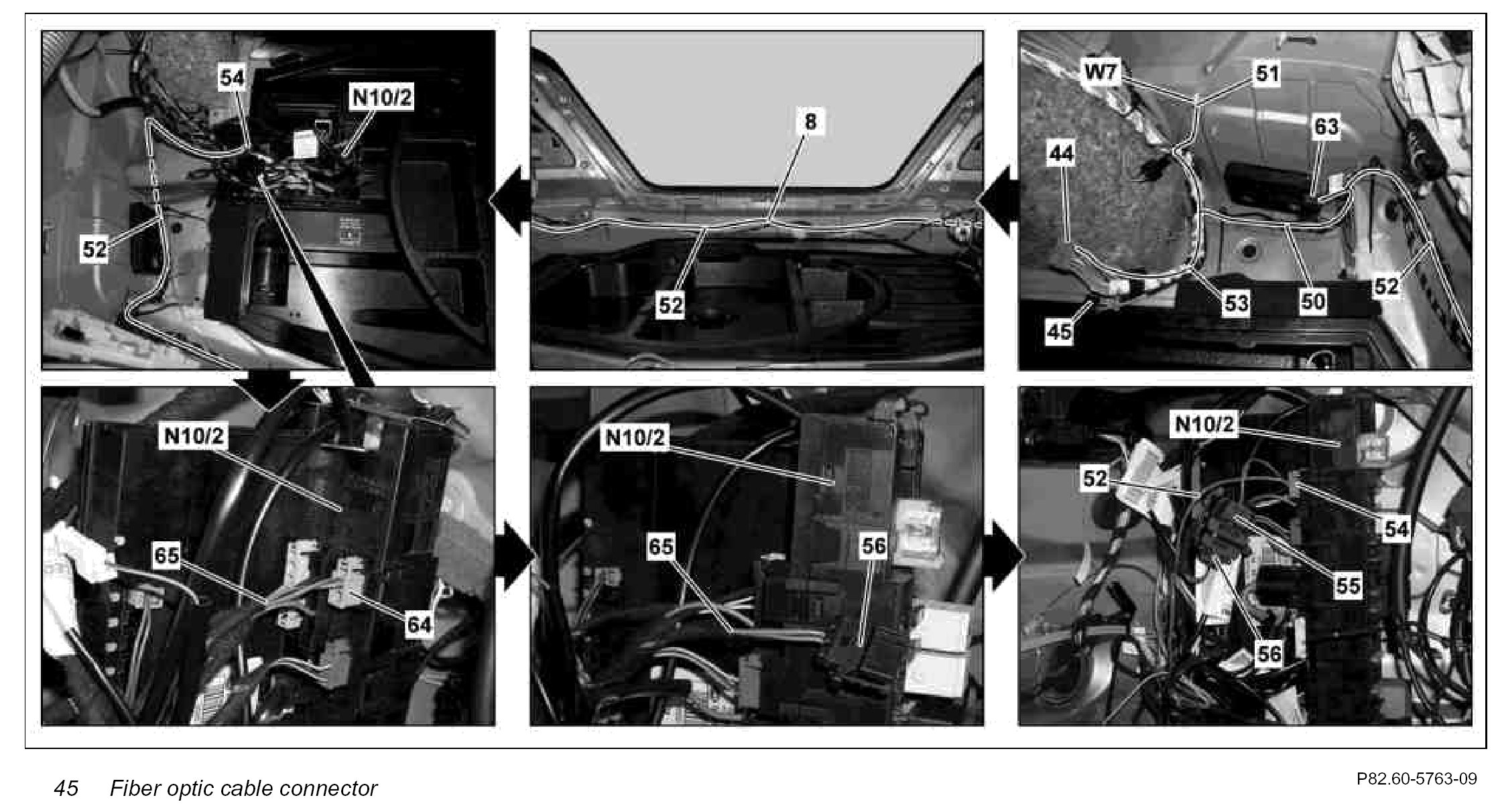

11 Route wake-up line branch-off (53) of SDAR wiring harness (50) as per picture and secure to on-board wiring harnesses.
12 Route SDAR wiring harness (50) as per picture and secure to on-board wiring harnesses.
13 Route ground connection (51) of SDAR wiring harness (50) as per picture, connect to ground (right wheelhouse in luggage compartment) (W7) and secure to on-board wiring harnesses.
14 Route power supply line branch-off (52) of SDAR wiring harness (50) to rear SAM control unit with fuse and relay module (N10/2) in luggage compartment as per picture and secure to on-board wiring harnesses together with antenna extension line (8).
Steps 15 and 16 below only need to be carried out for vehicles on which slot 5 on the rear SAM control unit with fuse and relay module (N10/2) is factory-fitted with an on-board 2-pin green connector (64).
15 Disconnect on-board 2-pin green connector (64) from slot 5 of rear SAM control unit with fuse and relay module (N10/2).
16 Unpin on-board red/black line (65) from on-board 2-pin green connector (64) and pin into contact cavity 2 of coupling housing (56).
The on-board 2-pin green connector (64) is no longer required.
17 Connect coupling housing (56) to plug (55) of power supply line branch-off (52) of SDAR wiring harness (50).
18 Connect power supply connector (54) of power supply line branch-off (52) of SDAR wiring harness (50) to slot 5 of rear SAM control unit with fuse and relay module (N10/2).
19 Secure connector comprising coupling housing (56) and plug (55), and power supply line branch-off (52) of SDAR wiring harness (50) to on-board wiring harnesses as per picture.
20 Fit 7.5 amp fuse at fuse slot 16 of rear SAM control unit with fuse and relay module (N10/2).
Depending on the special equipment, a 7.5 amp fuse may already be fitted at fuse slot 16 of the rear SAM control unit with fuse and relay module (N10/2).
The connector (63) is connected to the SDAR control unit at a later stage.
