GF82.70-P-0003-01P Cellular Telephone (900 MHz GSM) Arrangement of Components

GF82.70-P-0003-01P Cellular Telephone (900 MHz GSM) Arrangement Of Components
- with CODE (853) MB standard cellular telephone
- with CODE (854) MB portable cellular telephone

Component Identification:

Loudspeaker output for the hands-free system is accomplished via the entire speaker system.

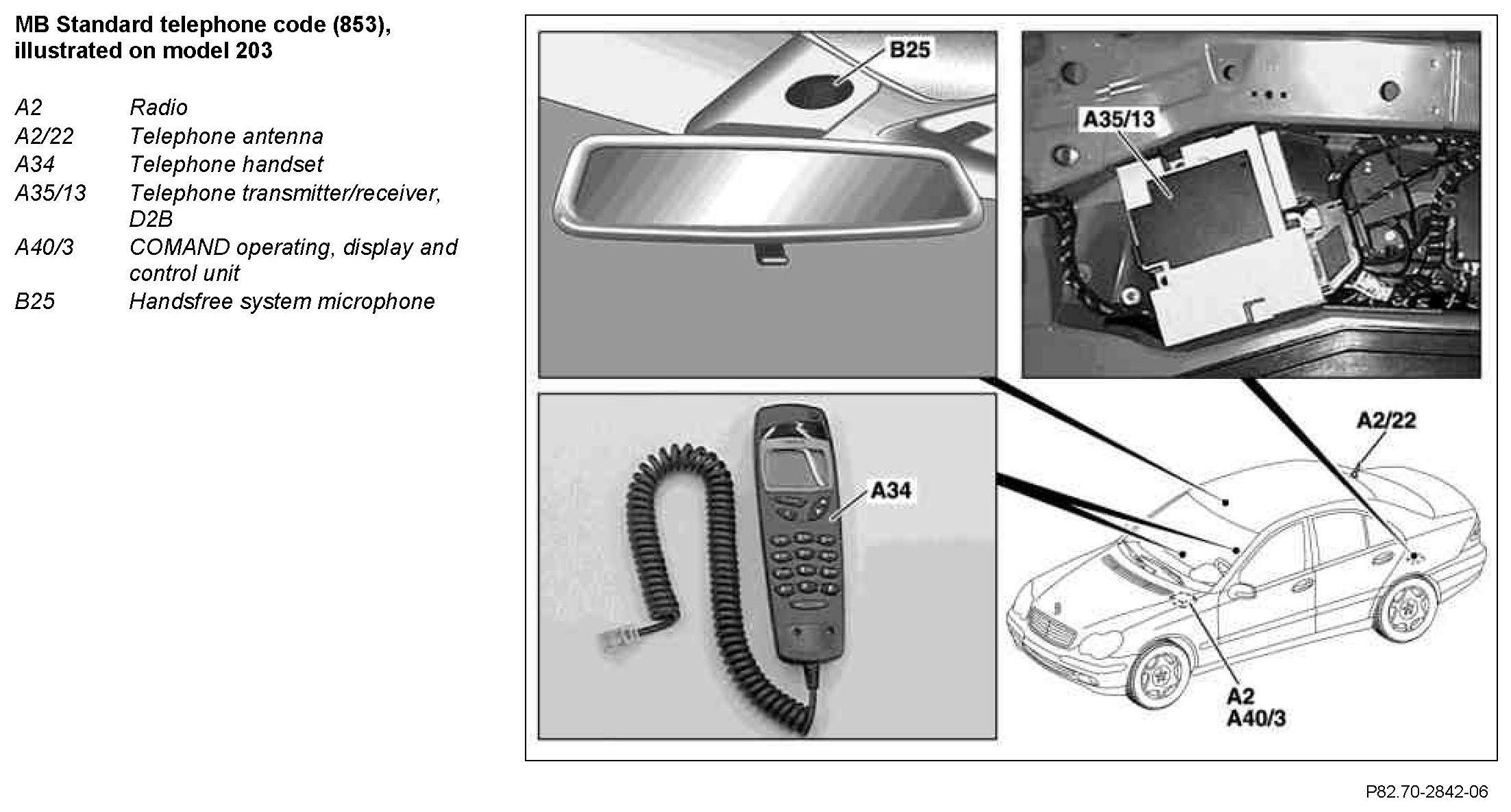

Telephone handset (A34) is installed in center armrest (armrest module).

The telephone transmitter/receiver, D2B (A35/13) in model 209 is located in the center of the control unit carrier of the trunk.

The handsfree system microphone in model 209.4 is located in the overhead control panel control unit (N70).

Component Identification:

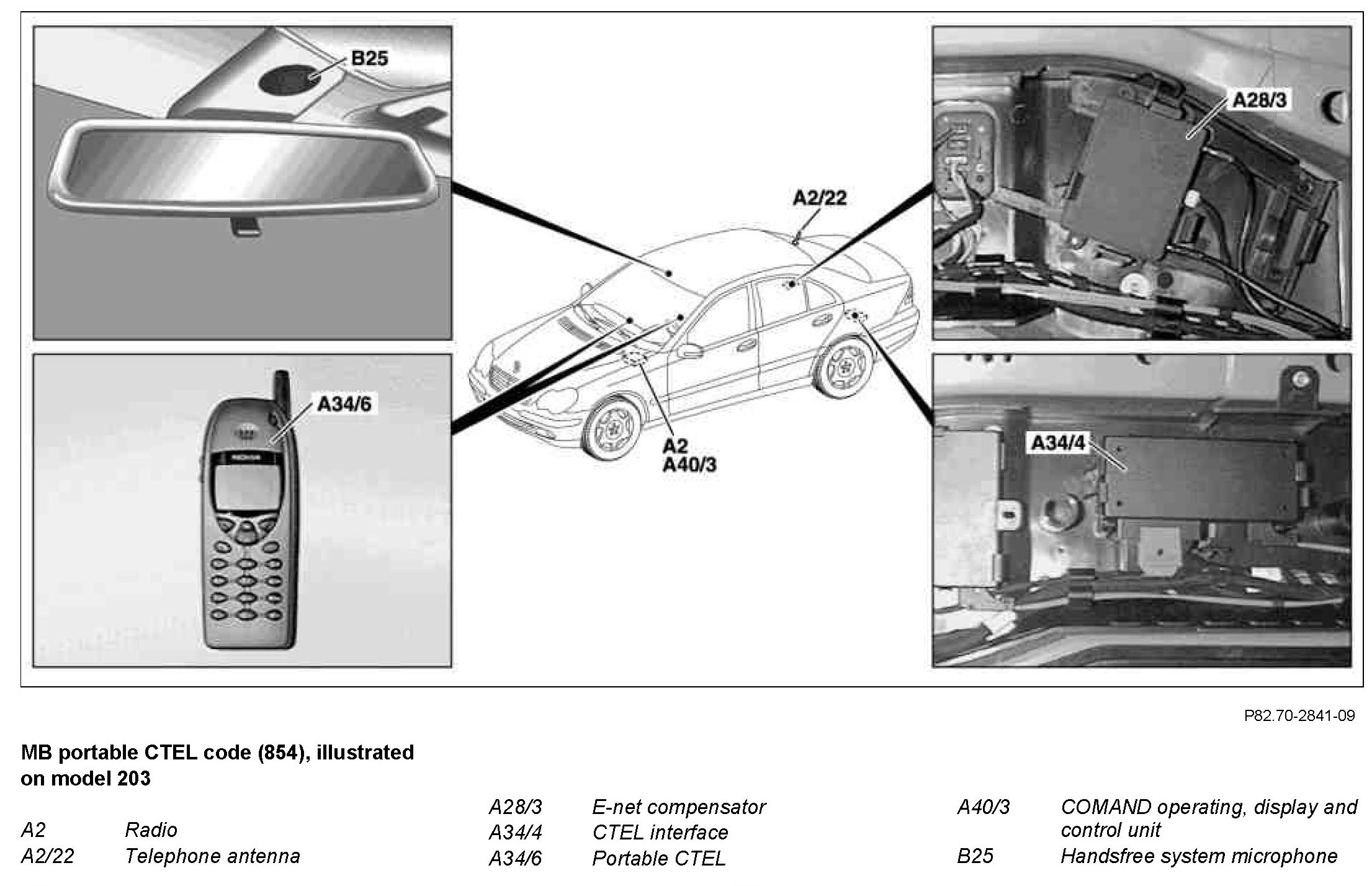

Portable CTEL (A34/6) installation locations:
^ In center armrest (in combination with COMAND)
^ On the center console (dome) (in combination with radio)

The telephone interface (A34/4) in model 209 is located in the center of the control unit carrier of the trunk.
The handsfree system microphone in model 209.4 is located in the overhead control panel control unit (N70).
