Removal and Replacement

AR82.70-P-8969Q Remove/Install Hands-Free Microphone
- with CODE (853) MB standard cellular telephone
- with CODE (854) MB portable cellular telephone
- with CODE (855) TELE AID







1 Remove overhead control panel control module

NOTE: Only unplug hands-free system microphone connector (B25/x1).

2 Remove inside rearview mirror

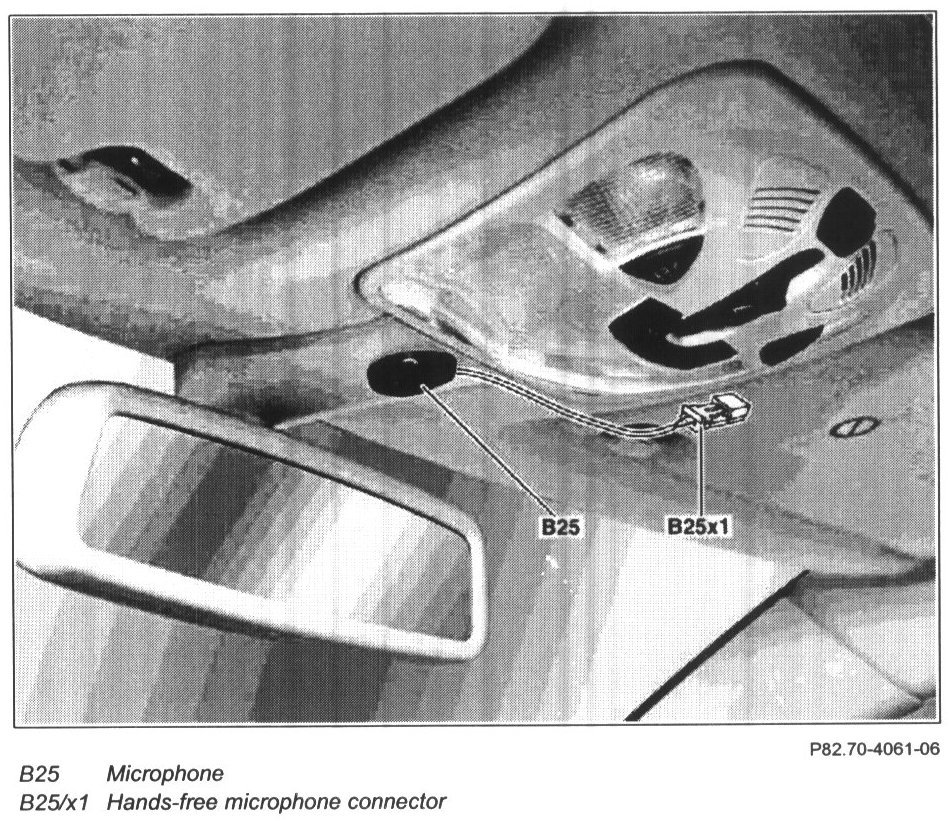

3 Unclip microphone (B25)
4 Install in the reverse order
