AZ82.70-P-0005-08P Retrofit Microphone For Hands-Free System

AZ82.70-P-0005-08P Retrofit Microphone For Hands-Free System

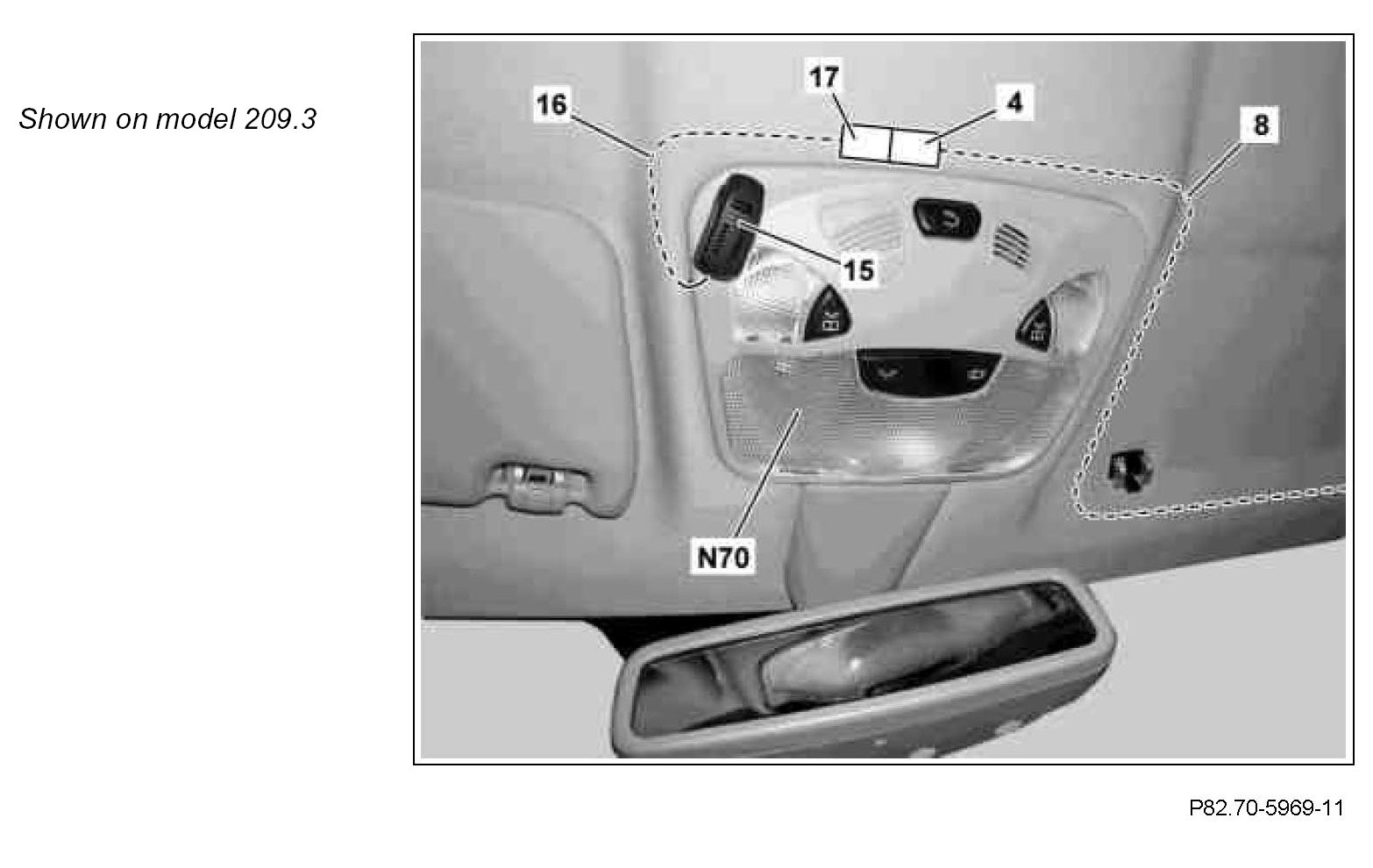

1 Connect the microphone connector (4) of the microphone branch-off line (8) to the microphone plug (17) of the microphone line (16).
2 Glue microphone (15) as shown onto the overhead control panel control unit (N70).
3 Route microphone line (16) as shown onto the overhead control panel control unit (N70).
