Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Phone >> Service and Repair >> Removal and Replacement >> AR82.70-P-8951P Remove/Install Antenna

AR82.70-P-8951P Remove/Install Antenna



AR82.70-P-8951P Remove/Install Antenna
- with CODE (354) Telephone antenna (D and E nets)
- with CODE (387) Preinstallation for telephone "Handy", UPCI system
- with CODE (359) TELE AID emergency call system

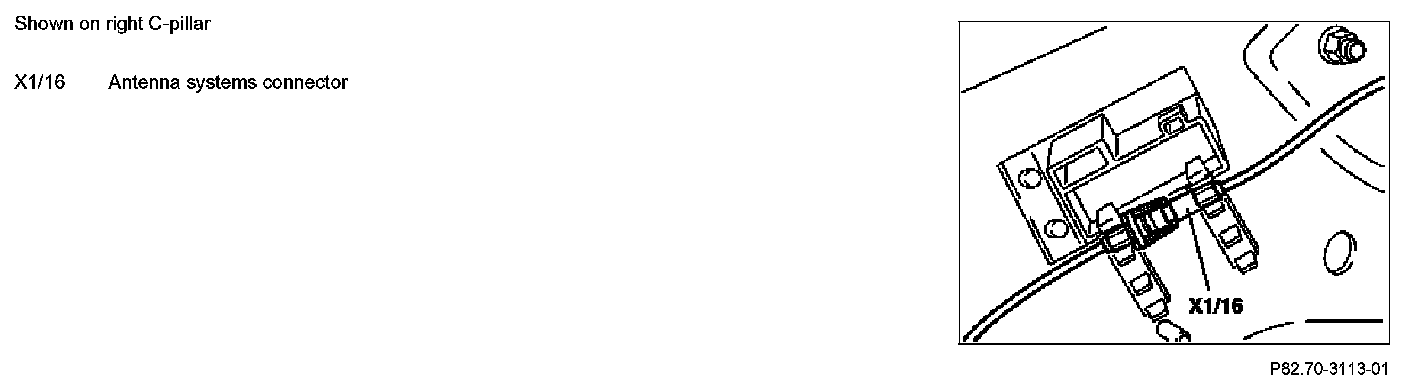

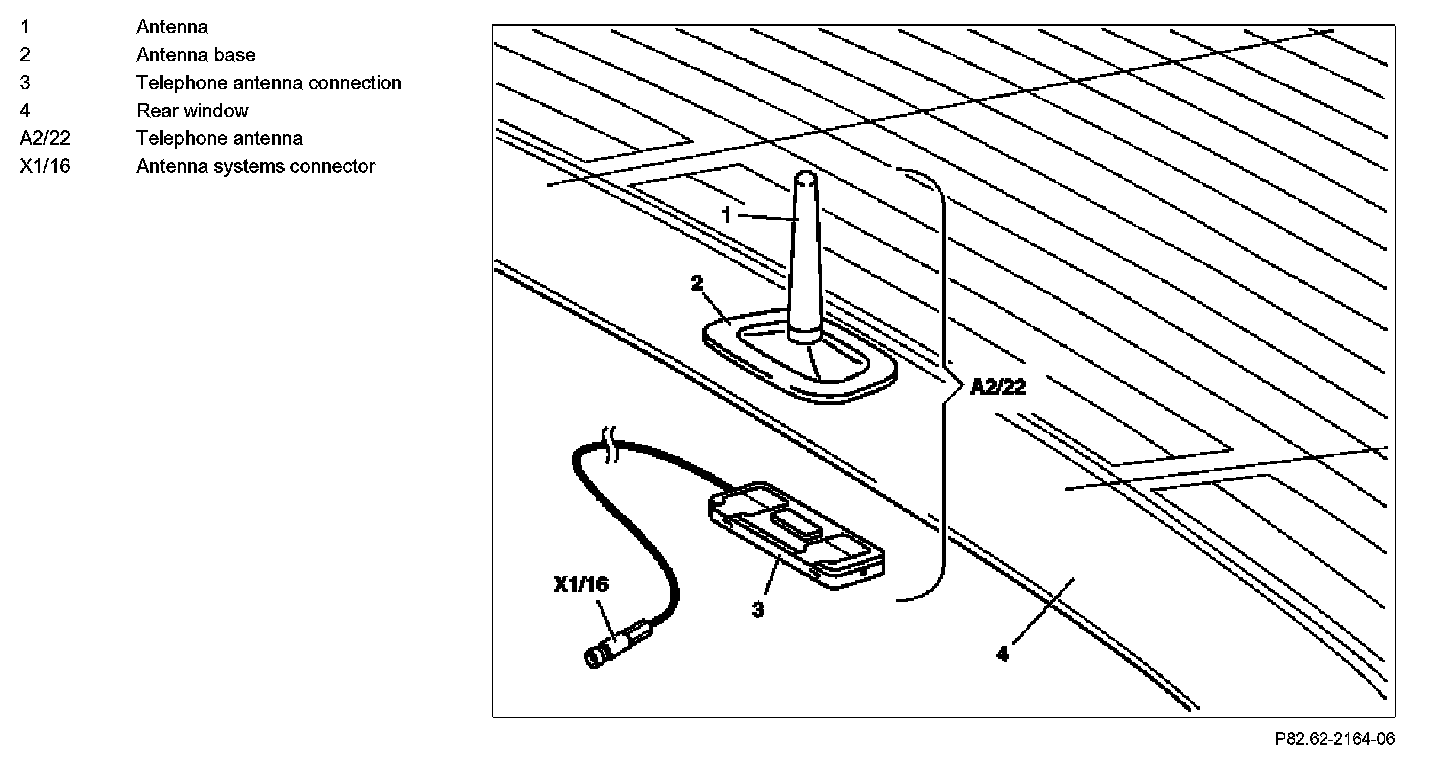

Component Identification:




Component Identification:

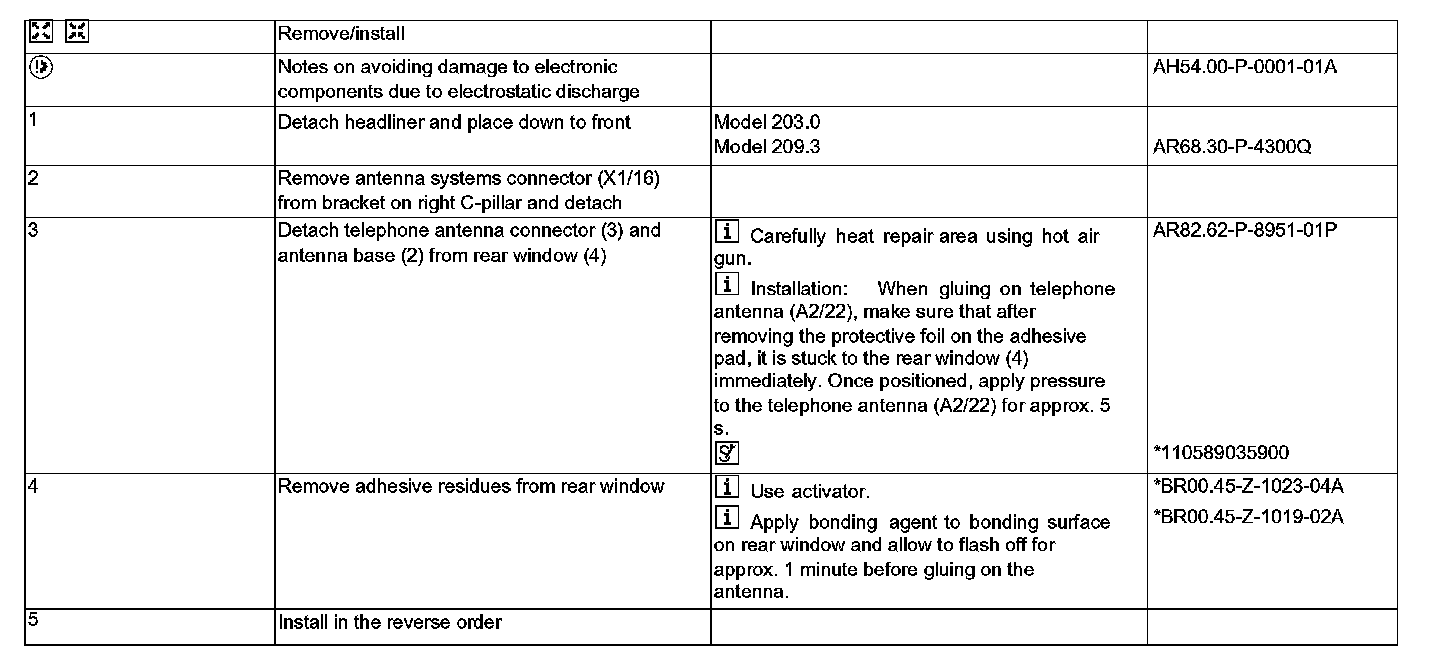

Steps 1 - 5:

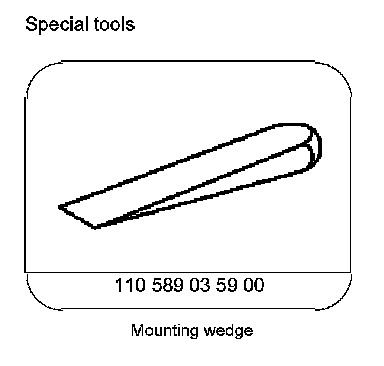

Special Tools:

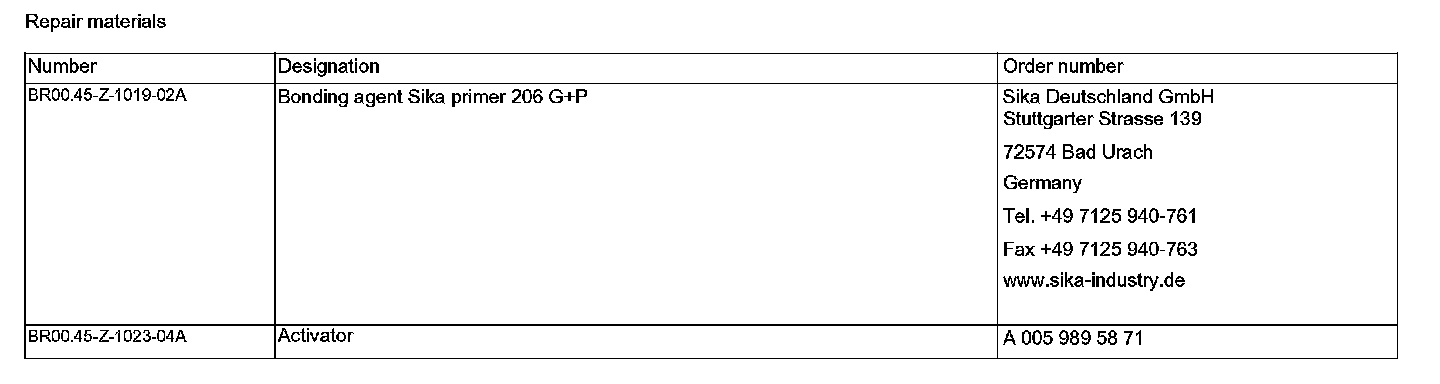

Repair Materials:
