Procedures

AN82.62-P-0001-02QQS Retrofit Antenna
- MODEL 209.3 as of 1.6.04
- except CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring
- except CODE (386) Preinstallation for telephone ""Handy"", UPCI system for Mercedes-Benz Hands-Free FSE11 with CAN-Interface, ab

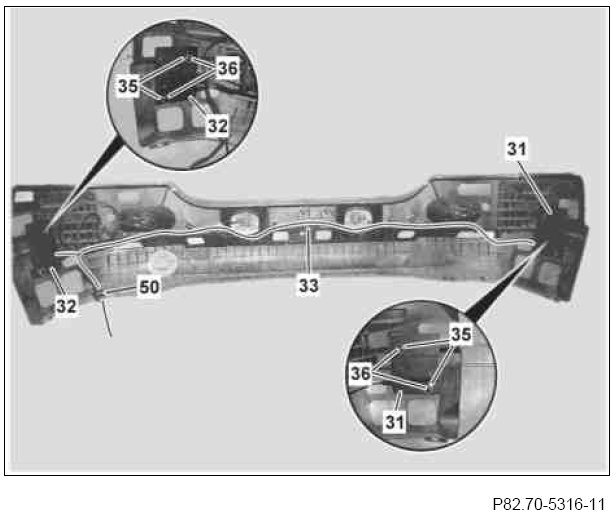

1 Position left bumper antenna (31) above the holes in the bumper as per the picture and fasten in the holes in the left bumper antenna (31) marked with 2 and 4 using the large-area washers M6 (35) and expansion rivets (36) listed in the parts ordering note table in the bumper as per the picture.
2 Position right bumper antenna (32) above the holes in the bumper as per the picture and fasten in the holes in the right bumper antenna (32) marked with 2 and 4 using the large-area washers M6 (35) and expansion rivets (36) listed in the parts ordering note table in the bumper as per the picture.
3 Insert antenna line (33) in the cable duct of the bumper as per the picture and fasten so that it does not scuff or rattle.
4 Attach the cable grommet (50) listed in the parts ordering note table as per the picture to the antenna line (33).
On vehicles with Parktronic, the cable grommet (50) is already available on the Parktronic wiring harness and the antenna line (33) has also to be pulled in into the cable grommet (50).

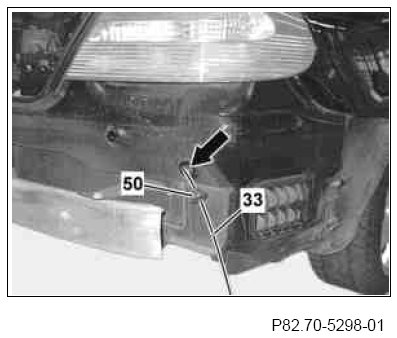

5 Route antenna line (33) through opening (see arrow) in luggage compartment and install cable grommet (50) in opening (see arrow).
6 Install bumper.

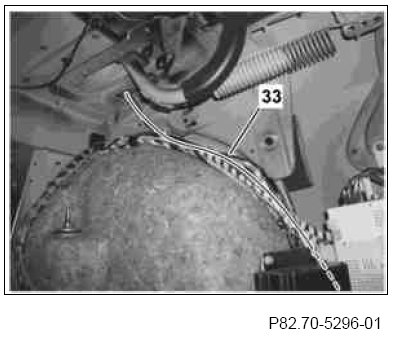

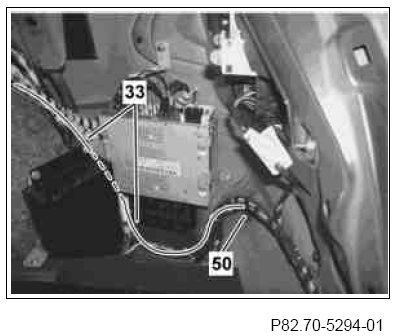

7 Route antenna line (33) as per the picture and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.

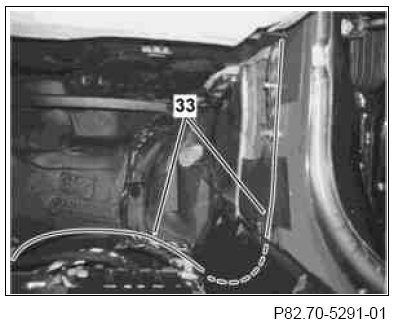

8 Route antenna line (33) as per the picture on the rear shelf and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.

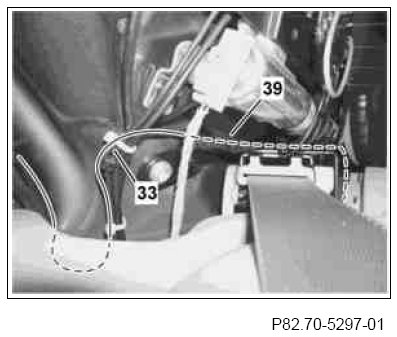

9 Route antenna line (33) as per the picture behind the right rear seat belt retractor and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle using self-adhesive felt (39).

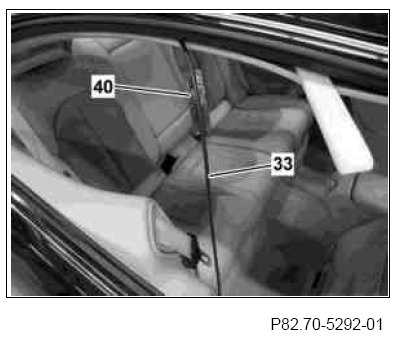

10 Attach 20 x 70 mm self-adhesive felt strips (40) as per the picture on antenna line (33) every 200 mm in area of window cutouts.

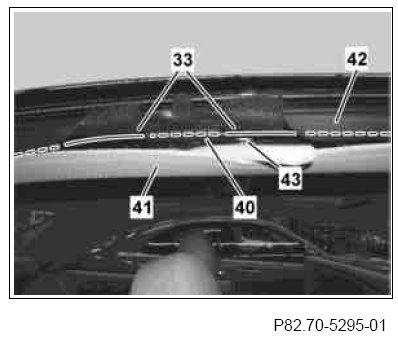

11 Remove headliner (41) underneath rubber seal (42) and attach antenna line (33) as per the picture with 20 x 70 mm self-adhesive felt strips (40) underneath rubber seal (42) on outer roof edge (43) every 200 mm in area of window cutout.
Please ensure during installation that the 20 x 70 mm self-adhesive felt strips (40) do not protrude over the outer roof edge (43) into the interior so that the function of the windowbag is not being affected.

12 Install headliner (41) underneath rubber seal (42).

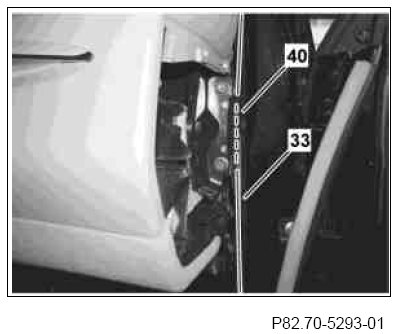

13 Route antenna line (33) at right A-pillar in front passenger footwell as per the picture and fasten with 20 x 70 mm self-adhesive felt strips (40).






14 Route antenna line (33) in front passenger footwell and fasten together with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.
