Removal and Replacement



AR82.85-P-7472QA Remove/Install Operating, Display and Control Unit
- with CODE (527) COMAND APS (with navigation)

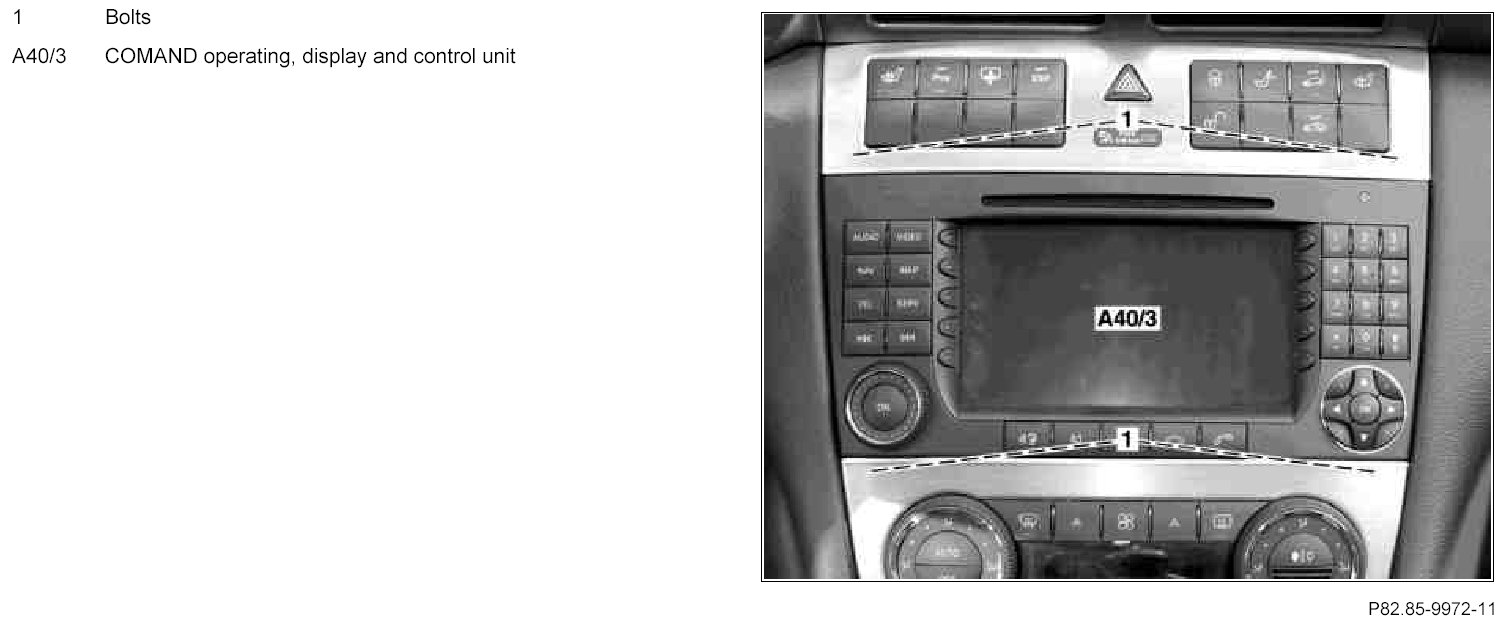

Component Identification:

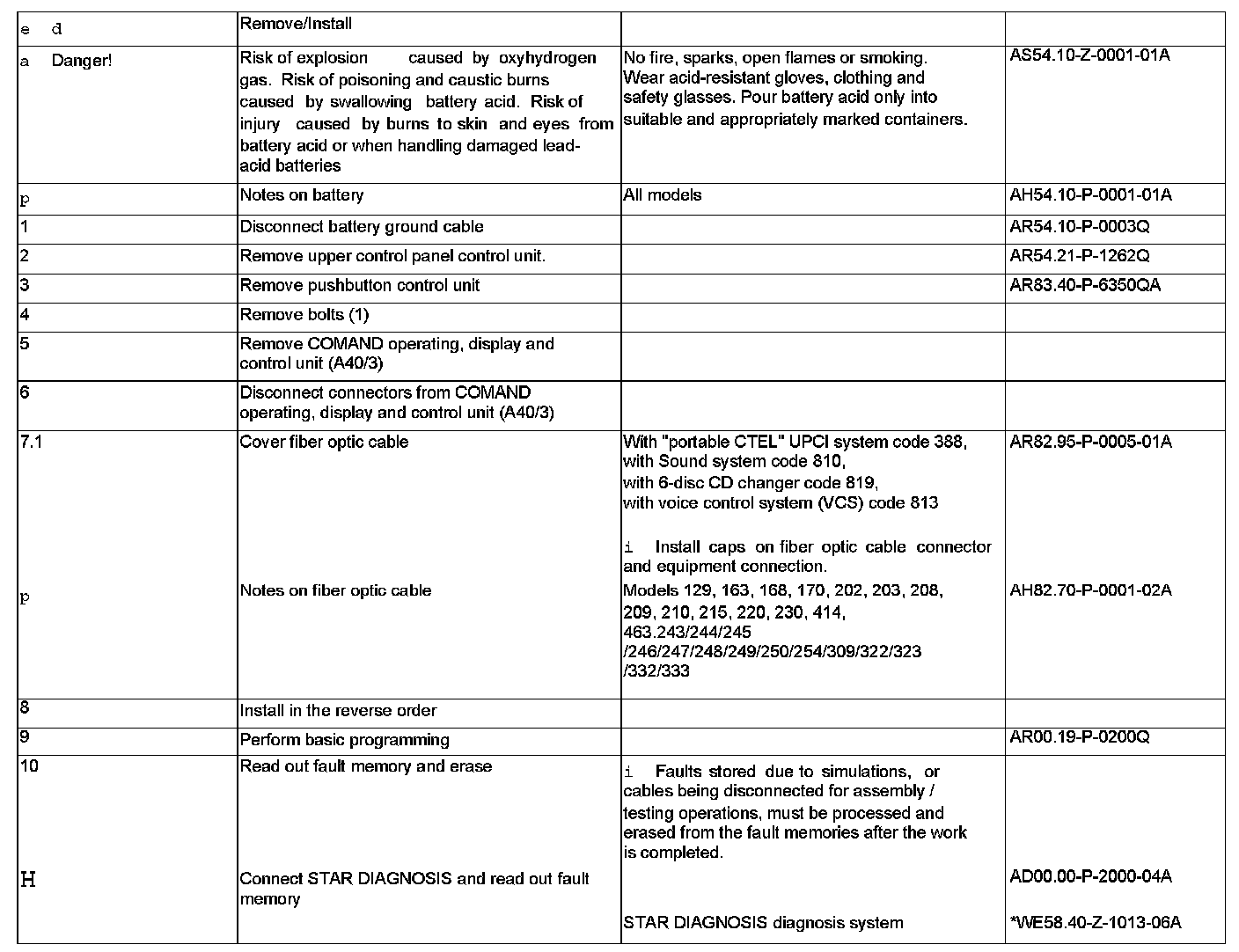

Steps 1 - 10:
