Ignition Lock Cable: Service and Repair



AR27.60-P-0122I Remove/install ignition lock control cable

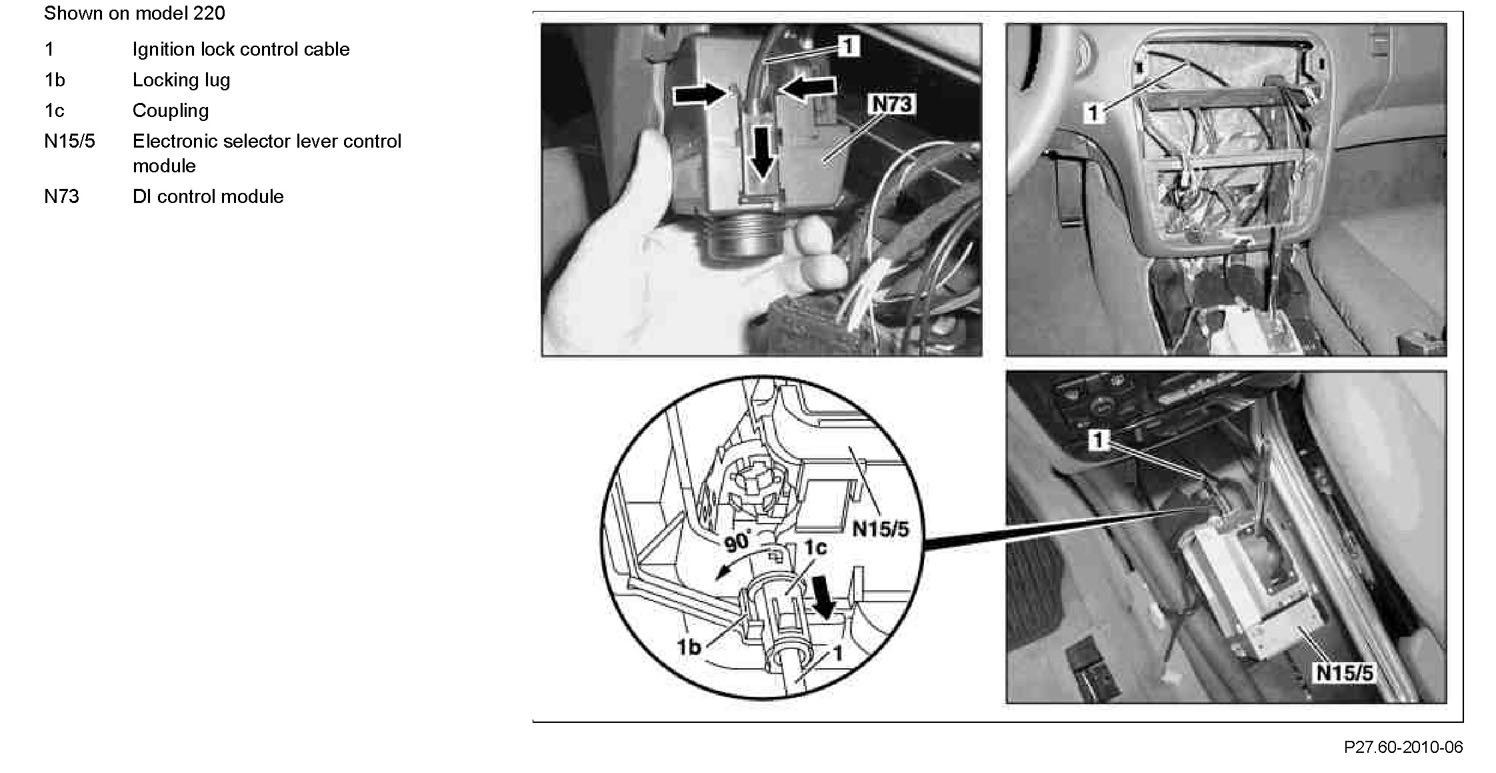

Component Identification:

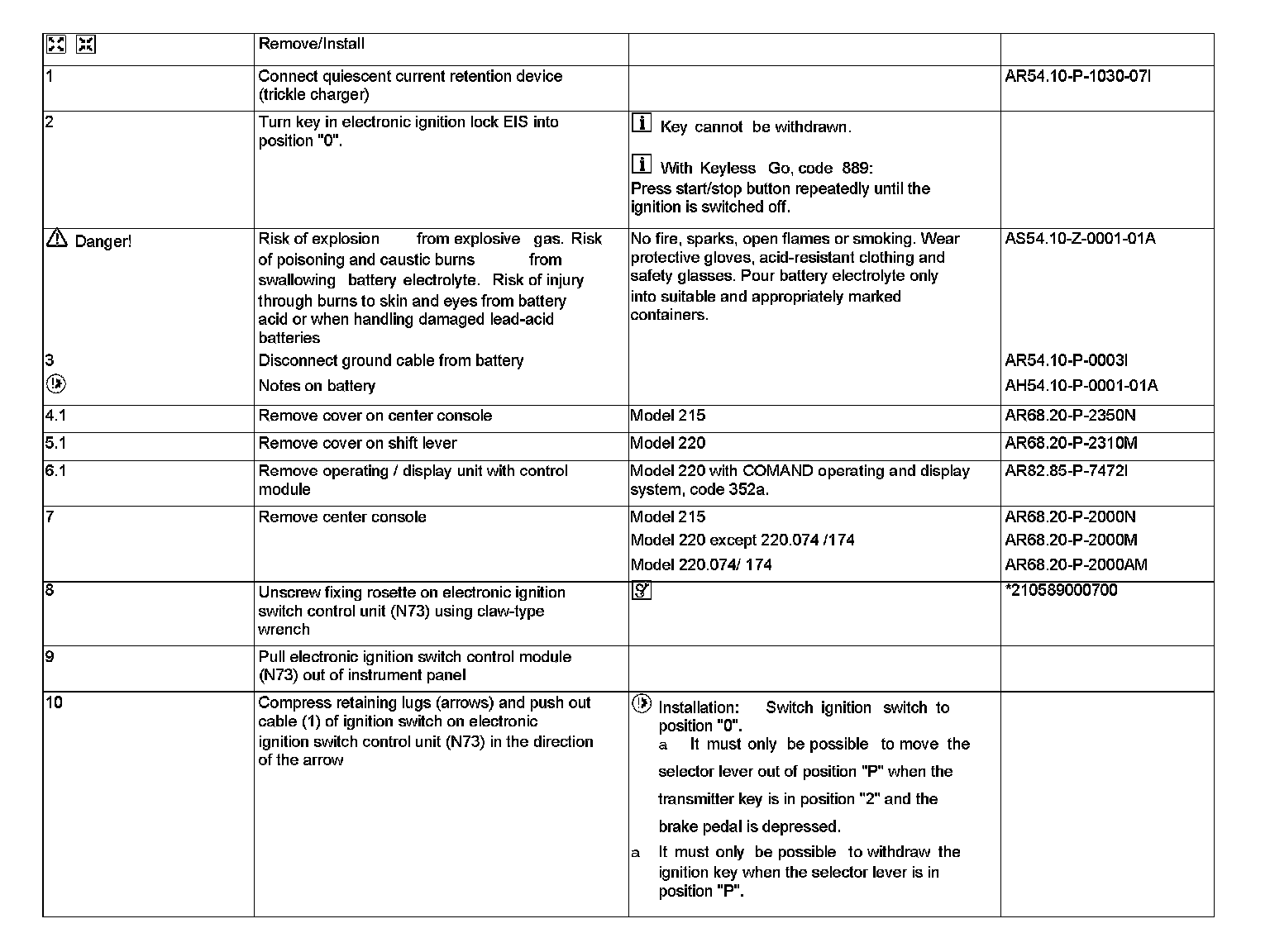

Steps 1 - 10:




Steps 11 - 14:

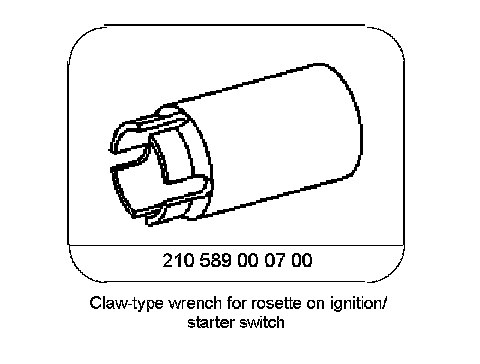

Special Tools:

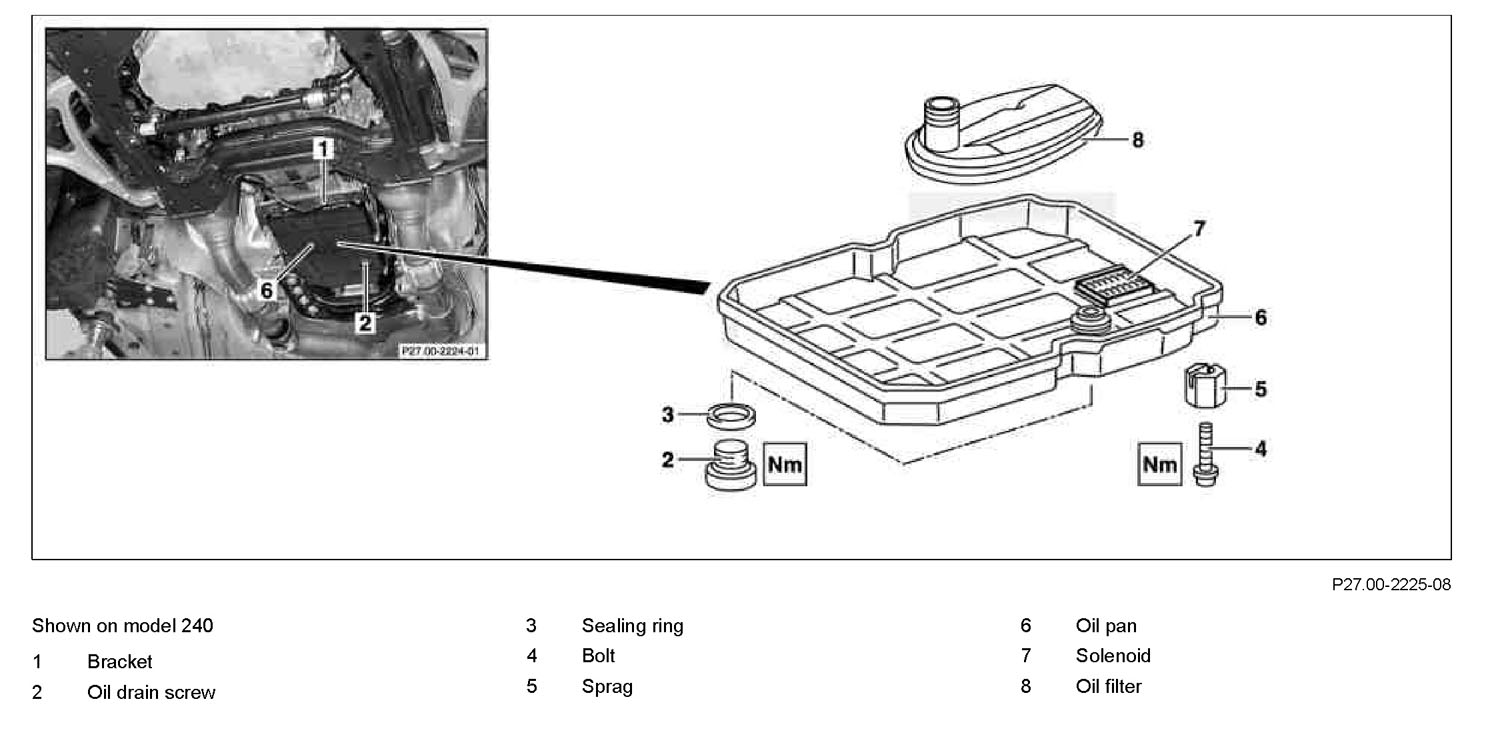

Component Identification:

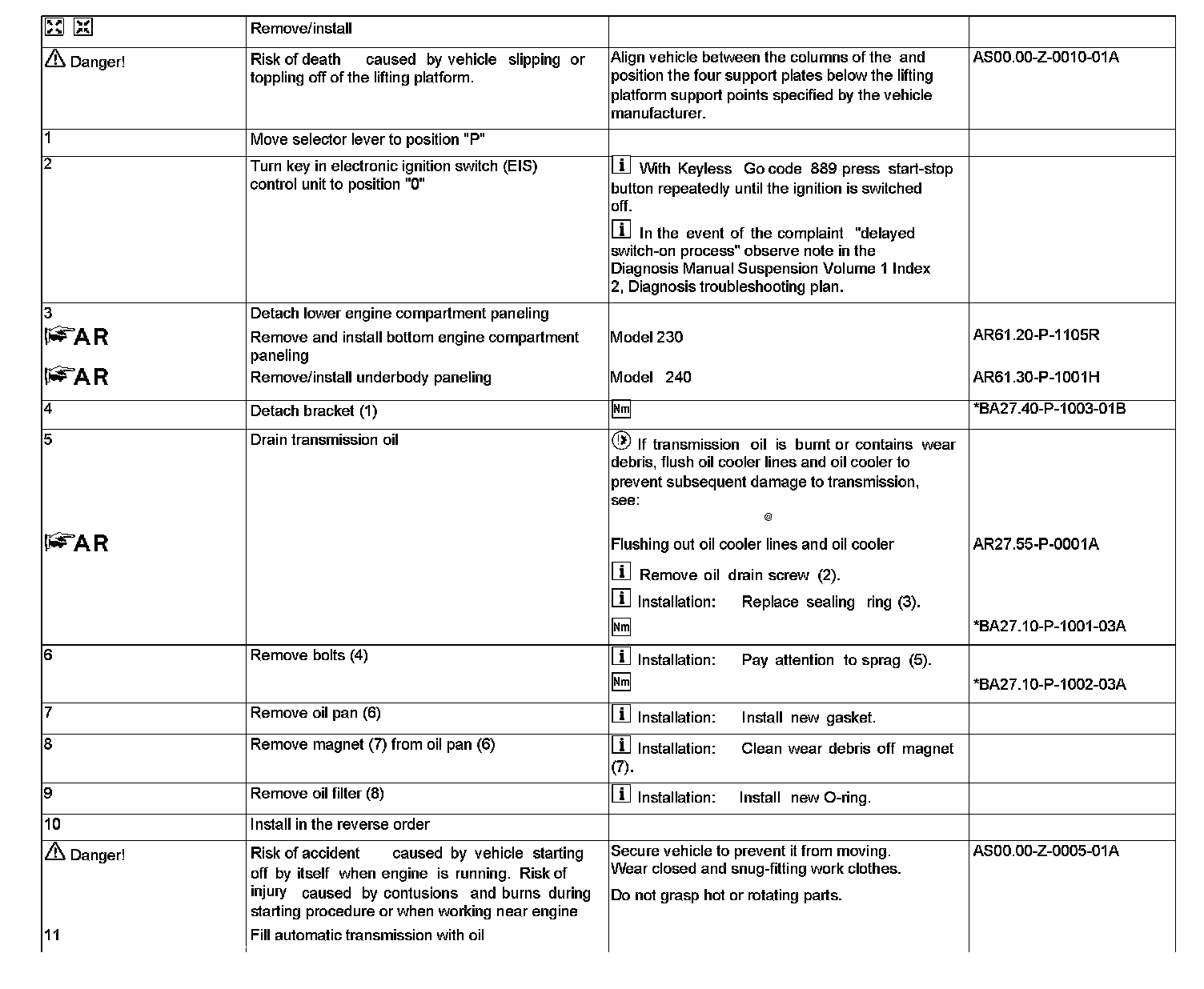

Steps 1 - 11:
