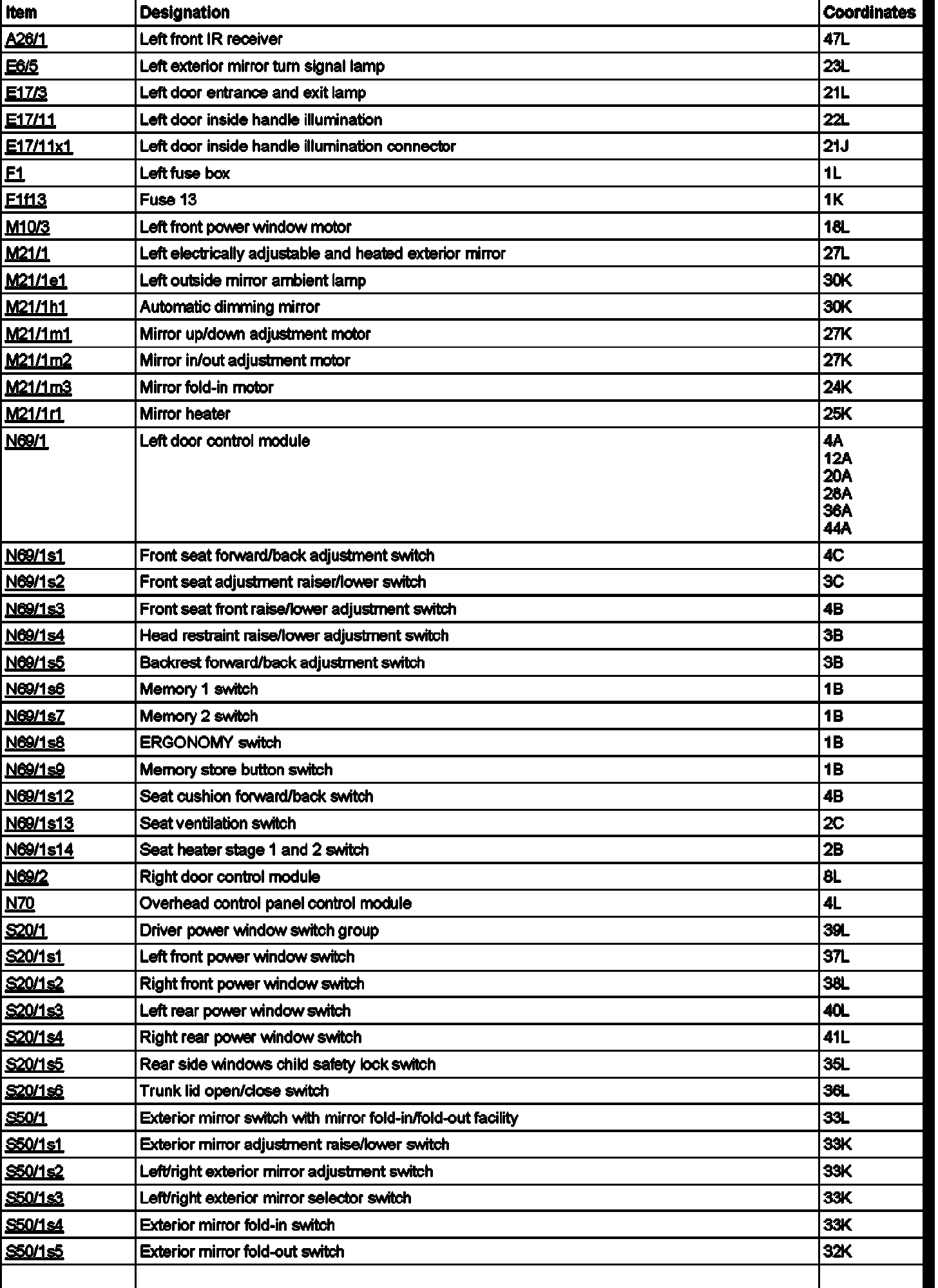

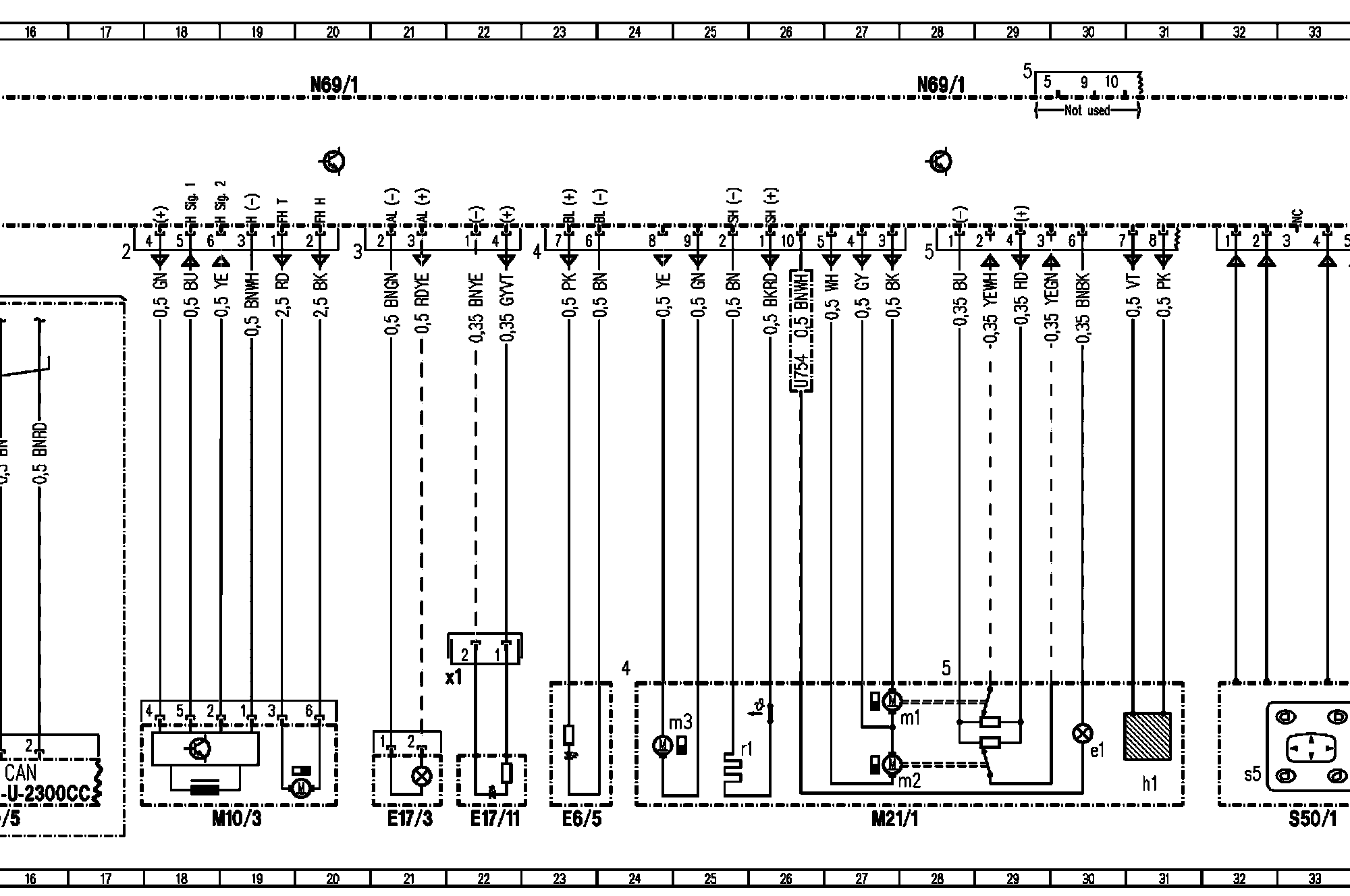

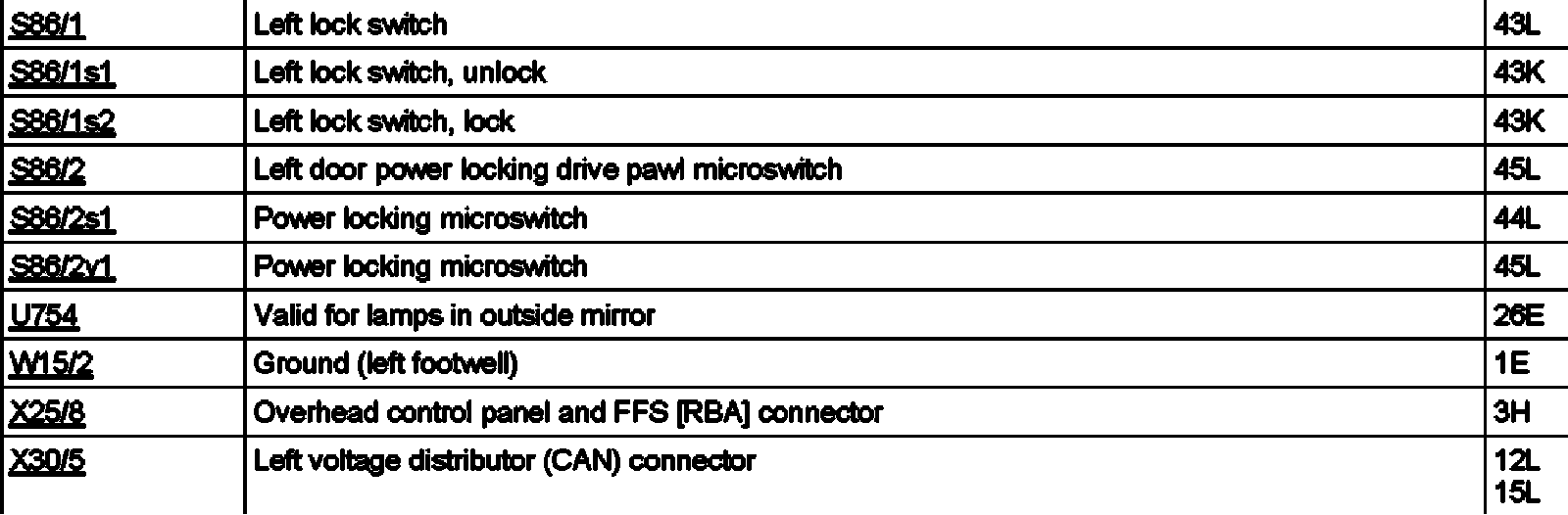

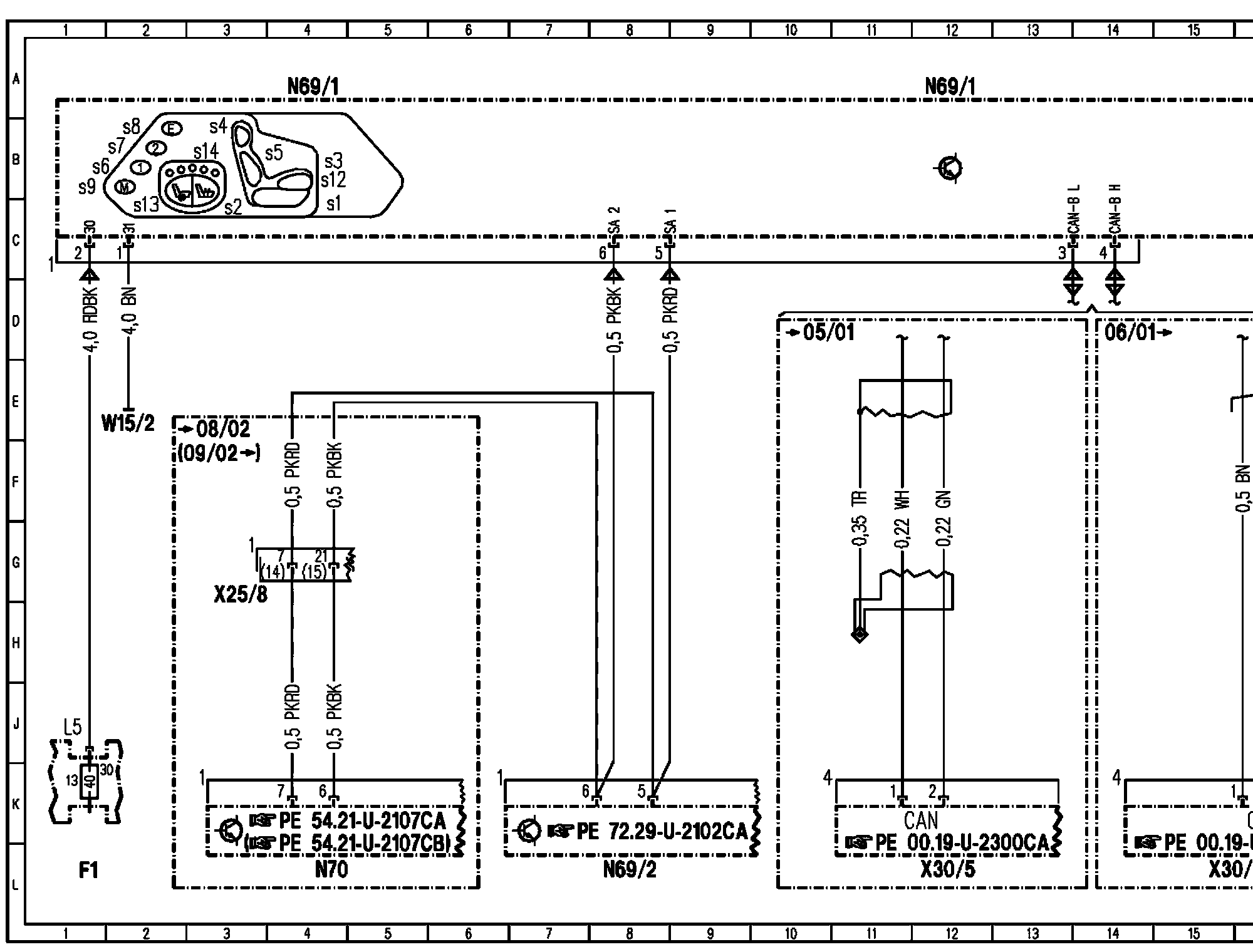

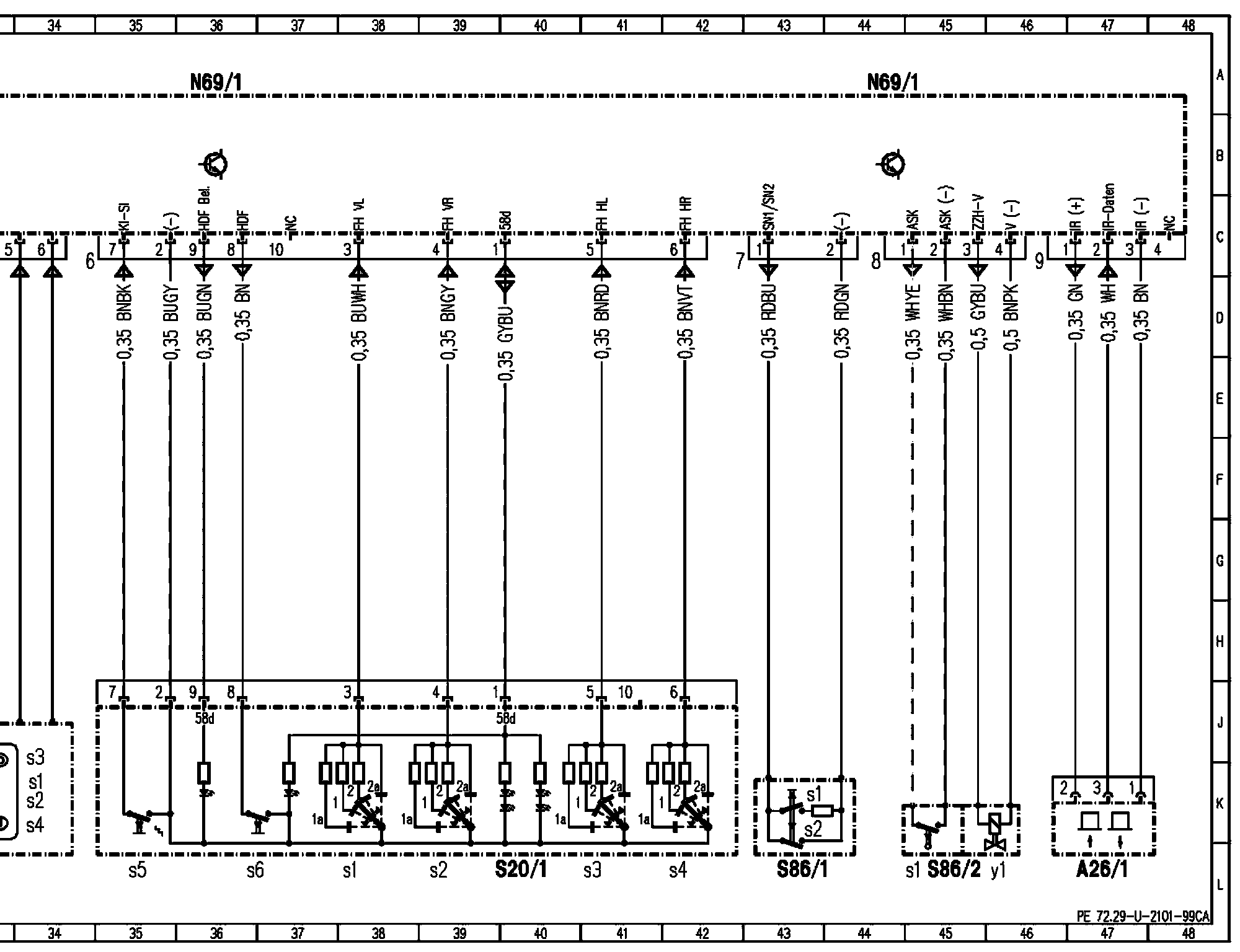

PE72.29-U-2101CA Door Control Module (DCM) Front Left
PE72.29-U-2101CA Door Control Module (DCM) Front Left
PE72.29-U-2101CA Door Control Module (DCM) Front Left
Control Module N69/1
