AZ88.50-P-0002-05M Retrofitting Trunk Lid Emergency Release Wiring Harness

AZ88.50-P-0002-05M Retrofitting Trunk Lid Emergency Release Wiring Harness
(MODEL 220.### #A up to 181312, 215.### #A up to 013239 with CODE (491) U.S. version)

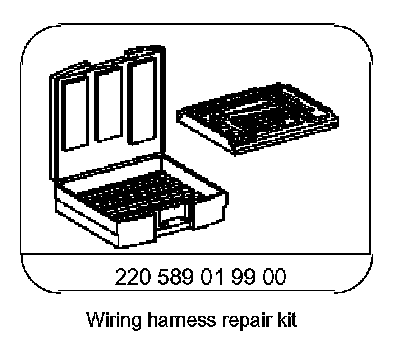

Special Tools:

1. Attach connector to red/white ((rt/ws) lead, 0.5mm2 ) length approx. 2.5 m and connect to auxiliary fuse holder.

Use jacket.

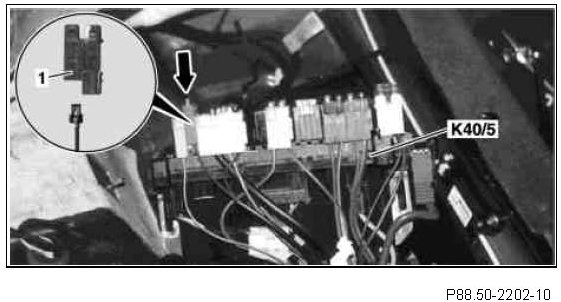

2. Insert fuse holder (1) into plug-in location 59 of fuse and relay module in rear (K40/5). Install 5 A fuse.

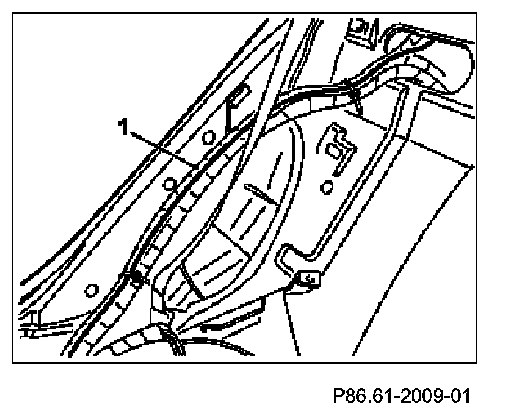

3. Route lead (1) along present wiring harnesses to trunk and tie with cable straps.

Component Identification:

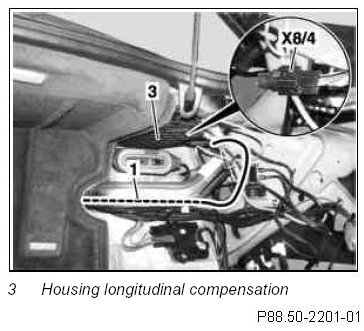

4. Route lead (1) along present wiring harnesses to connector (X8/4).
5. Attach connector to lead (1) and connect to chamber 6 of connector.

If plug-in location is already connected, disconnect lead and tie back with insulation.

6. Tie lead (1).
