AN88.50-P-0002-03N Retrofit Hinge and Drive For Trunk Lid Remote Control

AN88.50-P-0002-03N Retrofit Hinge And Drive For Trunk Lid Remote Control

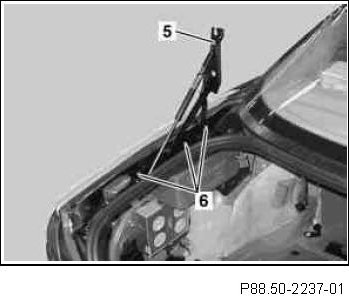

1. Install left hinge lever (5) and fasten with screws (6).
2. Repair bolts (6) with paint in visible area.







3.1 Model 215
- Move in drive element from bottom.

3.2 Model 220
- Move in drive element through taillamp opening.

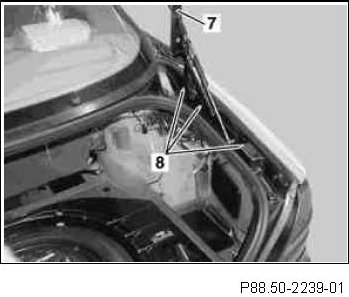

4. Insert right hinge lever (7) in drive element with splines and fasten with nuts (8).
5. Repair nuts (8) with paint in visible area.

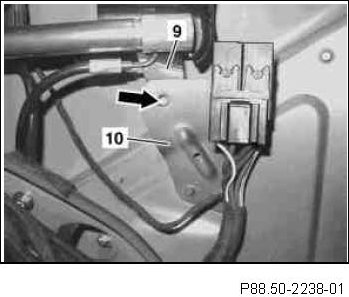

6. Screw on drive element (9) at bottom to mounting plate (10) from rear.
