Starter, Generator PE15.00-U-2000FA (Sheet 1)

Starter, Generator PE15.00-U-2000FA (Sheet 1)

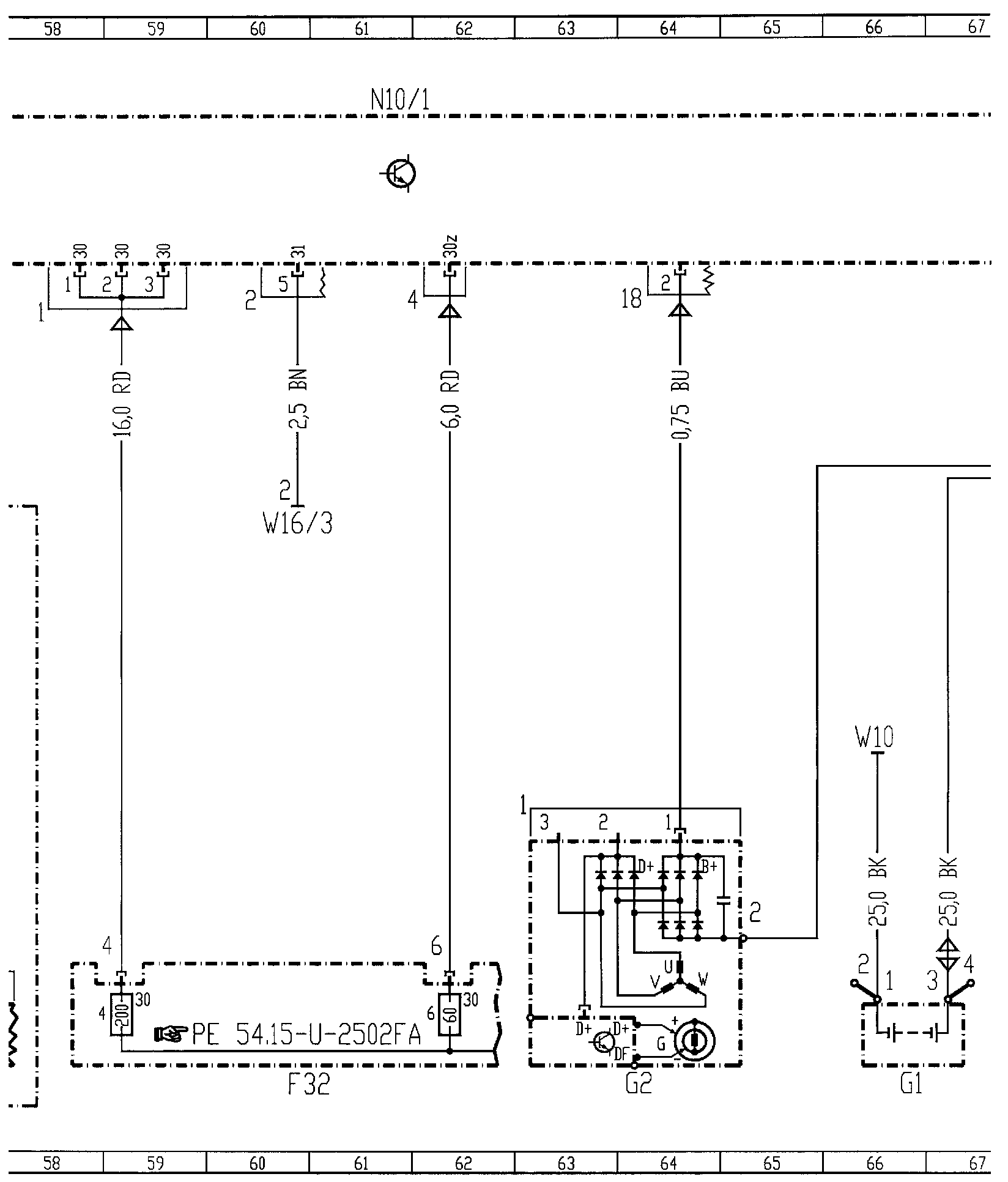

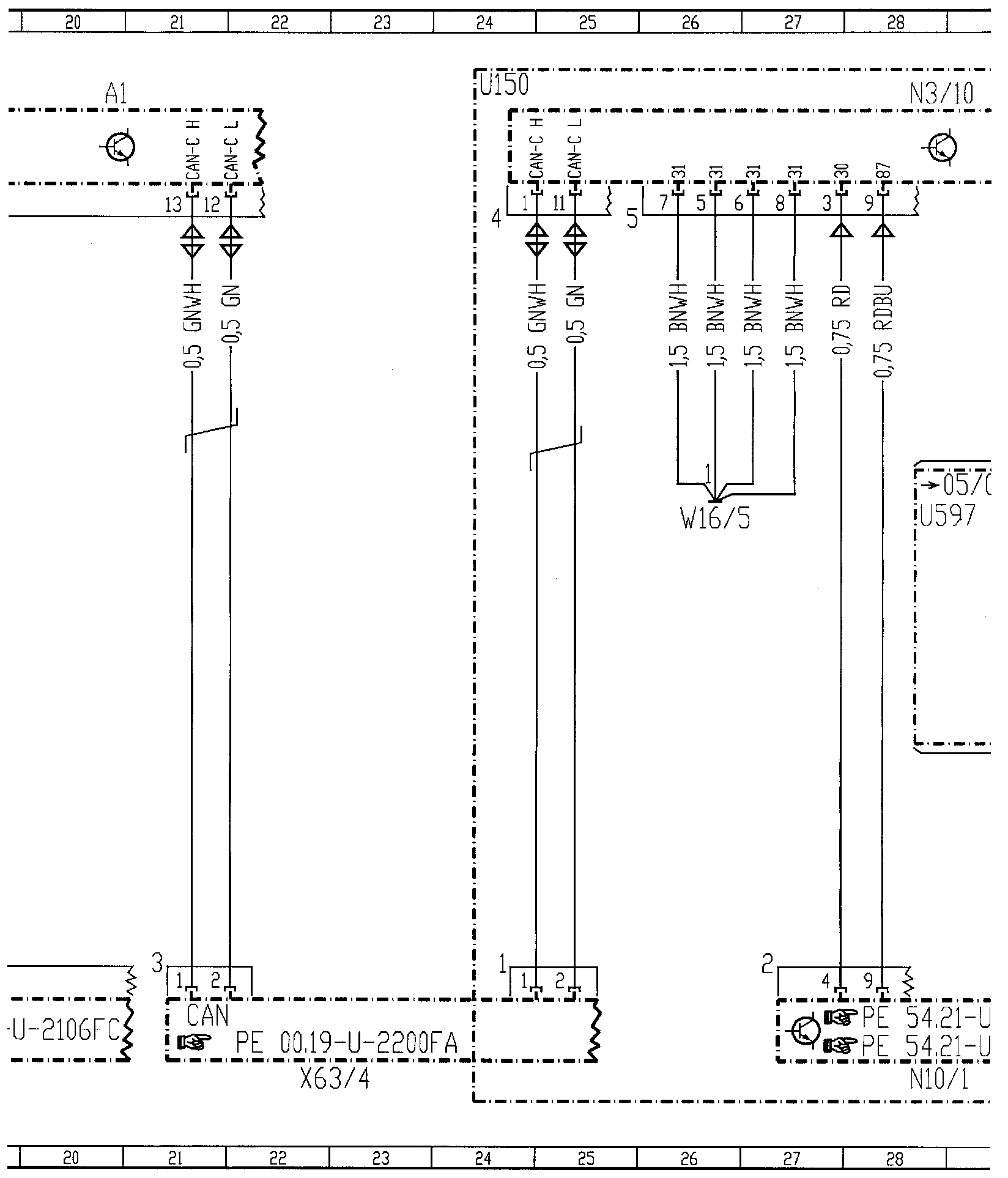

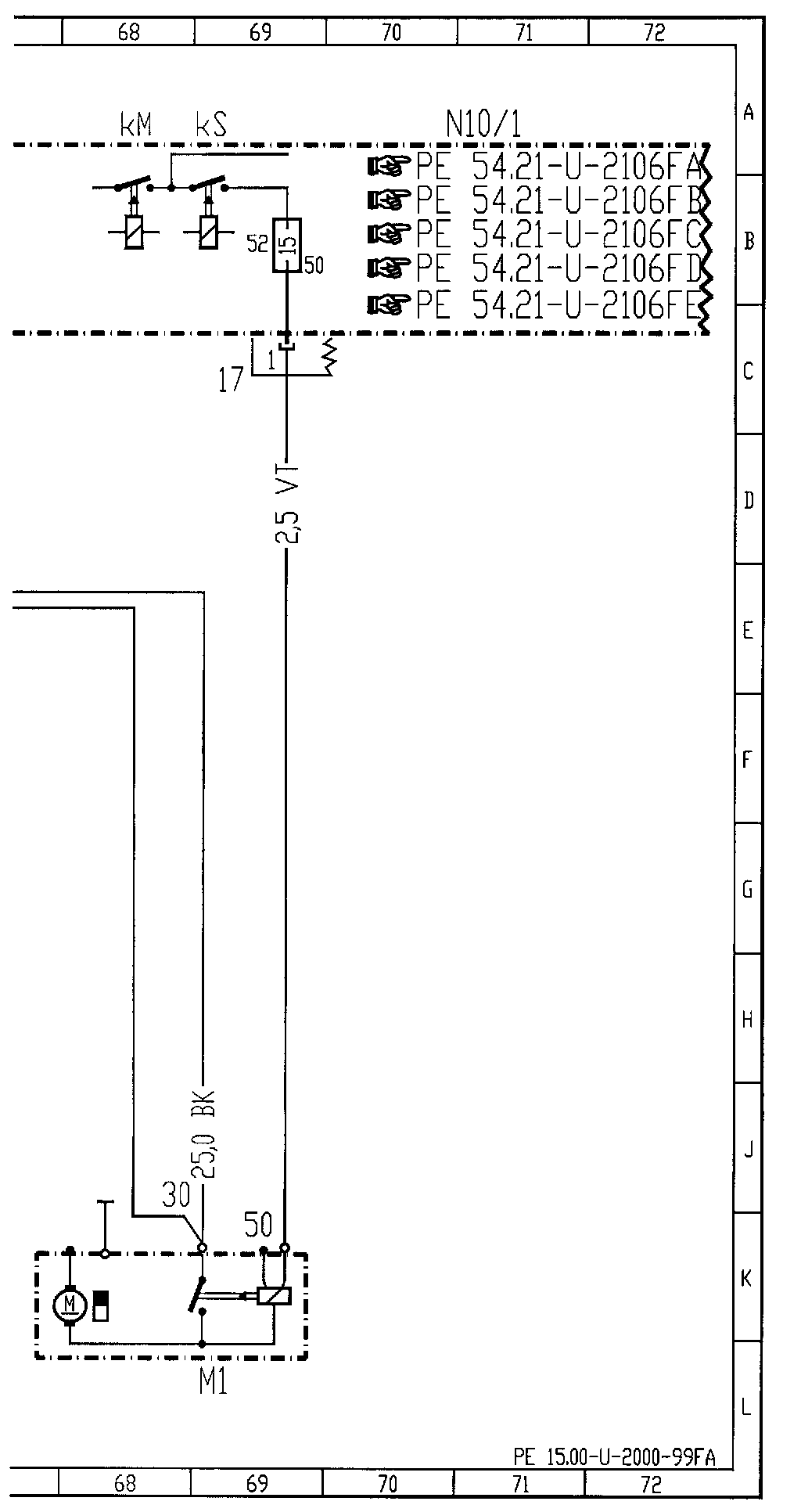

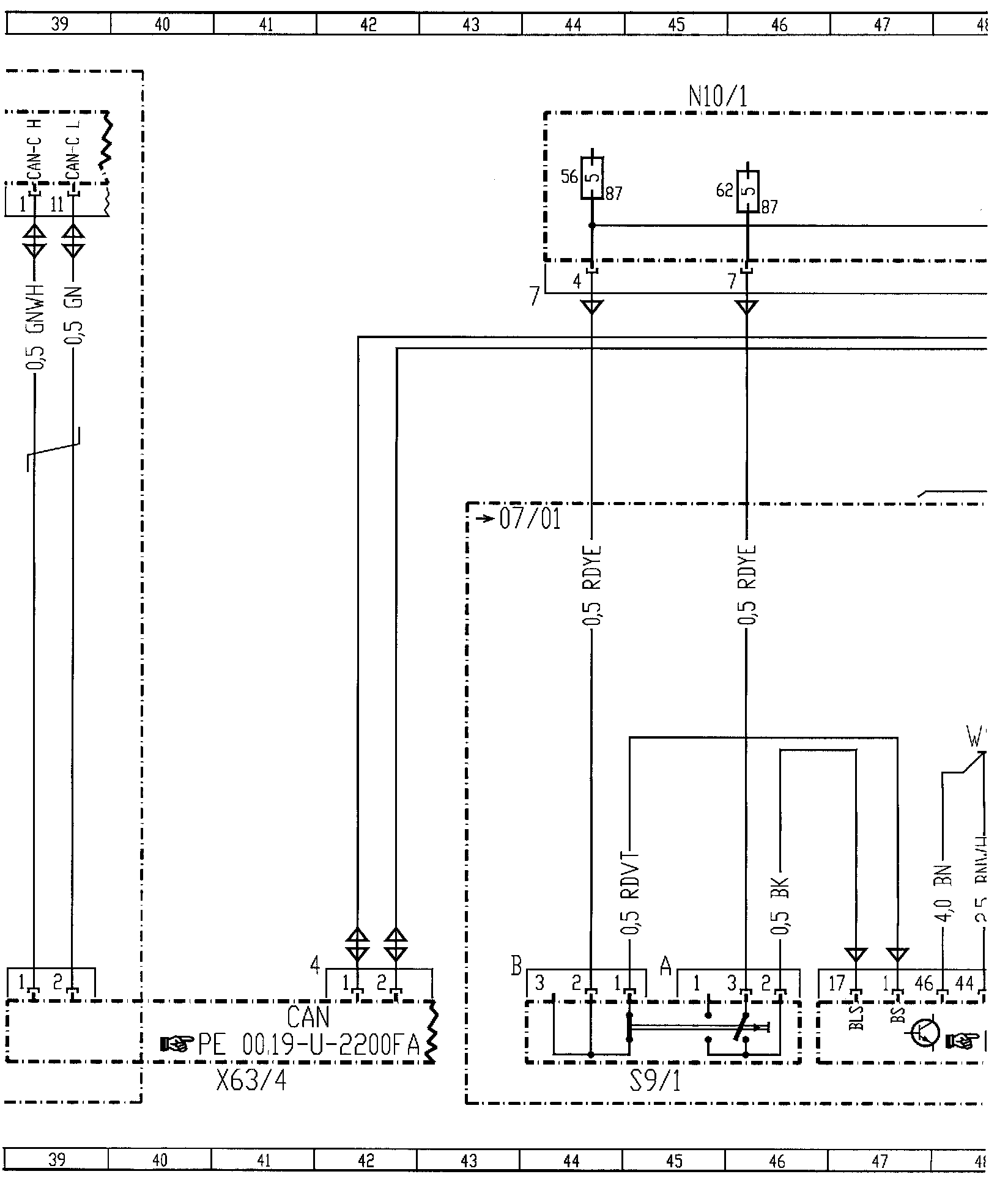

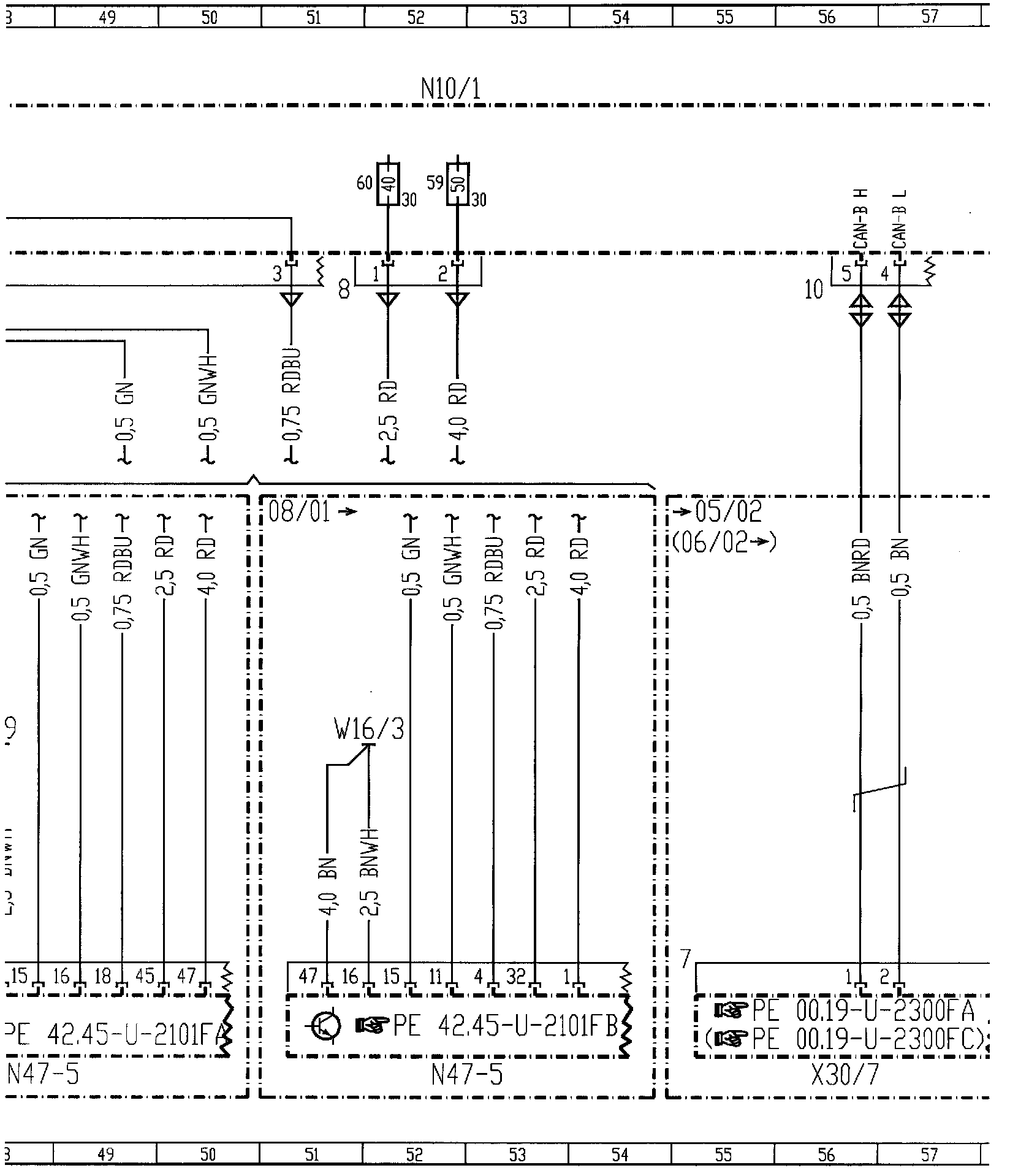

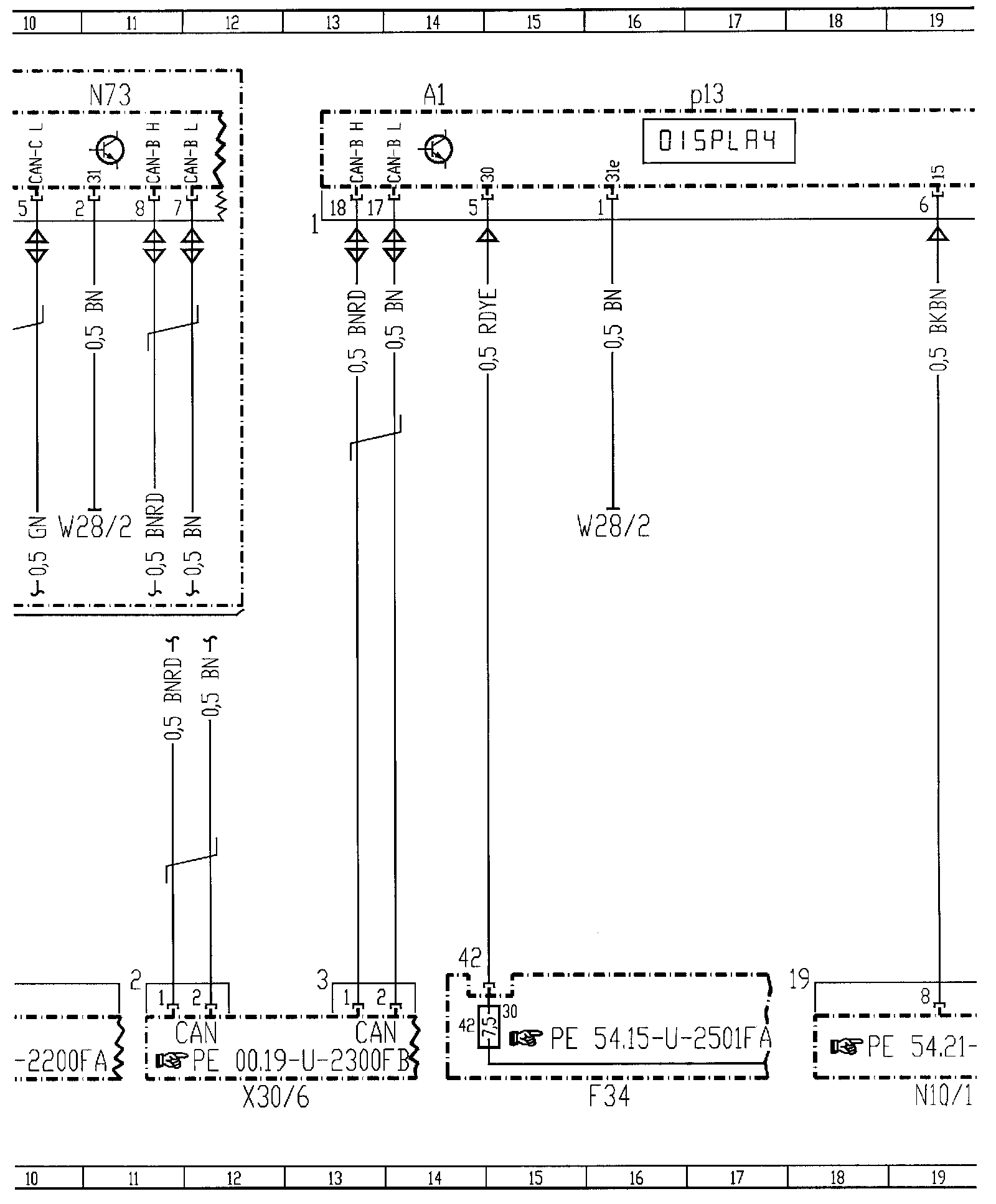

PE15.00-U-2000FA - Part 1:

PE15.00-U-2000FA - Part 2:

PE15.00-U-2000FA - Part 3:

PE15.00-U-2000FA - Part 4:

PE15.00-U-2000FA - Part 5:

PE15.00-U-2000FA - Part 6:

PE15.00-U-2000FA - Part 7:

PE15.00-U-2000FA - Part 8:

A1 - X63/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations

Pin Information, Part 1:

Pin Information, Part 2:
