AZ54.65-P-0001-04MC Installing Control Module

AZ54.65-P-0001-04MC Installing Control Module
- Model 203.7## 1#

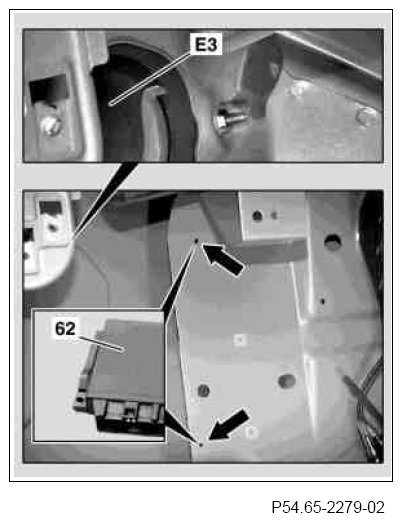

1 Use ultrasonic PTS control module (62) as template and transfer holes (see arrow in figure section) to left side wall of trunk in rear of first aid kit (see arrows).
Offset upper hole of ultrasonic PTS control module (62) approx. 10 mm toward front of vehicle so that the taillamp mount (E3) remains accessible.

2 Drill holes with 6.5 mm dia. bit (see arrows).

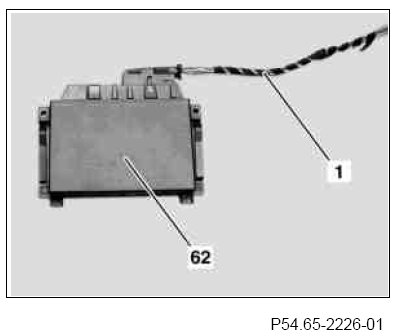

3 Insert connector for ultrasonic back-up assist wiring harness (1) into plug location for ultrasonic PTS control module (62).
Plug locations are coded and cannot be mixed up.

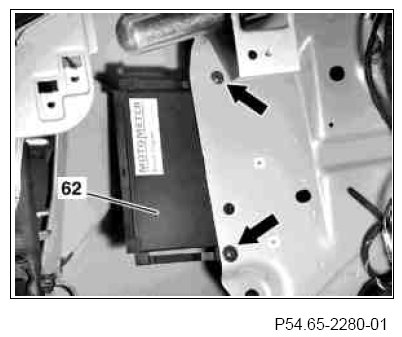

4 Fasten ultrasonic PTS control module (62) with plug locations toward front of vehicle between fender and sheet metal part with 2 screws, lock washer and nuts.
The screw head is located in the trunk (see arrows).
