SM54.18-P-0009P Seal Module Box Wiring Harnesses

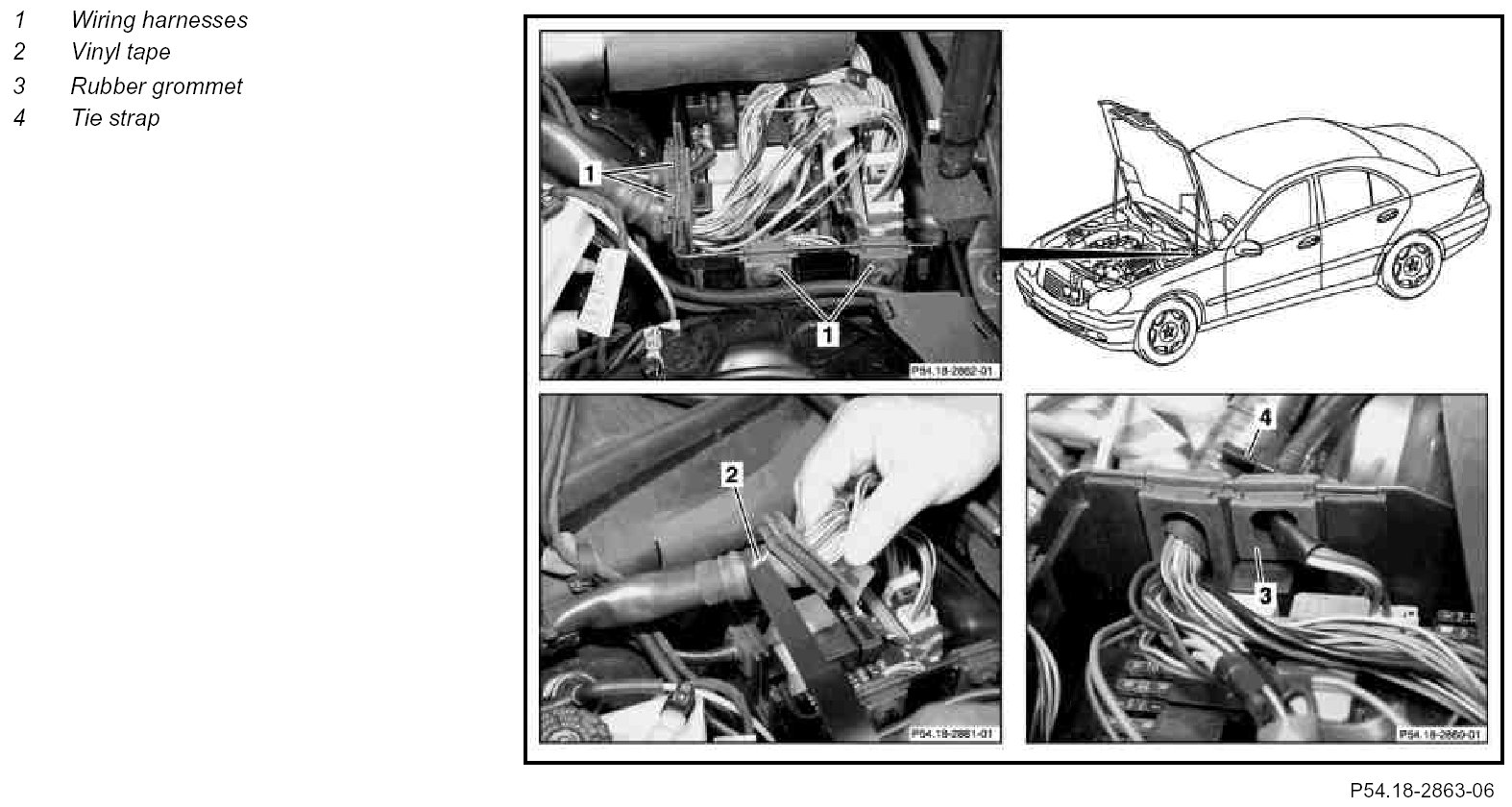

Component Identification:

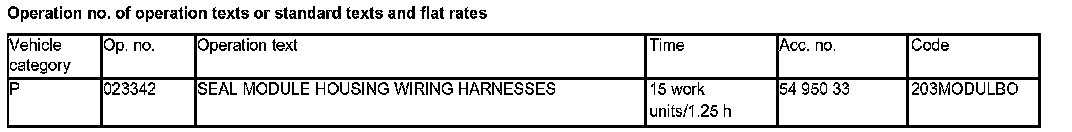

Operation No. Of Operation Texts Or Standard Texts And Flat Rates:

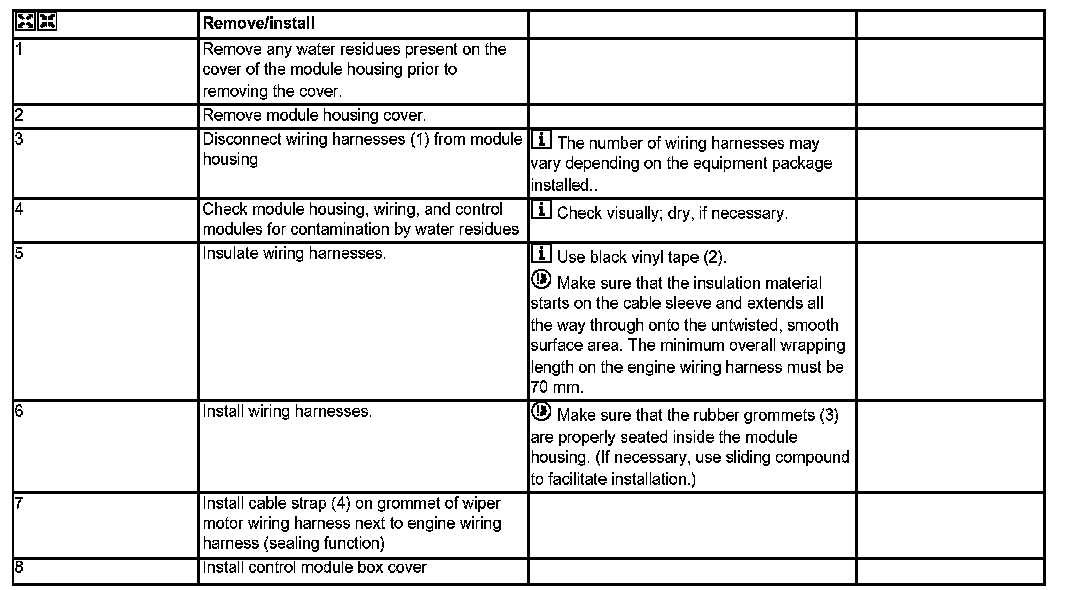

Steps 1 - 8:

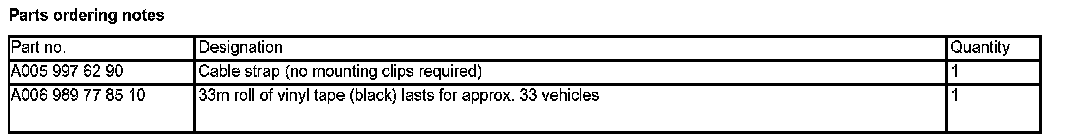

Parts Ordering Notes:
