AN20.30-P-0001-01A Retrofitting Bracket For Coolant Preheater Plug

AN20.30-P-0001-01A Retrofitting Bracket For Coolant Preheater Plug









Shop-made bracket

3 Nut M6
4 Bolt M6
a Retaining spring
b Cover cap
c Self-tapping screws (2 ea.)

1 Transfer hole pattern from bracket (a) to bracket (9) and drill.

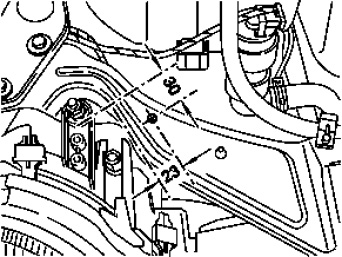

2 Mark hole pattern for bracket (9) on the right upper frame crossmember and drill dia. 7 mm.

Prime drilled holes and bracket.
