GF91.29-P-5223FA Component Description of Driver-Side Front Seat Adjustment Control Unit With Memory

GF91.29-P-5223FA Component Description Of Driver-side Front Seat Adjustment Control Unit With Memory

- with CODE (275) Memory package (driver seat, steering column, mirrors)
- as of model year 09/YoM 08 model refinement package







N32/1 Driver front seat adjustment control unit with memory

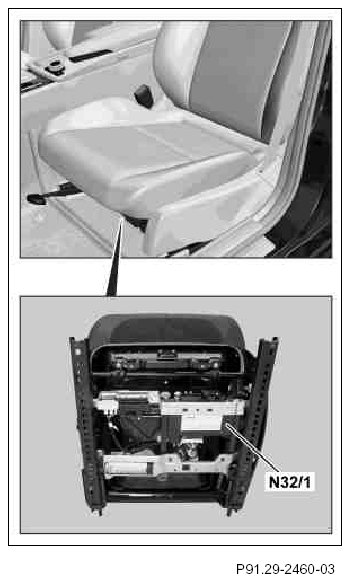

Location
The driver-side front seat adjustment control unit with memory is located on the seat frame of the driver seat.

Task
- Control of the seat and steering column adjustment via interior CAN as per the requests
- Storing the memory settings for seat, steering column, and outside mirror
- Control of the easy entry/exit feature
- Actuation of head restraint presetting (not ECE and UK)

These are grouped as follows:
- Reading in of sensors and signals
- Evaluating input factors
- Actuation of components

Reading in of sensors and signals

These input factors are read in via the following connections:
- Direct line
- Interior CAN

Direct line
- Circuit 30
- Circuit 31

The following sensors are read in via direct lines:
- Hall sensors of seat adjustment motors
- Hall sensors of steering column adjustment motors
- Driver seat backrest release microswitch (S91/3)
- Driver seat height release microswitch (S91/4)

Interior CAN
- Left front door seat adjustment switch group (memory) (S91/2) or right front door seat adjustment switch group (memory) (S92/2)
- Steering column adjustment switch (S59) from steering column tube module (N80)

Evaluation of input factors
The input factors read in are evaluated by the driver-side front seat adjustment control unit with memory. The actuation of the motors for seat and steering column adjustment takes place via integrated relays.

Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Interior CAN

Direct line
The following motors are actuated via direct lines:
- Steering column adjustment motor group (M20)
- Driver seat adjustment motor group with memory (M27)

Interior CAN
- Signals for actuating the memory positions of the outside mirrors to the left front door control unit (N69/1) and the right front door control unit (N69/2)

Variants
There are no variants for the hardware of the driver-side front seat adjustment control unit with memory.
The country or left-hand drive vehicle/right hand drive vehicle allocation is software coded.
