Home >> Mercedes Benz >> 2005 >> C 320 CL (203.764) V6-3.2L (112.946) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Service and Repair >> AR88.85-P-2100PB Remove/Install Water Deflector

AR88.85-P-2100PB Remove/Install Water Deflector



AR88.85-P-2100PB Remove/Install Water Deflector
- with CODE (413) Panorama sliding roof

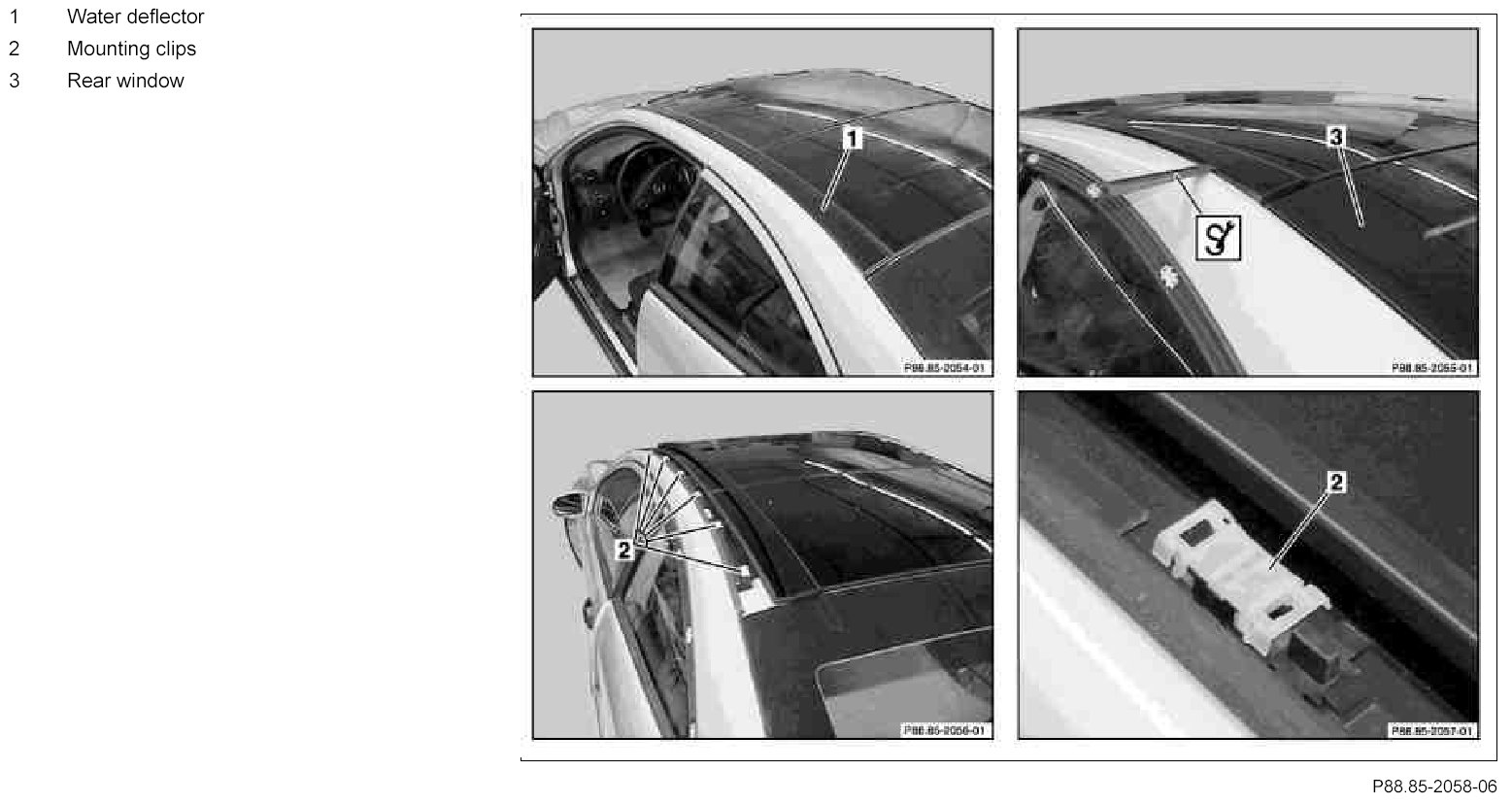

Component Identification:

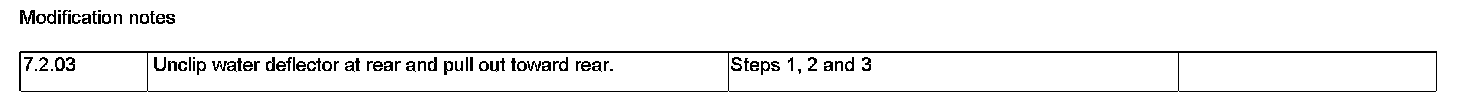

Modification Notes:

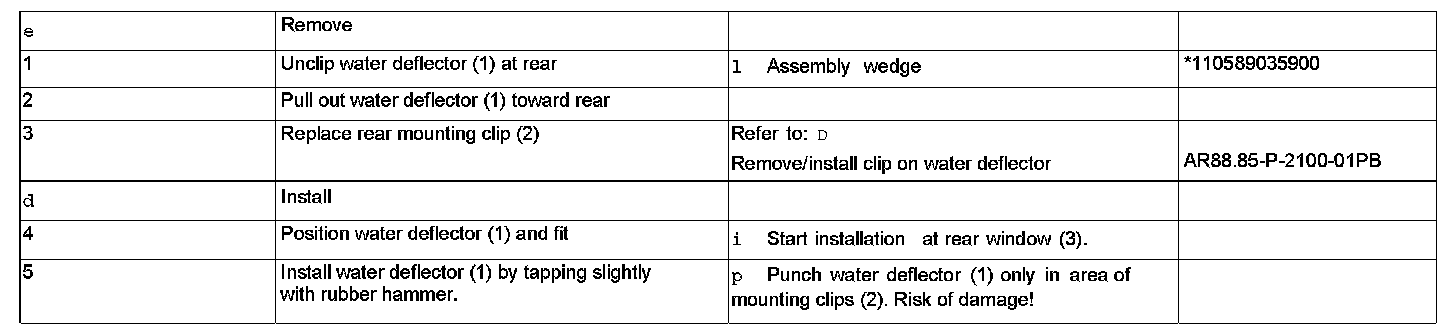

Steps 1 - 5:

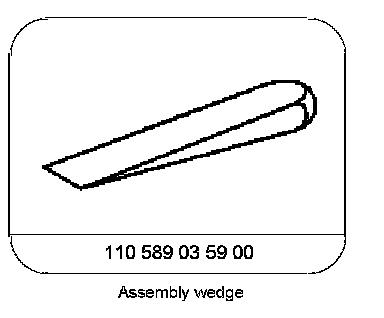

Special Tools:
