Headlamp Cleaning System (HCS) PE82.15-U-2000FA



Headlamp Cleaning System (HCS) PE82.15-U-2000FA

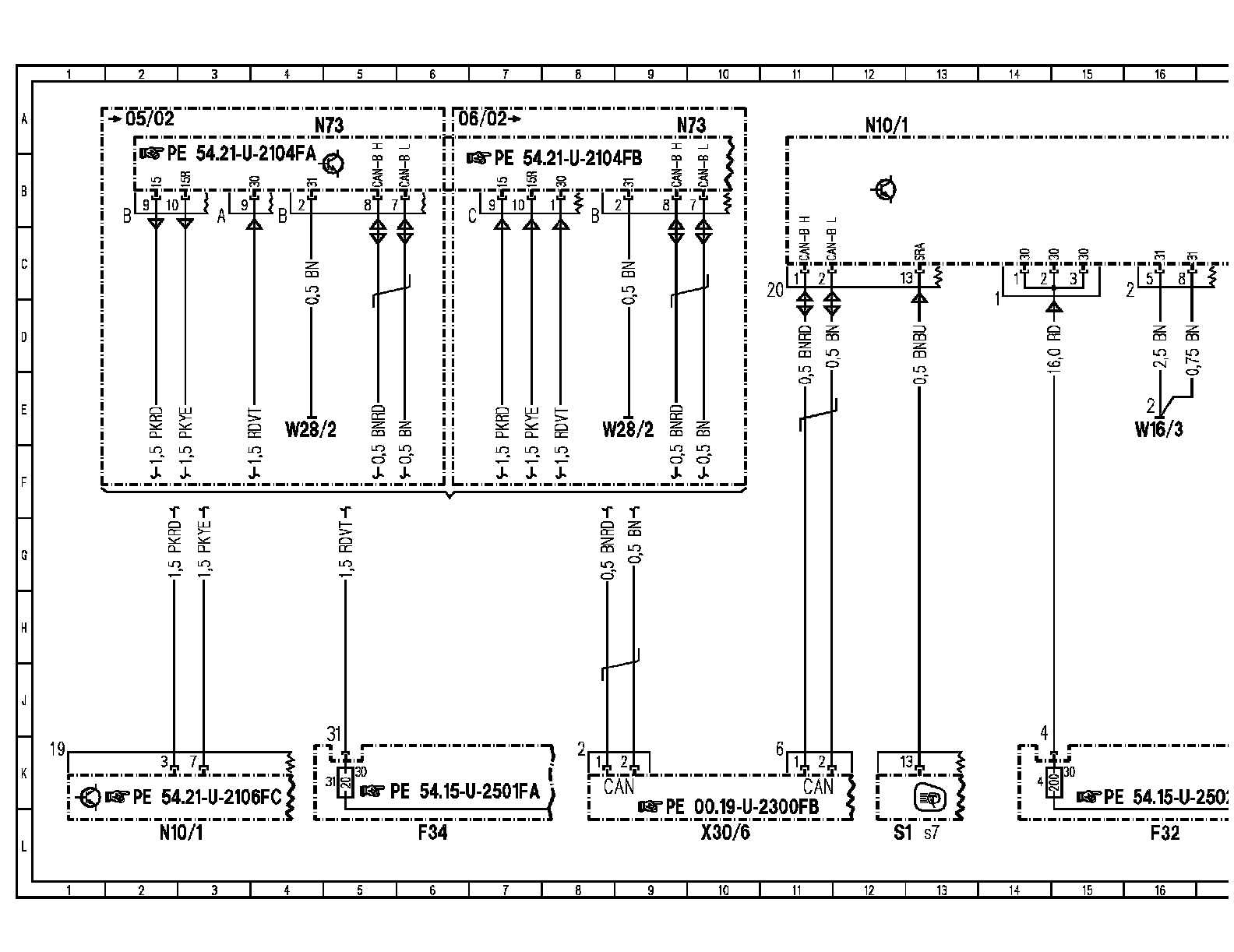

Wiring Diagram, Part 1:






Wiring Diagram, Part 2:

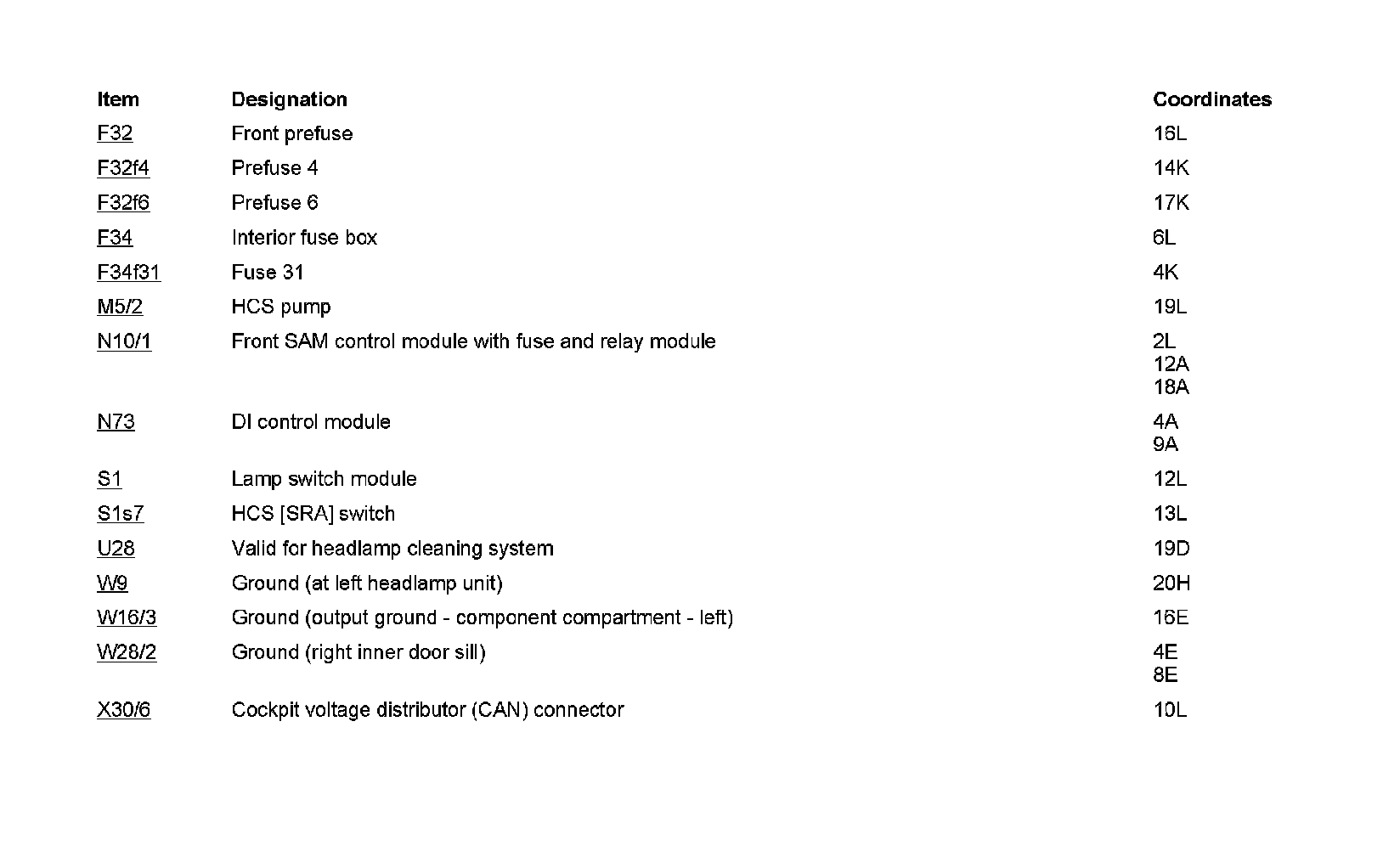

Component Description/Coordinates, F32 To X30/6:







Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
