Camshaft Position Sensor: Service and Repair

AR15.12-P-2143Q Removing/installing/adjusting the position sensor camshaft

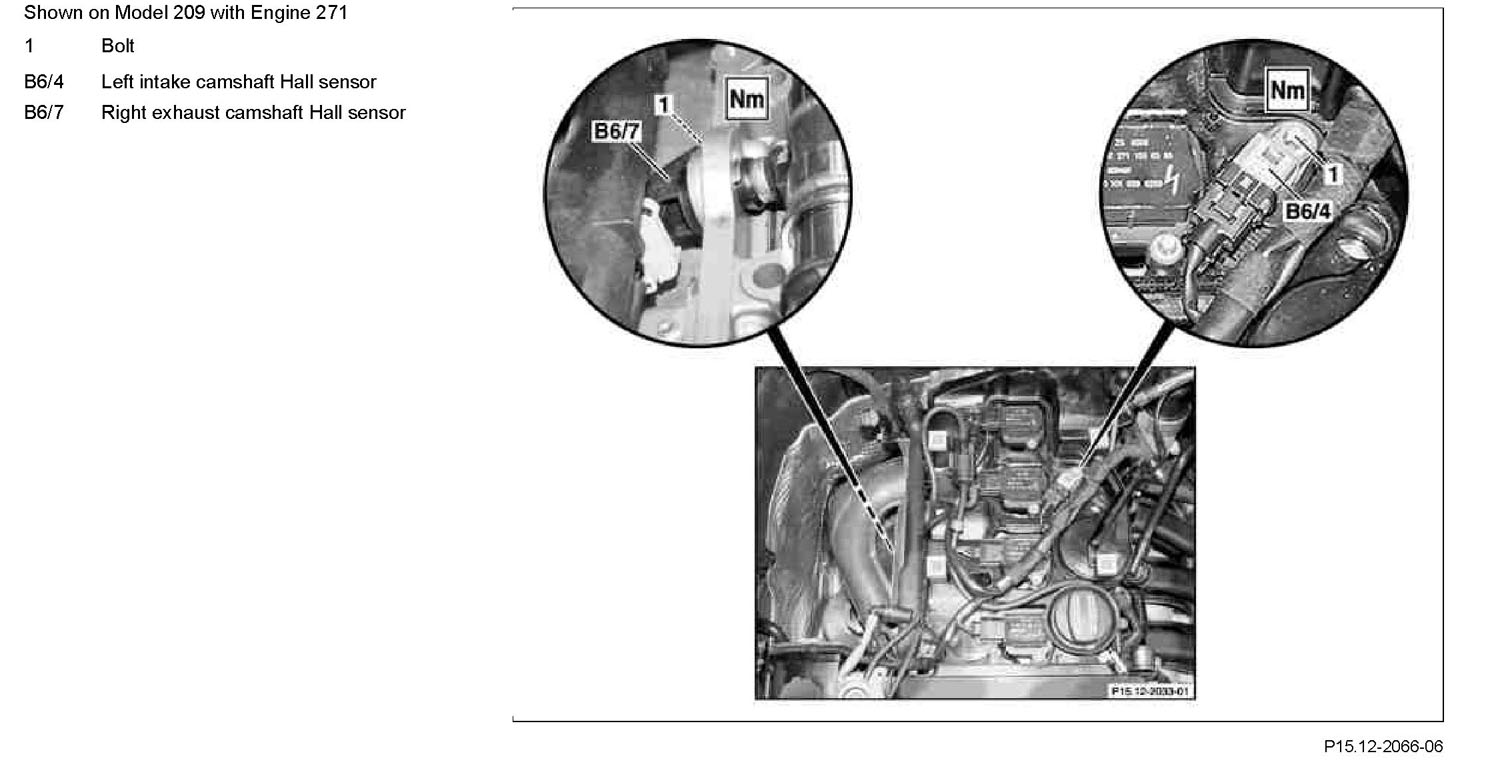

Component Identification:

Modification Notes:

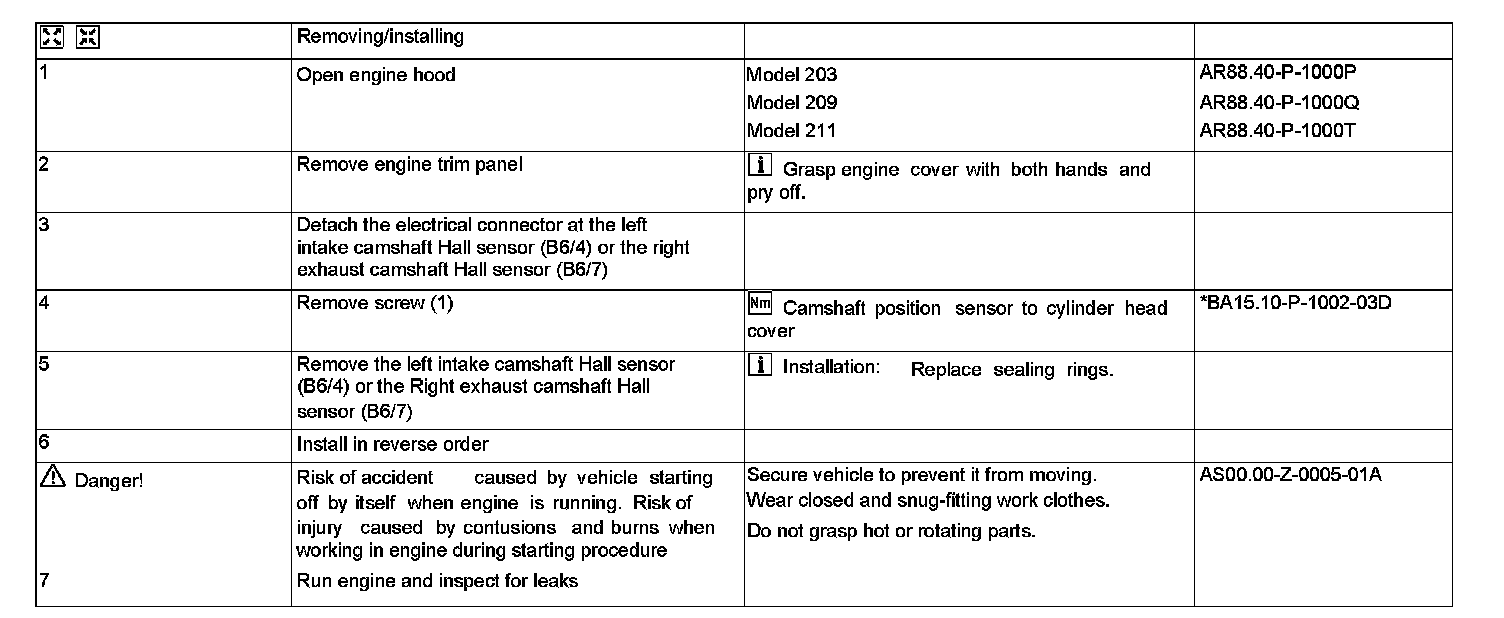

Steps 1-7:

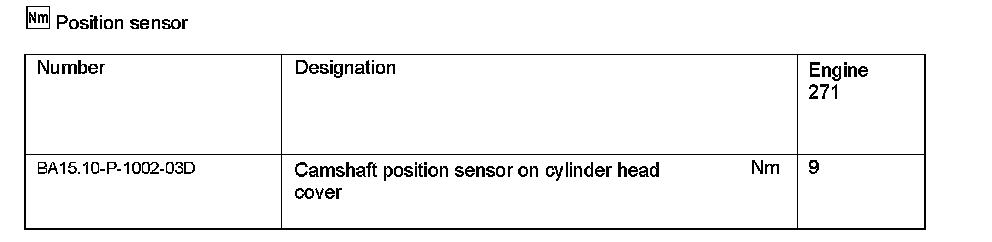

Position Sensor:
