AR07.03-P-1450Q Remove/Install Fuel Distributor With Injection Valves
AR07.03-P-1450Q Remove/Install Fuel Distributor With Injection Valves

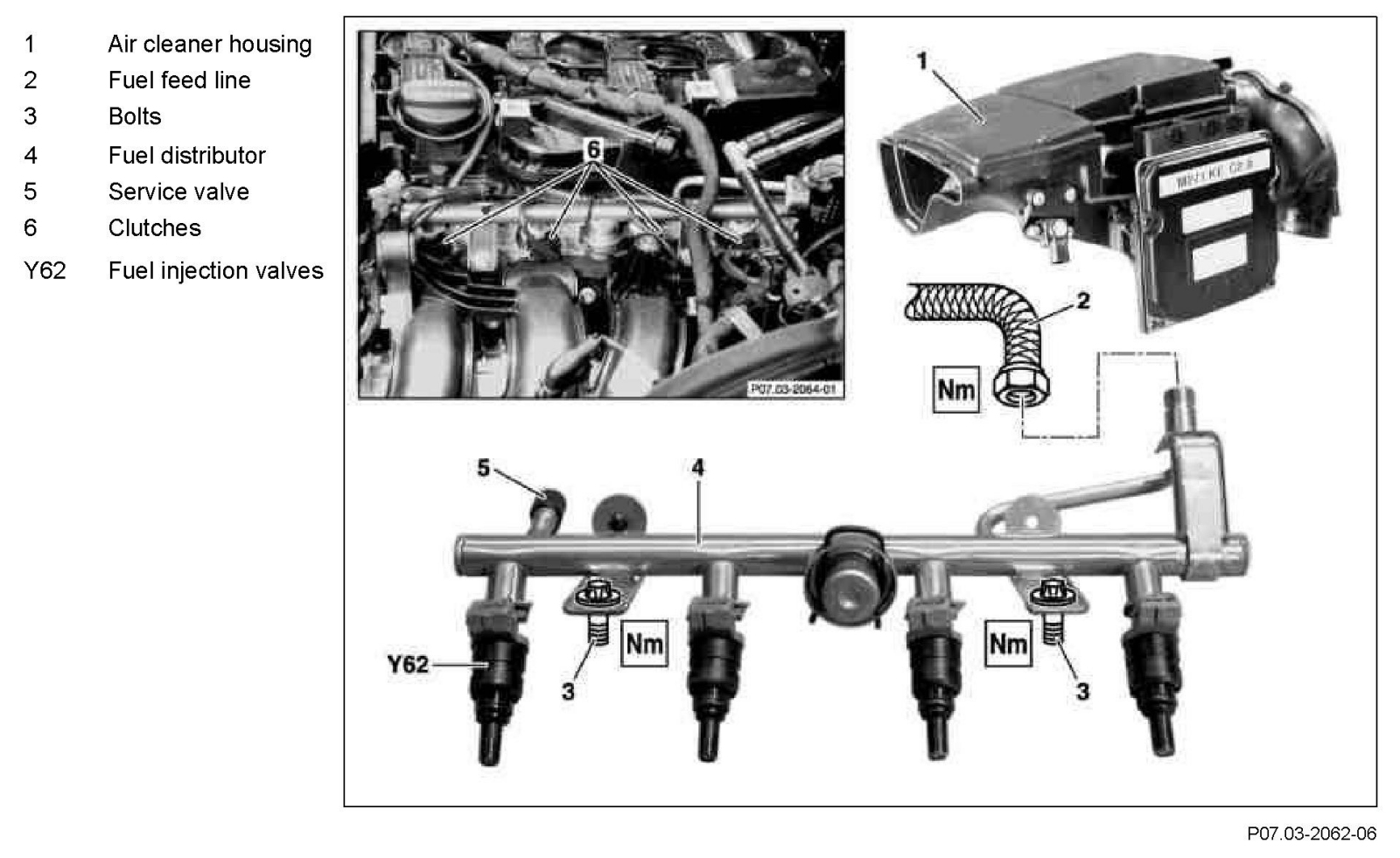

Removing Fuel Distributor With Injection Valves

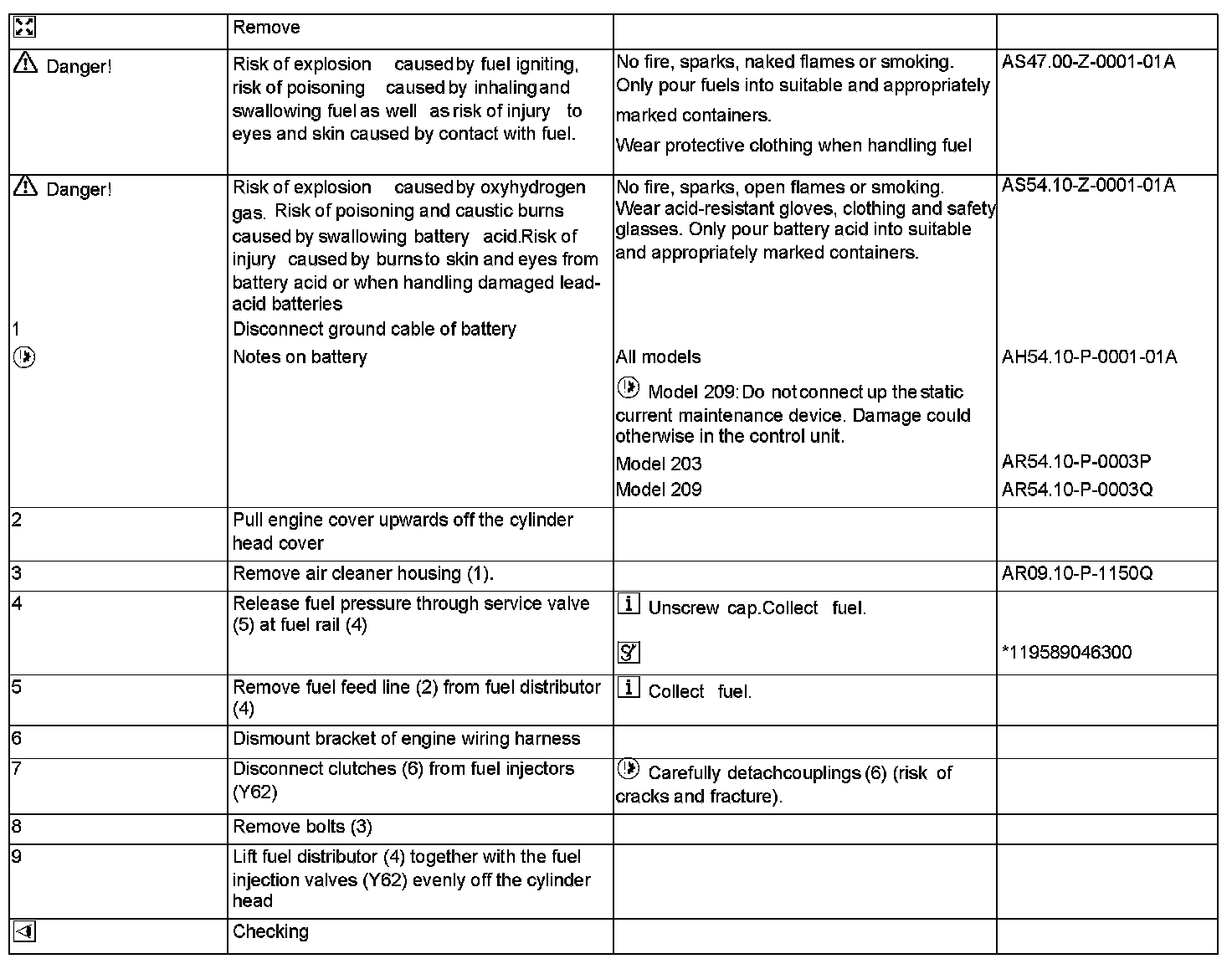

Part 1:

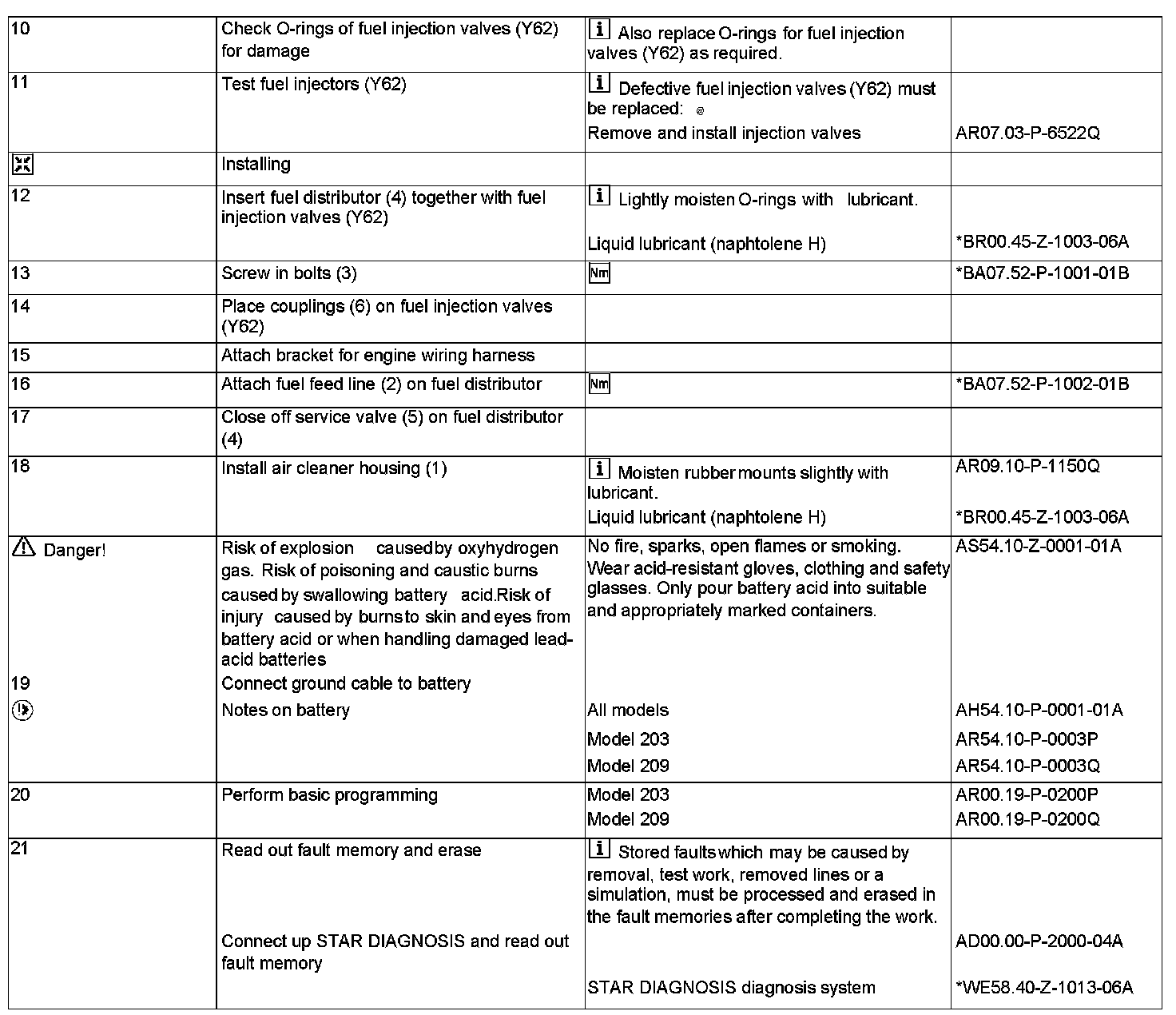

Part 2:

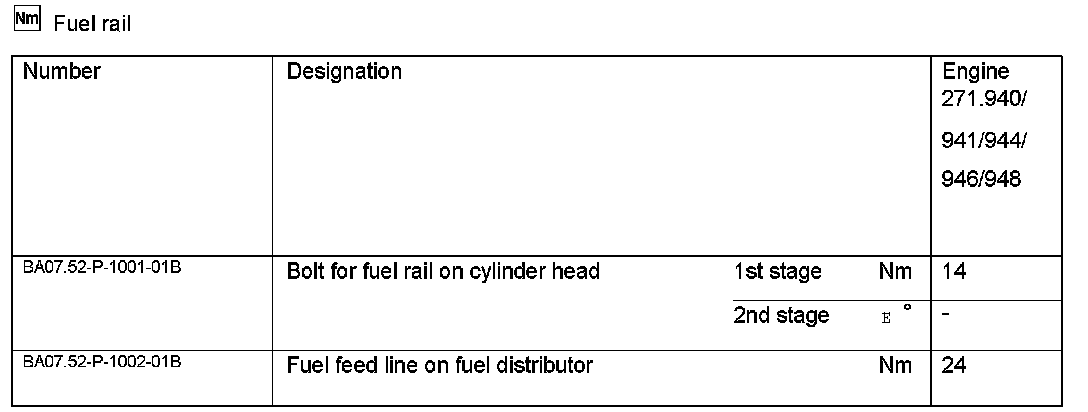

Fuel Rail
Fuel Rail:
