ME-SFI Fuel Injection/Ignition System PE07.61-U-2101FG (Sheet 1)

ME-SFI Fuel Injection and Ignition System Control Module PE07.61-U-2101FG
- ME SIM4

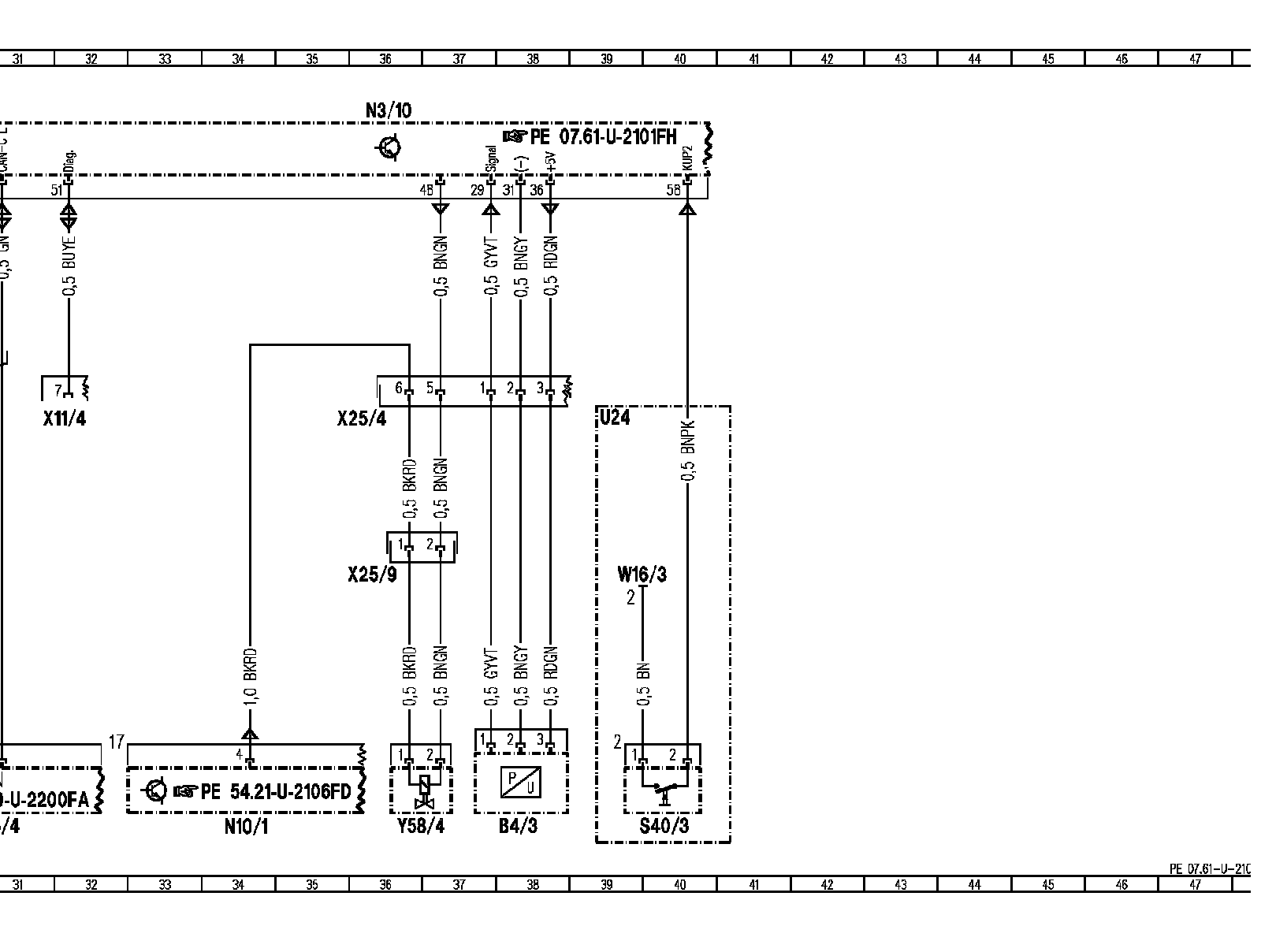

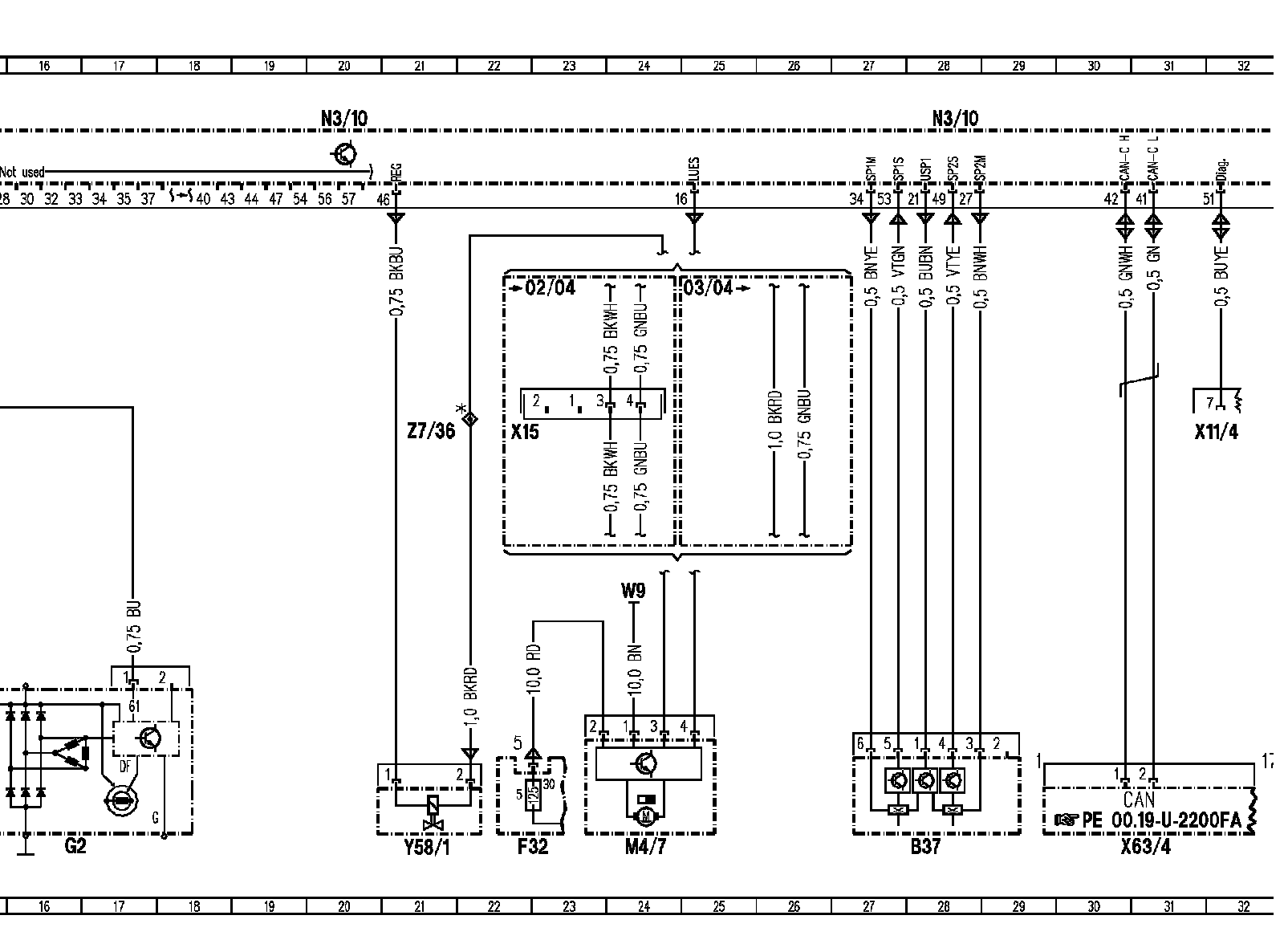

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

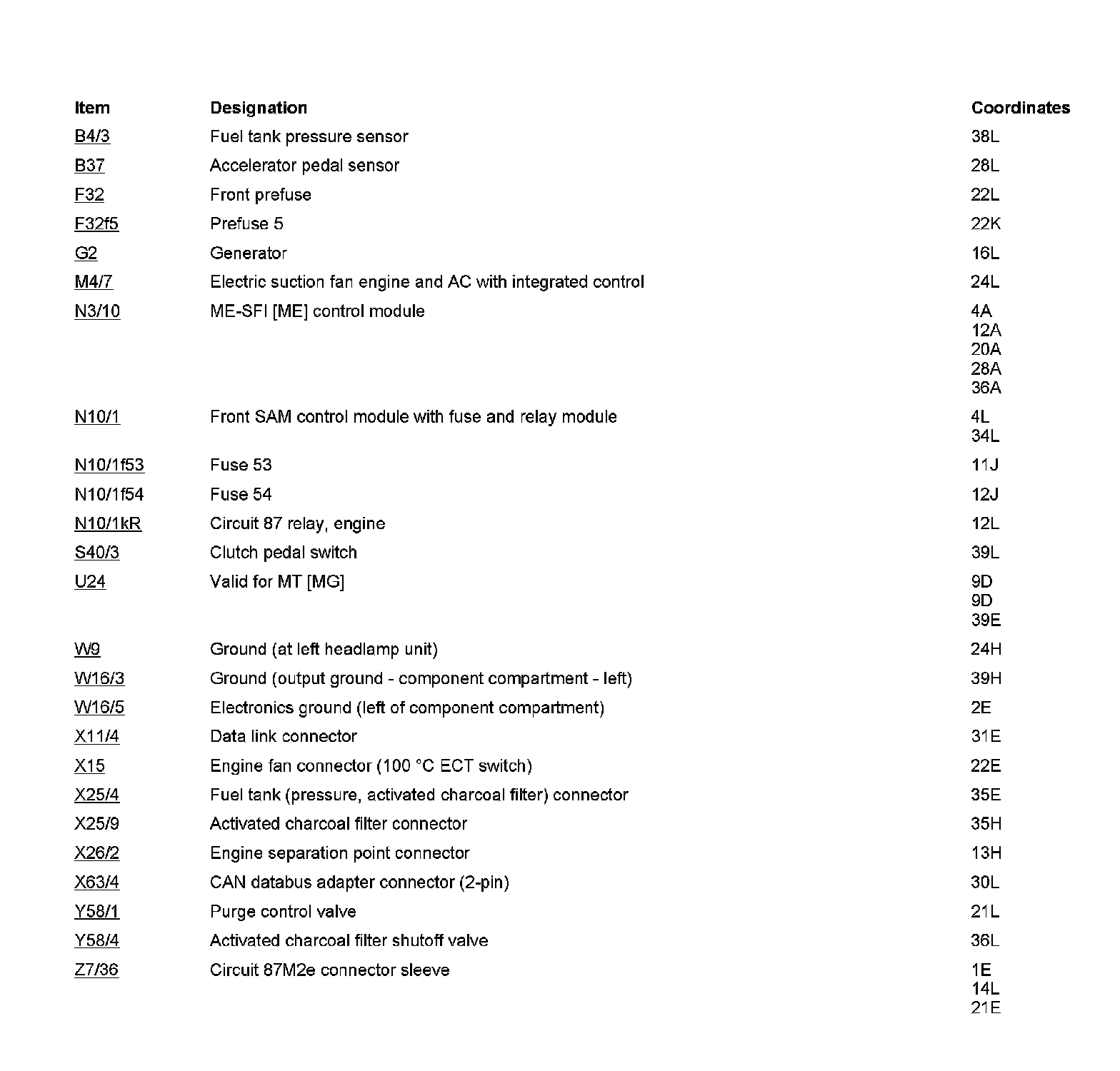

Component Description/coordinates, B4/3 To Z7/36:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
