AR07.03-P-1460-01V Reduce Fuel Pressure Through Service Valve

AR07.03-P-1460-01V Reduce Fuel Pressure Through Service Valve

DANGER: Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel.

No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.

Special Tools:

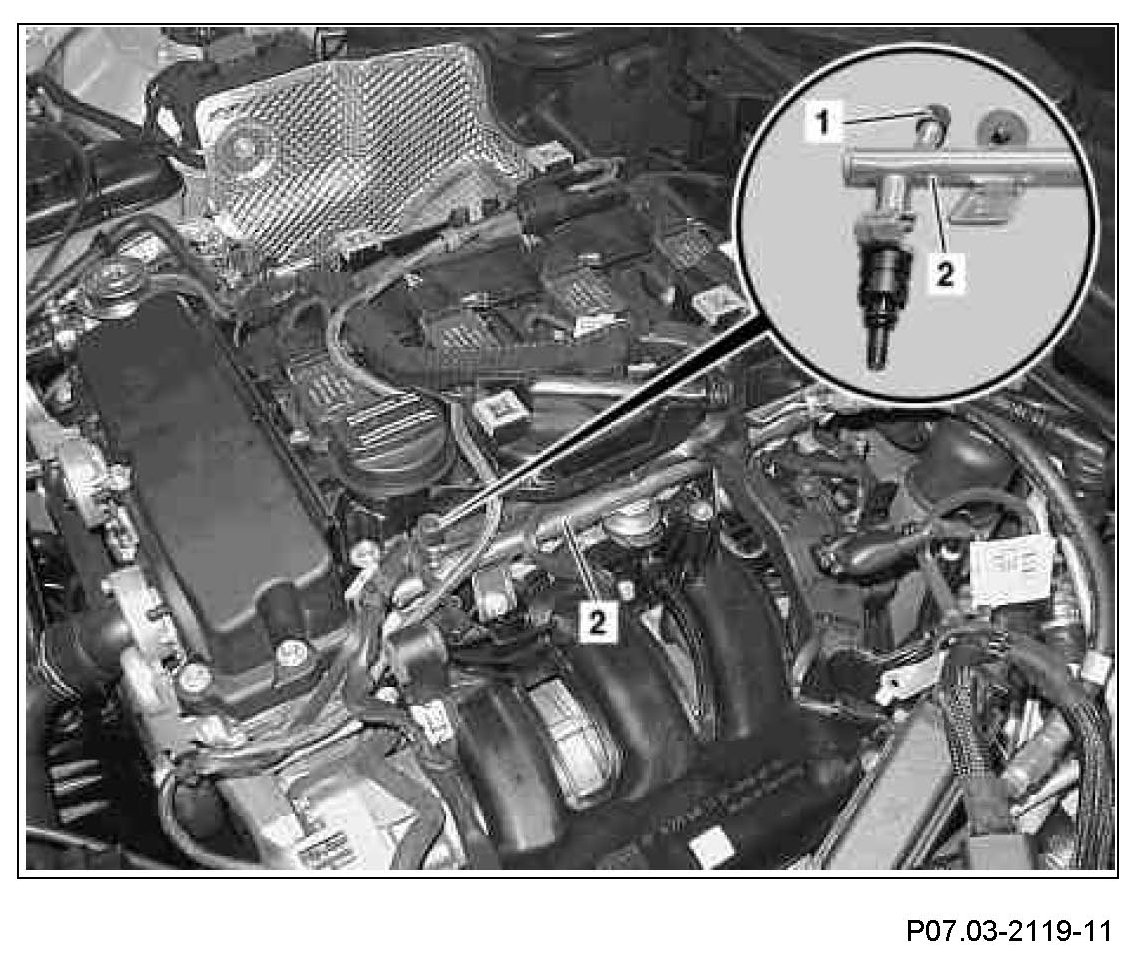

1 Unscrew cap (1) from service valve on fuel distributor (2).

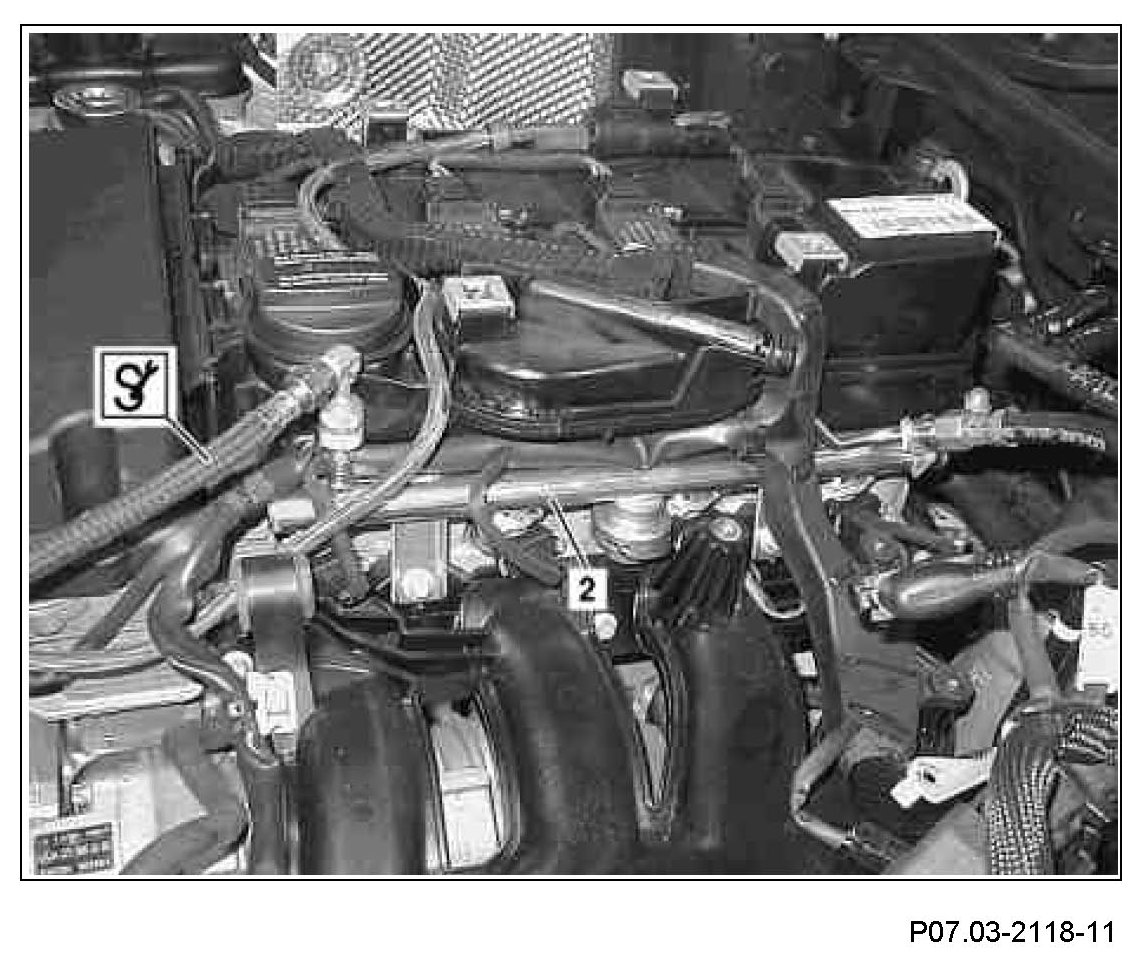

2 Connect pressure hose to service valve on fuel distributor (2).
Allow escaping fuel to drain into a suitable container.
